TOS VARNSDORF WHQ 13 CNC

Show in original language

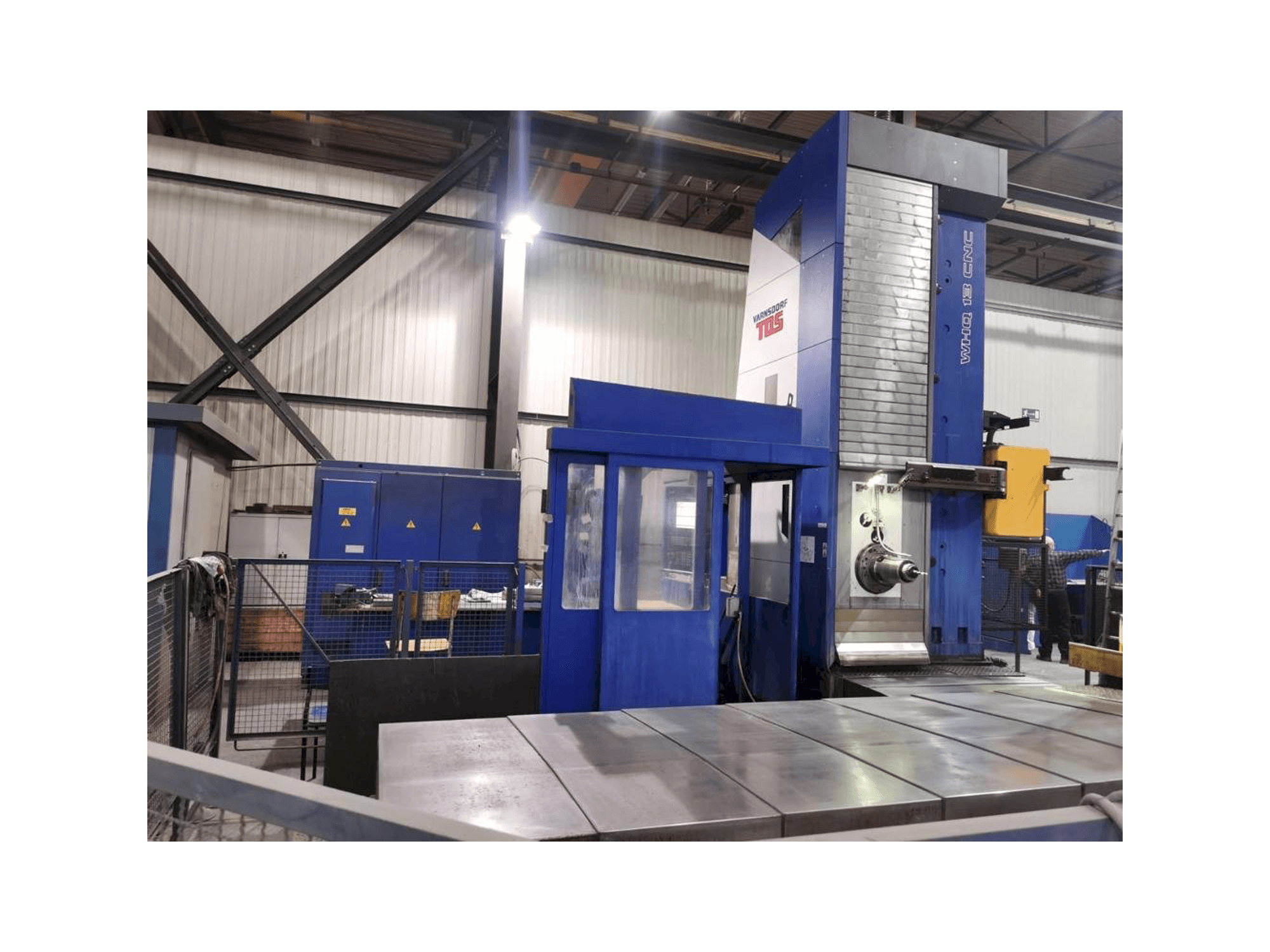

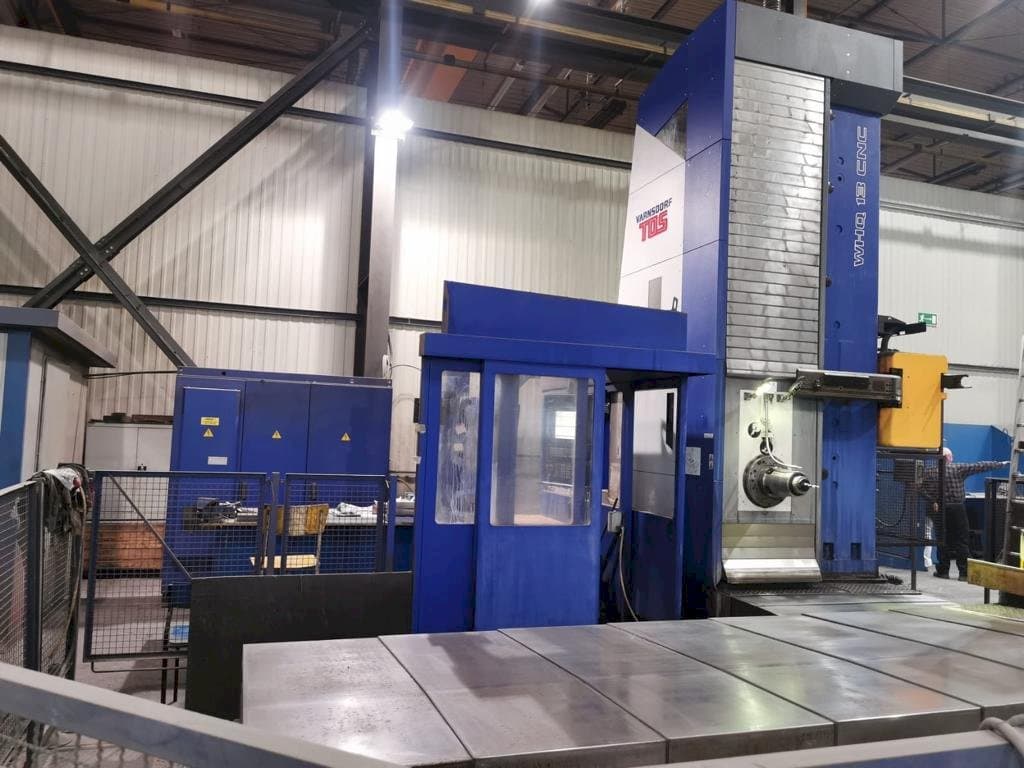

This TOS VARNSDORF WHQ 13 CNC horizontal milling and boring machine was manufactured in Czech Republic in the year 2013. It has been on for 46960 hours, of which 15726 are spindle hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This 5 axis machine can work with a spindle speed range 10-3000 rpm. It is in very good working conditions. This machine has its full documentation available and is ready for tests.

Overview

brand: TOS
year: 2013
MODEL: VARNSDORF WHQ 13 CNC
production hours: 46960
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - TOS VARNSDORF WHQ 13 CNC

General Data

Measurements width: 6950 MM
Measurements depth: 7950 MM
Measurements height: 4995 mm
Machine weight: 38650 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 10-3000 1/MIN
Tool taper: ISO 50
Number of axis: 5

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1600 mm
W-Axis Movement: 800 mm

Workpiece

Workpiece weight: 12000 kg

Table

Outer length: 1800 MM
Outer width: 2500 mm

Turret

Number of tool slots: 40 pcs

Additional Equipment

- measurement probe
- 2 axis head
- cooling through the spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dia. Of the work spindle 130 mm
Qualitative Machine Benefits:
- - Machine in very good working conditions
- - Full documentation available
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
