Quaser UX600/15C 5-axis Vertical Machining Center

Show in original language

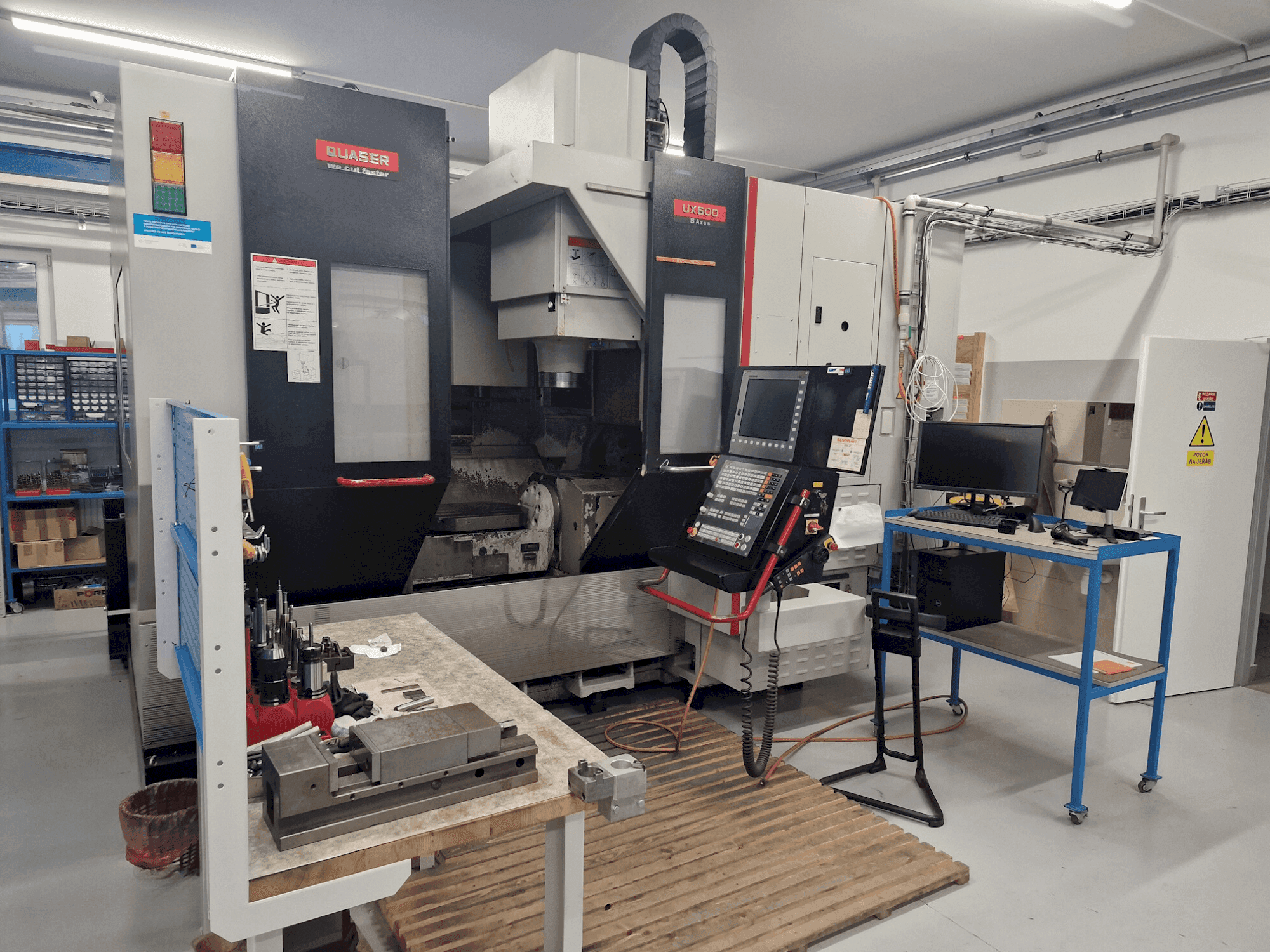

This Quaser UX600/15C Vertical Machining Center was manufactured in the year 2015 in Taiwan. It is a 5 axis machine with direct measurement on all axis operated by a Heidenhain iTNC 530 control. With SK40 and 15000 rpm it is the ideal solution for sophisticated simultaneaous machining.

Overview

brand: Quaser
year: 2015
MODEL: UX600/15C
production hours: 34616
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - Quaser UX600/15C

General Data

Measurements width: 3800 MM
Measurements depth: 4050 MM
Measurements height: 3200 MM
Machine weight: 12100 KG

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/min

Movement

X-AXIS Movement: 885 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 500 MM

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 600 MM
Outer width: 500 MM

Tools

Slots in storage: 48
Max weight: 7 kg
Max tool diameter: 76.2/125 mm
Max tool length: 280 mm
Type of tool holder: SK 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis machine with direct measurement on all axis
- - A axis + 30 / - 120 degrees
- - C axis 350 degrees (continuous)
- - Max. Workpiece diameter 640 mm, max. Workpiece weight 500 kg.

Extra information

- 15617 Spindle Hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
