HAAS - VF 2 SSSI-MIL-HAA-2020-00001

Name: HAAS VF 2 SS
Brand: HAAS
SKU: SI-MIL-HAA-2020-00001
Price: 44000 GBP
Availability: InStock

£ 44,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF 2 SS For sale | gindumac.com

Show in original language

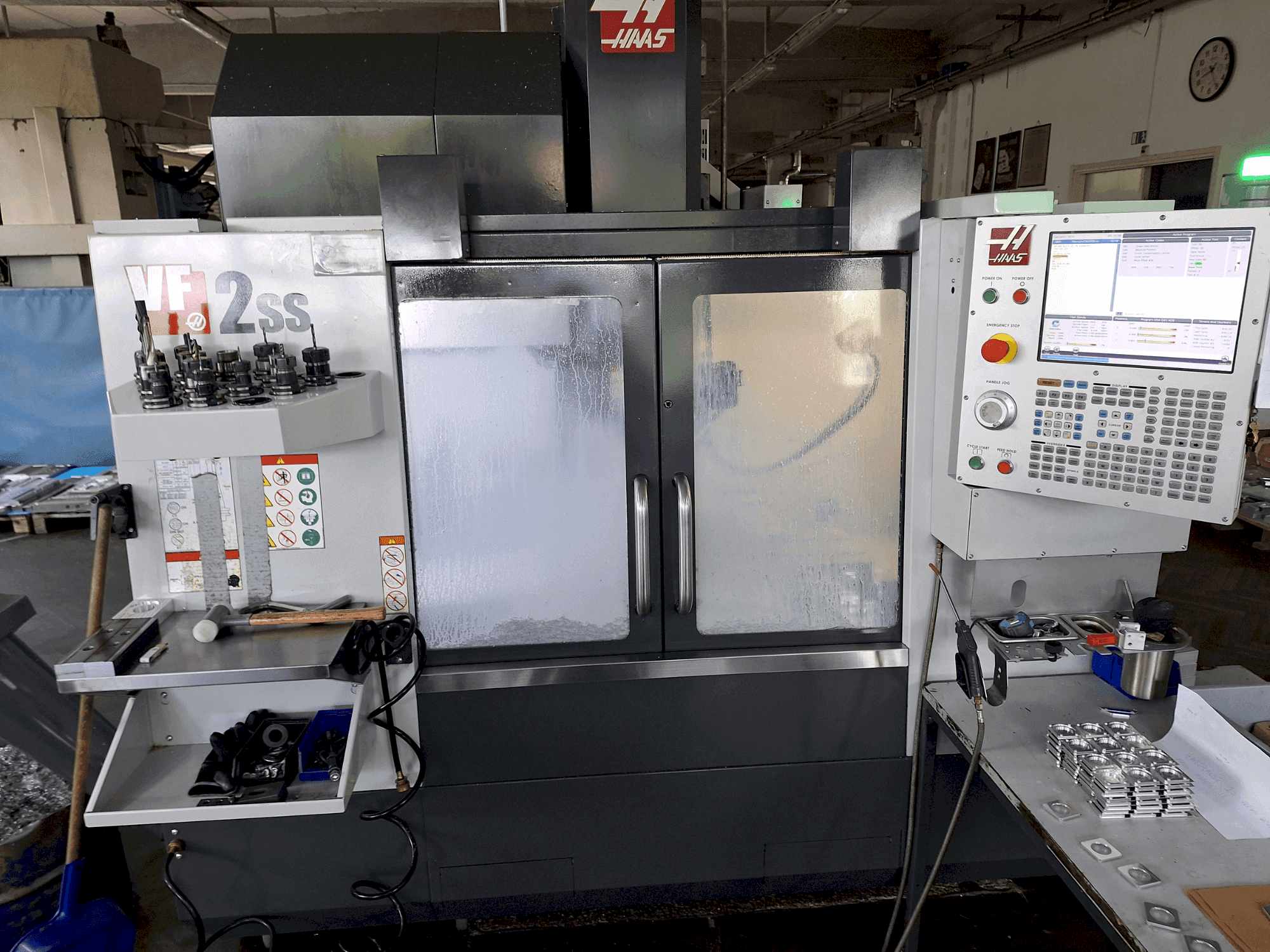

This 3-axis HAAS VF 2 SS milling machine was manufactured in 2020. It features a robust inline direct-drive system, a spindle speed of up to 12000 rpm, and a spindle power of 22.4 kW. The machine accommodates a table load of 680 kg and offers rapid movements on X, Y, and Z axes at 35.6 m/min, enhancing productivity. Ideal for precision milling, the HAAS VF 2 SS machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2020
MODEL: VF 2 SS
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - HAAS VF 2 SS

General Data

Measurements width: 2510 mm
Measurements depth: 2570 mm
Measurements height: 2570 mm
Machine weight: 3539 kg

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Tool taper: CT40, BT40, HSK-A63
Working current: Full Load Amps (3 Phase) - Low: 70 A; High: 35 A
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 680 kg

Table

Outer length: 914 mm
Outer width: 356 mm
TSlots size: 15.90 mm to 16.00 mm
Number of tslots: 3
Distance between: 125 mm

Additional Equipment

- Tool Changer: Type: SMTC, Capacity: 30+1, Max Tool Diameter (full): 64 mm, Max Tool Length (from gage line): 279 mm, Max Tool Weight: 5.4 kg
- Coolant Capacity: 208 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Height adjustment: spindle nose to table (max): 610 mm; (min): 102 mm
- - Air requirements: air required: 113 l/min @ 6. 9 bar, air pressure min: 5. 5 bar
- - Electrical specification: input ac voltage (3 phase) - low: 220 vac; high: 440 vac

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
