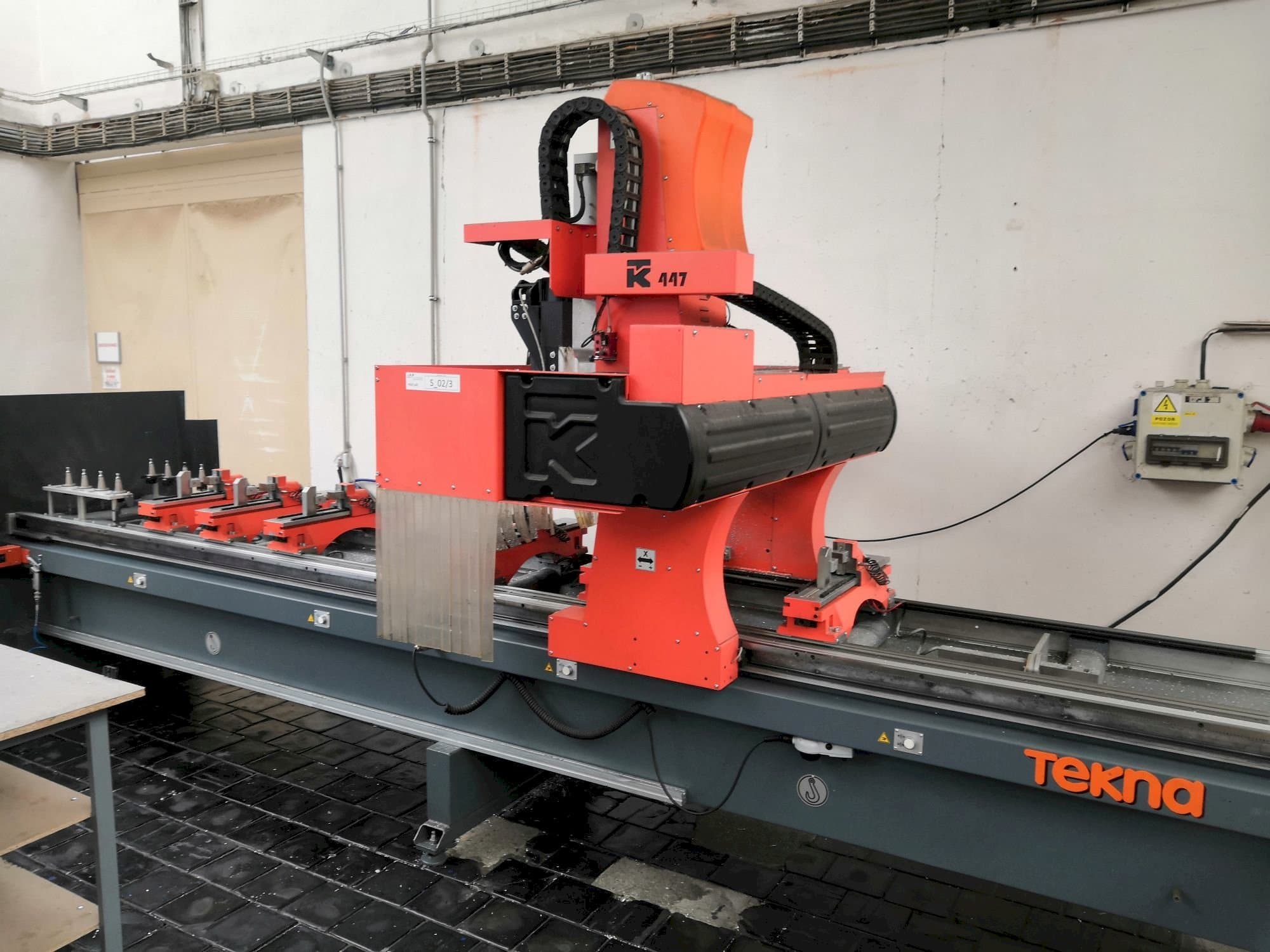

Tekna TK447/4 Vertical Machining center

Show in original language

This Tekna TK447/4 Vertical Machining center was made in Italy in the year 2013. It is operated through a Fagor control unit. This machine works with a spindle speed up to 18000 rpm. This is a 4-axis portal-type CNC machining center designed for drilling, milling and threading up to the size of M10(*) profiles made of aluminum, PVC, light alloys and thin-walled steel (up to 5 mm). It is in very good condition.

Overview

brand: Tekna
year: 2013
MODEL: TK447/4
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - Tekna TK447/4

General Data

Machine weight: 1710 KG

Control Unit

Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 9 kW
Number of axis: 4

Movement

X-AXIS Movement: 4000 mm

Tools

Type of tool holder: ISO 30

Media

Main electronic connection: 400V / 60Hz
Air pressure: 6 - 7 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - C-axis: +/- 90 degrees
- - C-axis indexation: 0. 01 degress
- - Max. Feedrate x-axis: 80 m/min
- - Max. Feedrate y-axis: 30 m/min
- - Max. Feedrate z-axis: 30 m/min
- - X-axis (longitudinal axis): 4000 mm • y-axis (transverse axis): 825 mm • z-axis (vertical axis): 400 mm • ° axis positioning accuracy: ±0. 1 mm
Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition
- - Is a 4-axis portal-type cnc machining center designed for drilling, milling and threading up to the size of m10(*) profiles made of aluminum, pvc, light alloys and thin-walled steel (up to 5 mm).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
