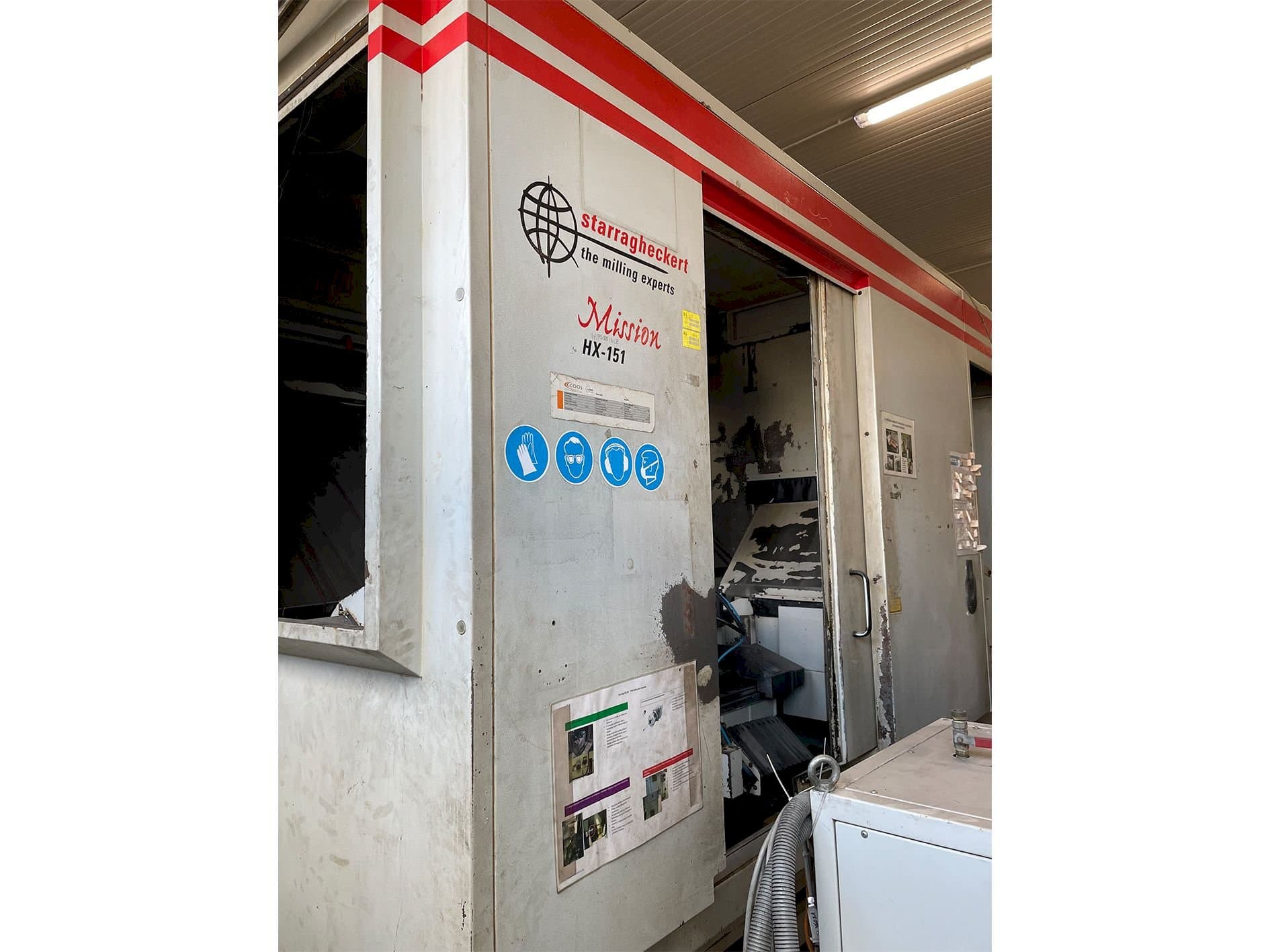

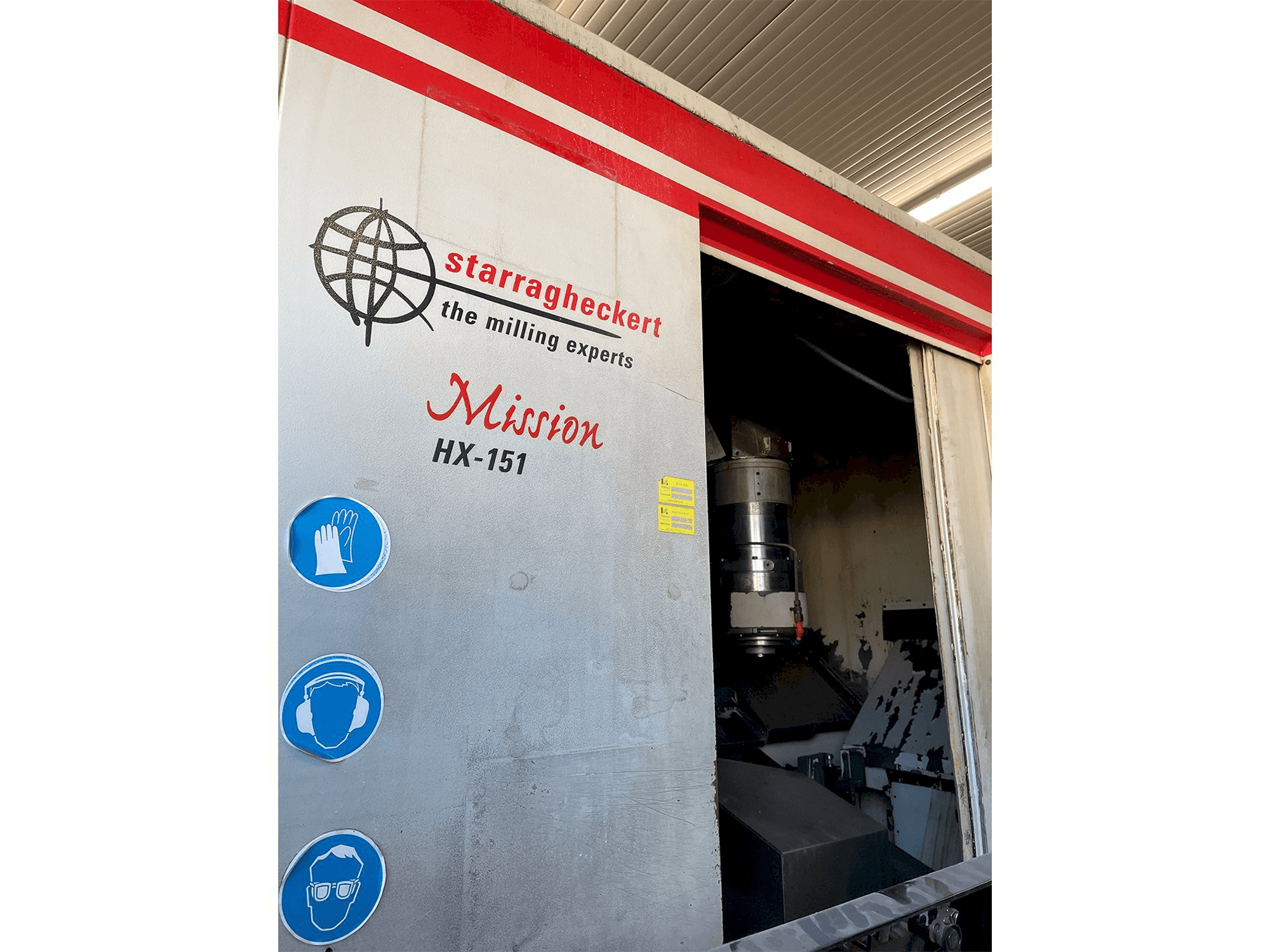

Starrag HX 151 Milling Machine Center

Show in original language

This Starrag HX 151 Milling Machine Center manufactured in Germany in the year 2004. Operated through a Siemens 840D control unit. This machine can work with a spindle speed up to 15000 rpm and a blade length max of 700 mm.

Overview

brand: Starrag
year: 2004
MODEL: HX 151
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Starrag HX 151

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 27 kW
Tool taper: HSK A63

Movement

X-AXIS Movement: 1200 mm
X-AXIS Working Feed: 10 m/min
X-AXIS Rapid traverse: 25 m/min
Y-AXIS Movement: 390 mm
Y-AXIS Working Feed: 10 m/min
Y-AXIS Rapid traverse: 25 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 10 m/min
Z-AXIS Rapid traverse: 25 m/min
A-AXIS Working Feed: 120 u/min
A-AXIS Rapid traverse: 120 u/min
B-AXIS Movement: +/-50º MM
B-AXIS Working Feed: 30 u/min
B-AXIS Rapid traverse: 30 u/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Blade length max 700 mm
- - Swivel rotation diameter max 300 mm
- - Degree of fredom pivoted on 1-axis
- - Angular speed 2900 rpm
- - Torque 85 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
