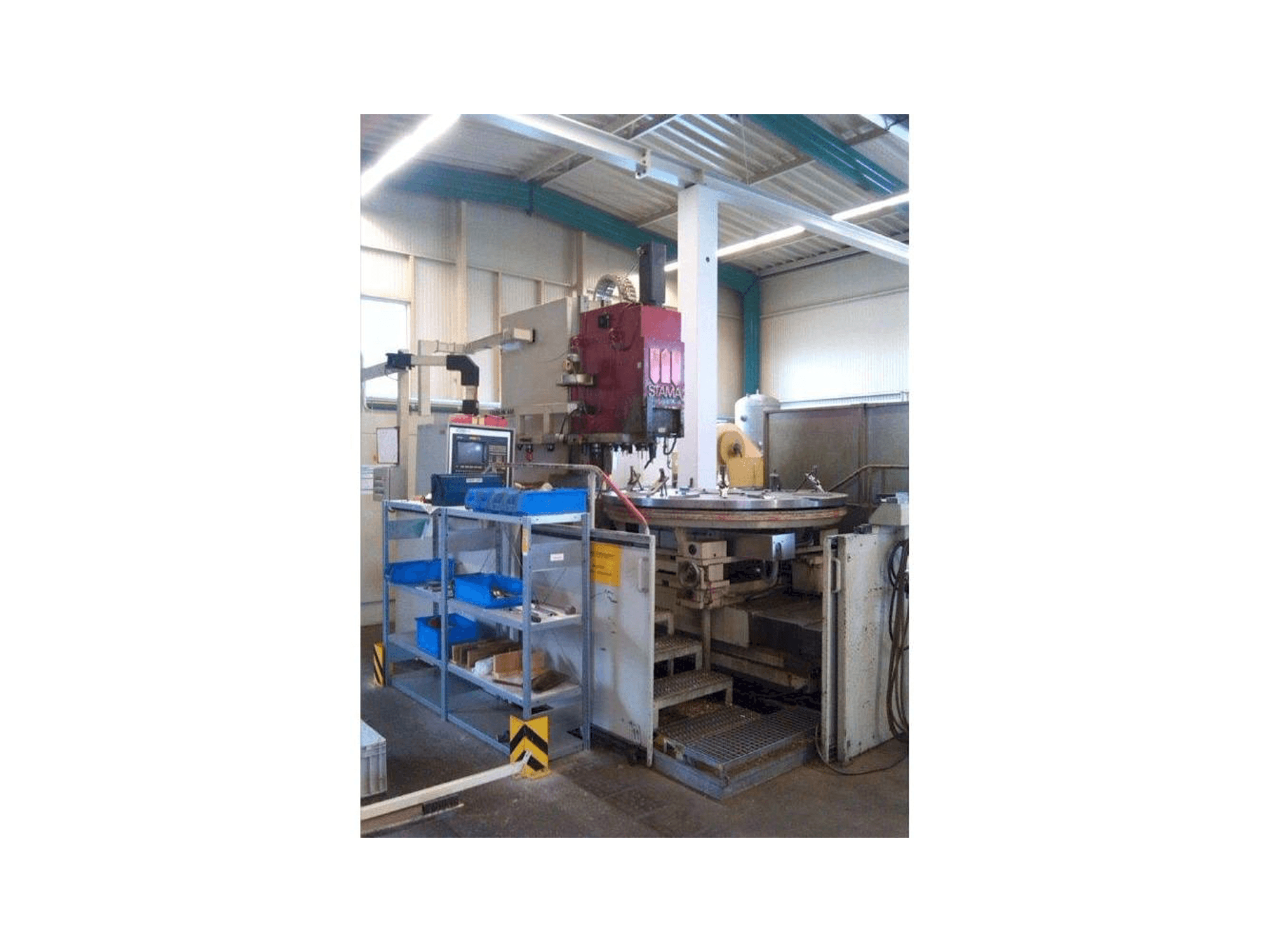

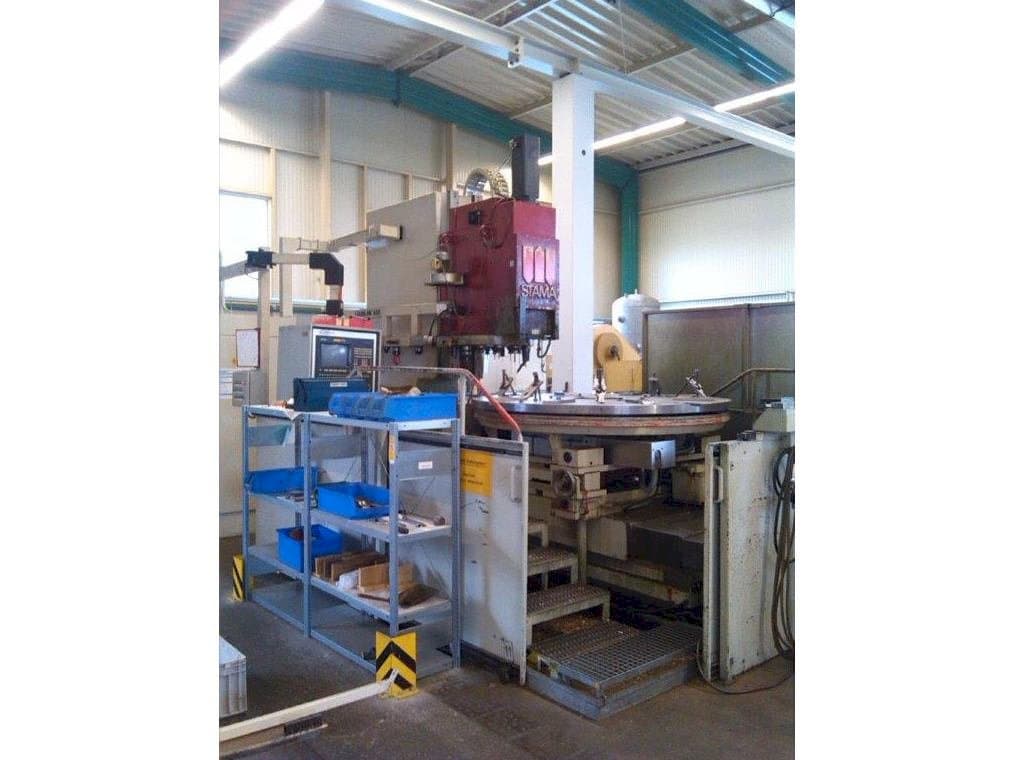

STAMA MC 430- GÜ Milling machine

Show in original language

This STAMA MC 430- GÜ Milling machine was manufactured in the year 2015. It is equipped with a Siemens 840 D control unit. The machine has a spindle speed of 45-3600 rpm.

Overview

brand: STAMA
year: 2015
MODEL: MC 430- GÜ
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - STAMA MC 430- GÜ

General Data

Machine weight: 12300 kg

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 45-3600 1/MIN
Spindle motor power: 10 kW

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose coordinate table: 150-950 mm
- - Coordinate table - clamping surface: 600 - 1250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
