Sodick AQ327L Erosion machine

Show in original language

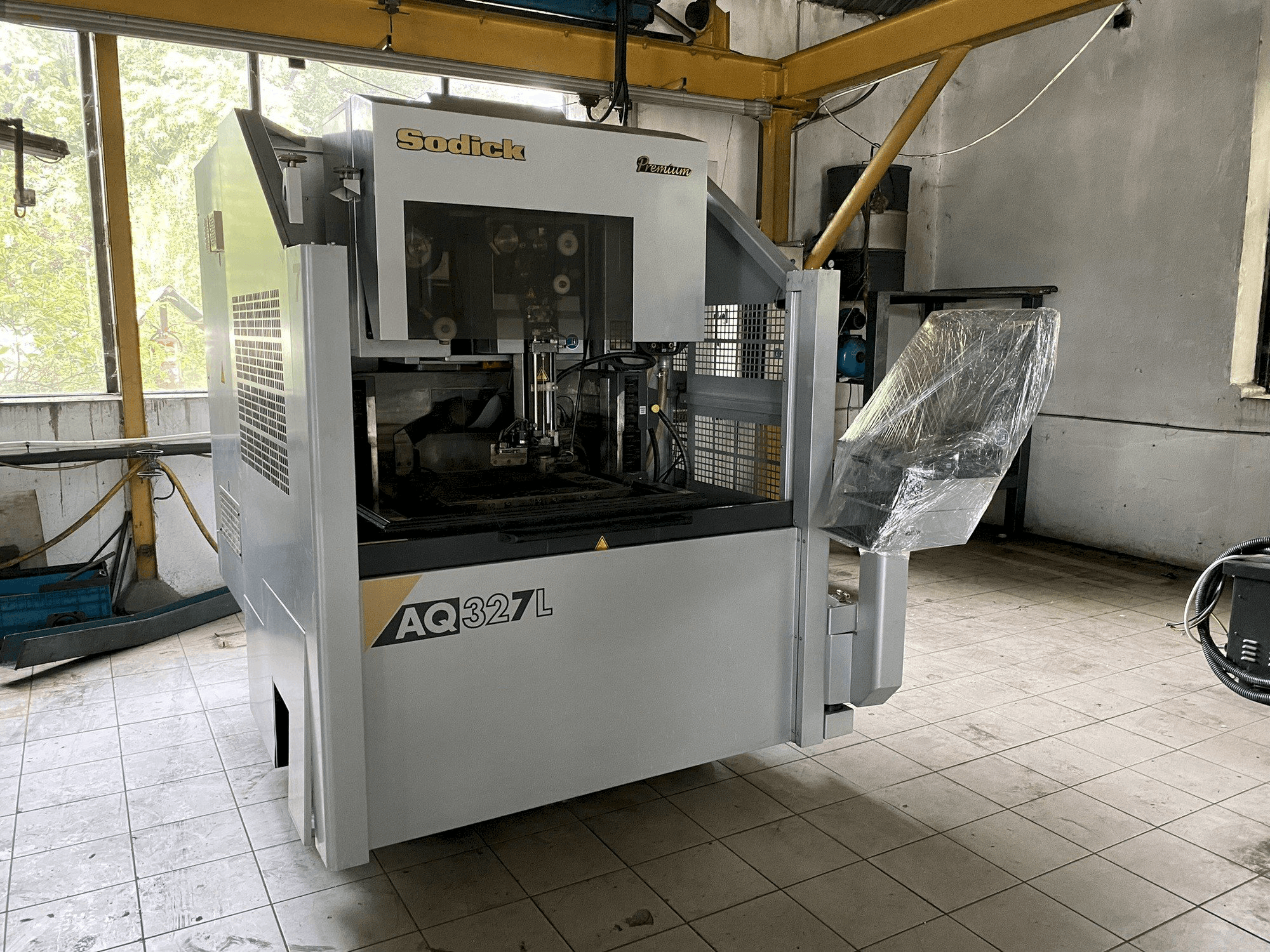

This Sodick AQ327L Erosion machine was manufactured in the year 2006. It is equipped with a Sodick SQ33W control unit.

Overview

brand: Sodick
year: 2006
MODEL: AQ327L
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
availability: Sold
control unit brand: SODICK

Technical Information - Sodick AQ327L

General Data

Measurements width: 2225 mm
Measurements depth: 2395 mm
Measurements height: 2220 mm
Machine weight: 3950 kg

Control Unit

Brand: SODICK
Model: LQ33W

Movement

X-AXIS Movement: 370 mm
Y-AXIS Movement: 270 mm
Z-AXIS Movement: 250 mm

Workpiece

Workpiece weight: 500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 570 x 420 x 240 (flushina) mm max. Workoiece dimensions (w x d x h) 570 y 420 x 230 (submerged) mm
- - Work tank size (w x d) 850 x 610 mm
- - U axis y v axis travel 120 x120 mm
- - Taper angle (workpiece thickness of 100mm) +25°
- - Wire diameter 0. 15-0. 30 mm
- - Wire feed speed (max): 420 mm/sec
- - Wire tension: 3- 23 n
- - Distance from floor to table top: 995 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
