Makino - EU64DE-EDM-MAK-1999-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAKINO EU64 EDM

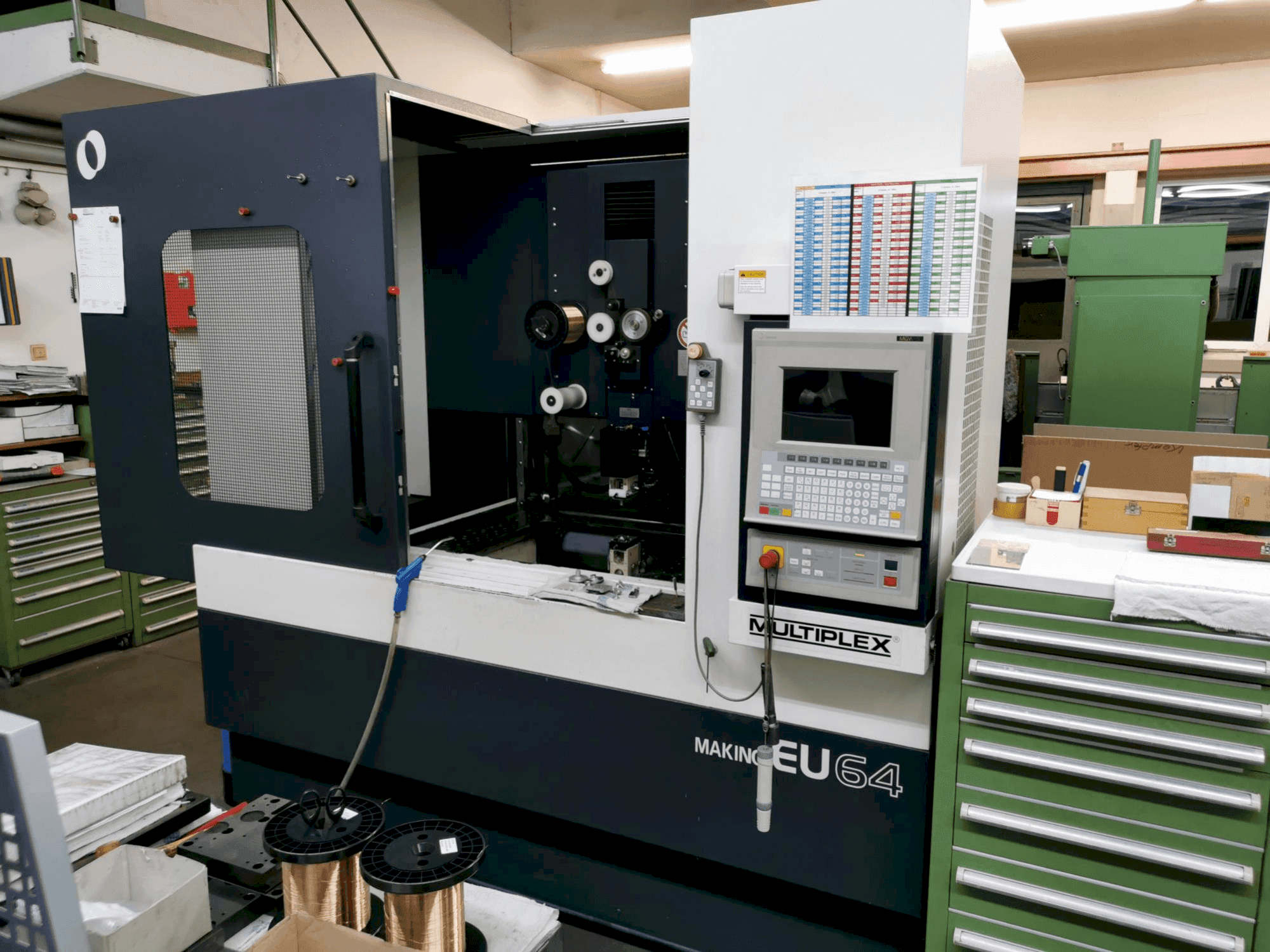

This MAKINO EU64 Erosion machines machine was manufactured in 1999 in Japan. It is operated through a MAKINO MGW-N control unit. This 5 axis machine can work with a workpiece weight 1500 kg.
Overview
- brand: Makino
- year: 1999
- MODEL: EU64
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Immediately
- control unit brand: MAKINO
Technical Information - Makino EU64
General Data
- Measurements width: 2230 mm
- Measurements depth: 2215 mm
- Measurements height: 2236 mm
- Machine weight: 5400 KG
Control Unit
- Brand: MAKINO
- Model: MGW-N
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 600 MM
- Y-AXIS Movement: 400 MM
- Z-AXIS Movement: 260 MM
Additional Information
- Technical Machine Benefits:
- - U-axis (upper head longitudinal) +/- 75mm
- - V-axis (upper head ease) +/- 75mm
- - Max. Loading mass 1500kg
- - Work tank size 1020x836mm
- - Work tank 470l
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
