- ➤ Used Sodick AQ300L - Wire EDM For Sale | gindumac.com

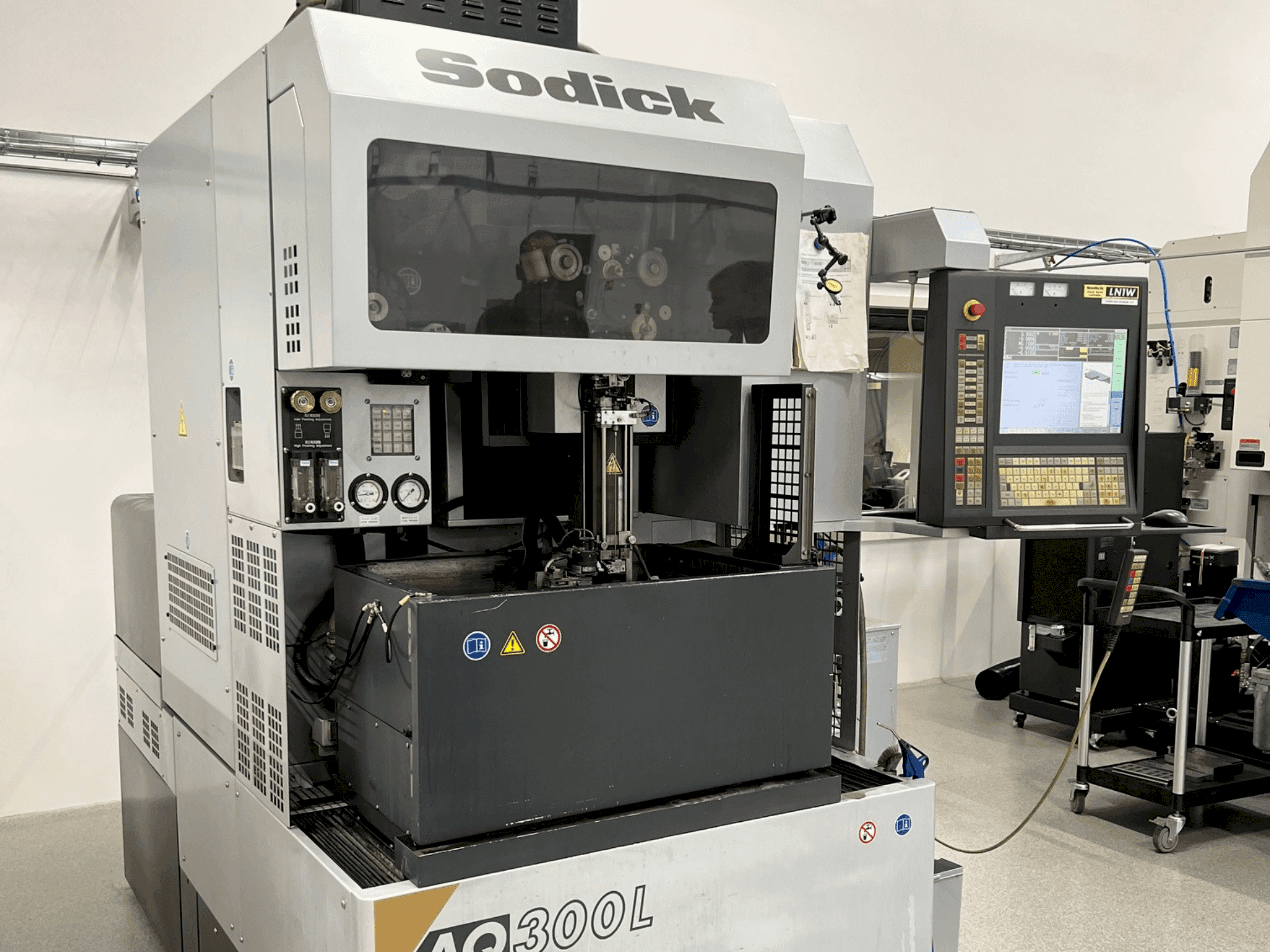

This 5-axis Sodick AQ300L wire EDM machine was manufactured in 2007. It features a travel range of 300 mm x 200 mm on the X and Y axes, and a Z-axis travel of 200 mm. The machine can handle workpieces up to 300 kg and offers a taper angle of ±20°. Ideal for precision machining with wire diameters ranging from 0.15 to 0.3 mm. If you are looking to get high-quality EDM capabilities, consider the Sodick AQ300L machine we have for sale. Contact us for more information.
Overview
- brand: Sodick
- year: 2007
- MODEL: AQ300L
- application type: EDM
- Location: Denmark
- machine type: Wire EDM Machine
- availability: Immediately
Technical Information - Sodick AQ300L
General Data
- Measurements width: 2400 mm
- Measurements depth: 1300 mm
- Measurements height: 2210 mm
- Machine weight: 2700 kg
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 300 mm
- Y-AXIS Movement: 200 mm
- Z-AXIS Movement: 200 mm
- V-Axis Movement: 80 mm
- U-Axis Movement: 80 mm
Workpiece
- Workpiece weight: 300 kg
Additional Equipment
- - Electric Tank External Dimensions (W x D x H): 1300 mm x 900 mm x 2186 mm
- - Electric Tank Weight (Empty): 550 kg
- - Electric Tank Capacity: 380 liters
- - Electric Tank Deionizer: Ion-exchange resin (10-liter type)
- - Electric Tank Filtering System: 2 replaceable paper filters (internal-pressure type)
Additional Information
- Technical Machine Benefits:
- - Maximum height of workpiece: 200 mm (general), 180 mm (submerge)
- - Work table size (w x d): 536 mm x 337 mm
- - Work tank dimensions (w x d): 750 mm x 500 mm
- - Distance from floor to table top: 1000 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
