- SODICK AQ327L Wire cut EDM machine

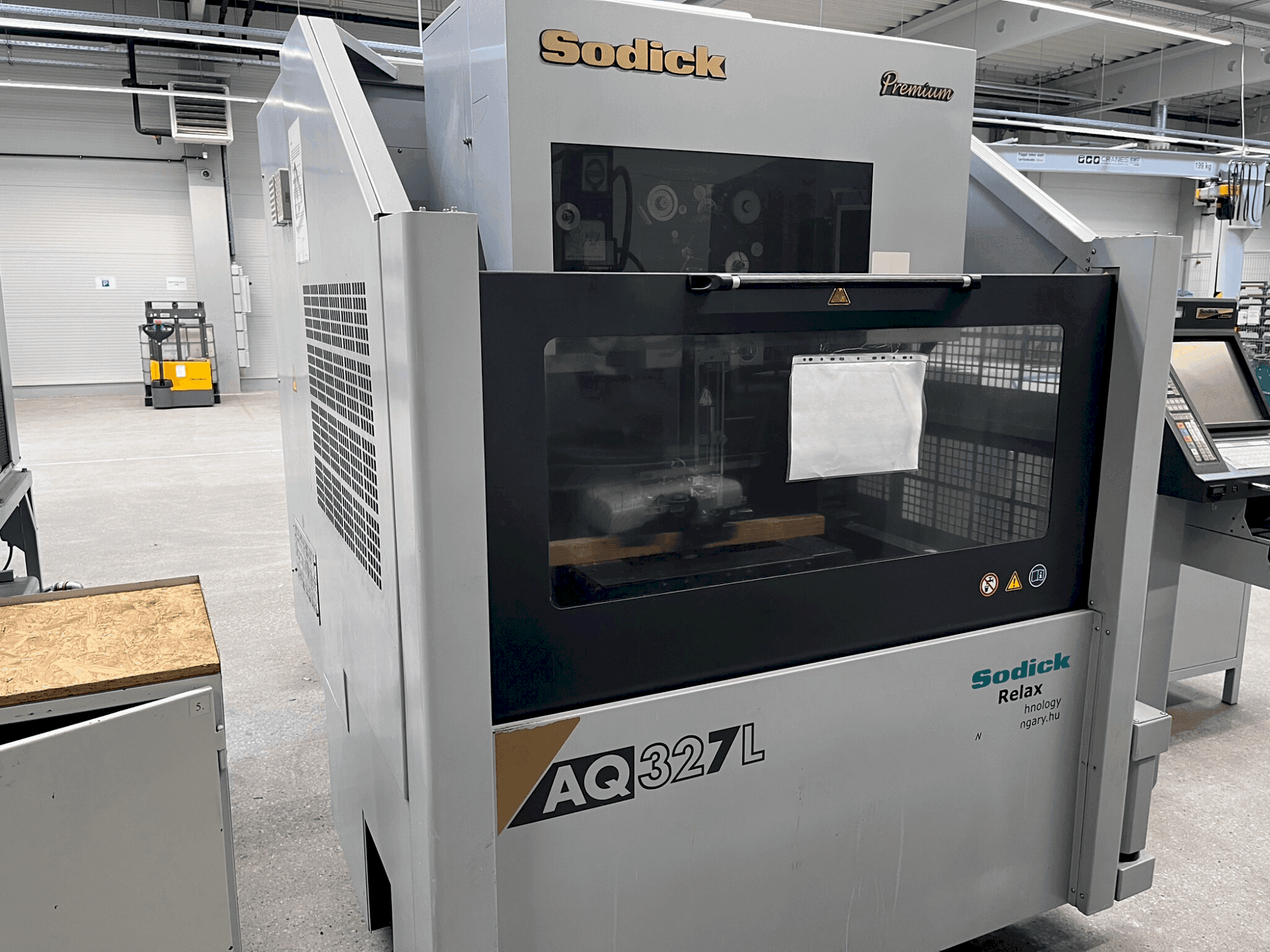

This SODICK AQ327L Wire cut EDM machine was manufactured in 2006. It is equipped with a SODICK LQ33W control and has 3 axes with axis travel (X x Y x Z) 370 x 270 x 250 mm. The machine has a work tank inner size of 820 x 610 mm and operates with a wire diameter of Ø 0.15 - Ø 0.3 mm.
Overview
- brand: Sodick
- year: 2006
- MODEL: AQ327L
- application type: EDM
- Location: Hungary
- machine type: Erosion Machine
- availability: Sold
- control unit brand: SODICK
Technical Information - Sodick AQ327L
General Data
- Measurements width: 2225 MM
- Measurements depth: 2395 MM
- Measurements height: 2220 MM
- Machine weight: 3950 kg
Control Unit
- Brand: SODICK
- Model: LQ33W
Movement
- X-AXIS Movement: 370 MM
- Y-AXIS Movement: 270 MM
- Z-AXIS Movement: 250 MM
Additional Information
- Technical Machine Benefits:
- - Work tank size: 850 x 610 mm
- - Max. Workpiece dimensions (w x d x h) 570 x 420 x 240 (flushing) mm // 570 x 420 x 230 (submerged) mm
- - Max. Workpiece weight: 500 kg
- - U axis x v axis travel 120 x120 mm
- - Taper angle (workpiece thickness of 100mm) ±25°
- - Wire diameter 0. 15~0. 30#1 mm
- - Wire feed speed (max) 420 mm/sec
- - Wire tension 3~23 n
- - Distance from floor to table top 995 mm
- - Total power input normal: 10,5 kva
- - Sodick's pioneering advancements in core technology have propelled them to achieve unparalleled feats in high-speed precision machining, epitomized by their groundbreaking "7 series". Extensive simulations conducted through state-of-the-art 3-D design systems have underscored the advantages of Sodick's innovative design approach, leveraging ceramics for critical machine tool components. Nonetheless, Sodick remains steadfast in its commitment to time-tested methodologies, such as meticulous scraping of all mating surfaces, to optimize the inherent robustness of the machine's foundational structure. The cutting-edge electric discharge control system orchestrates machine tool operations with precision, while the incorporation of linear motors on each axis ensures unparalleled responsiveness.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
