RMT Kompakt 8 Vertical Machining Center

Show in original language

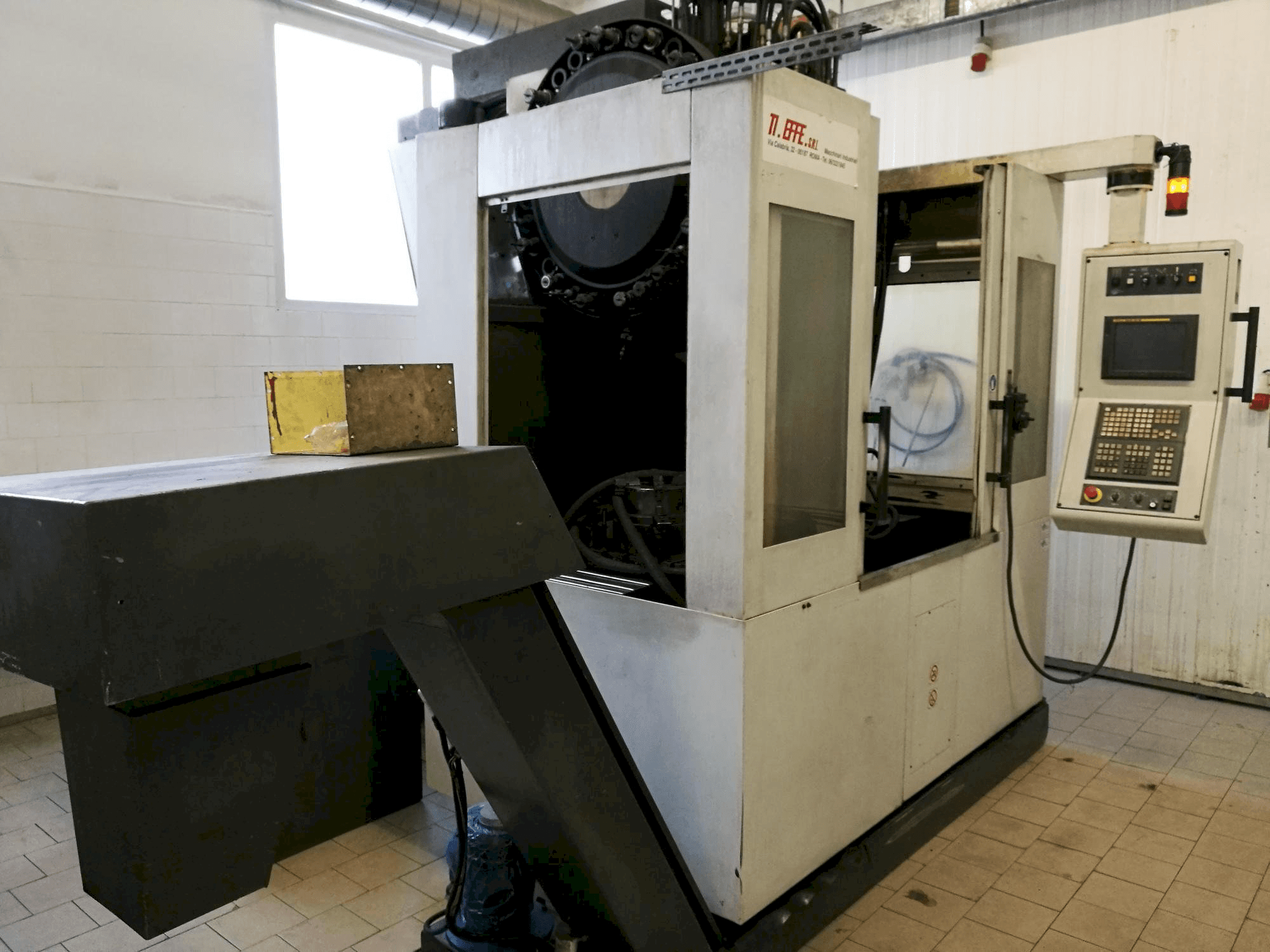

This RMT Kompakt 8 Vertical Machining Center was built in 2004 in Italy. Equipped with a FANUC 21i control unit, this machine can operate with a spindle speed up to 10000 rpm.

Overview

brand: RMT
year: 2004
MODEL: Kompakt 8
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - RMT Kompakt 8

General Data

Measurements width: 2800 mm
Measurements depth: 2400 mm
Measurements height: 2100 mm
Machine weight: 7500 kg

Control Unit

Brand: FANUC
Model: 21i

Main drive

Number of spindles: 1
Spindle speed range: 10000 rpm 1/MIN

Movement

X-AXIS Movement: 770 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 670 mm

Table

Outer length: 900 mm
Outer width: 450 mm

Tools

Slots in storage: 30
Type of tool holder: ISO 40

Additional Equipment

- Approximately 50 tool holders
- 4th axis equipment

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th revolving axis
- - Rapid feeds x-y-z 25 - 25 - 20 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
