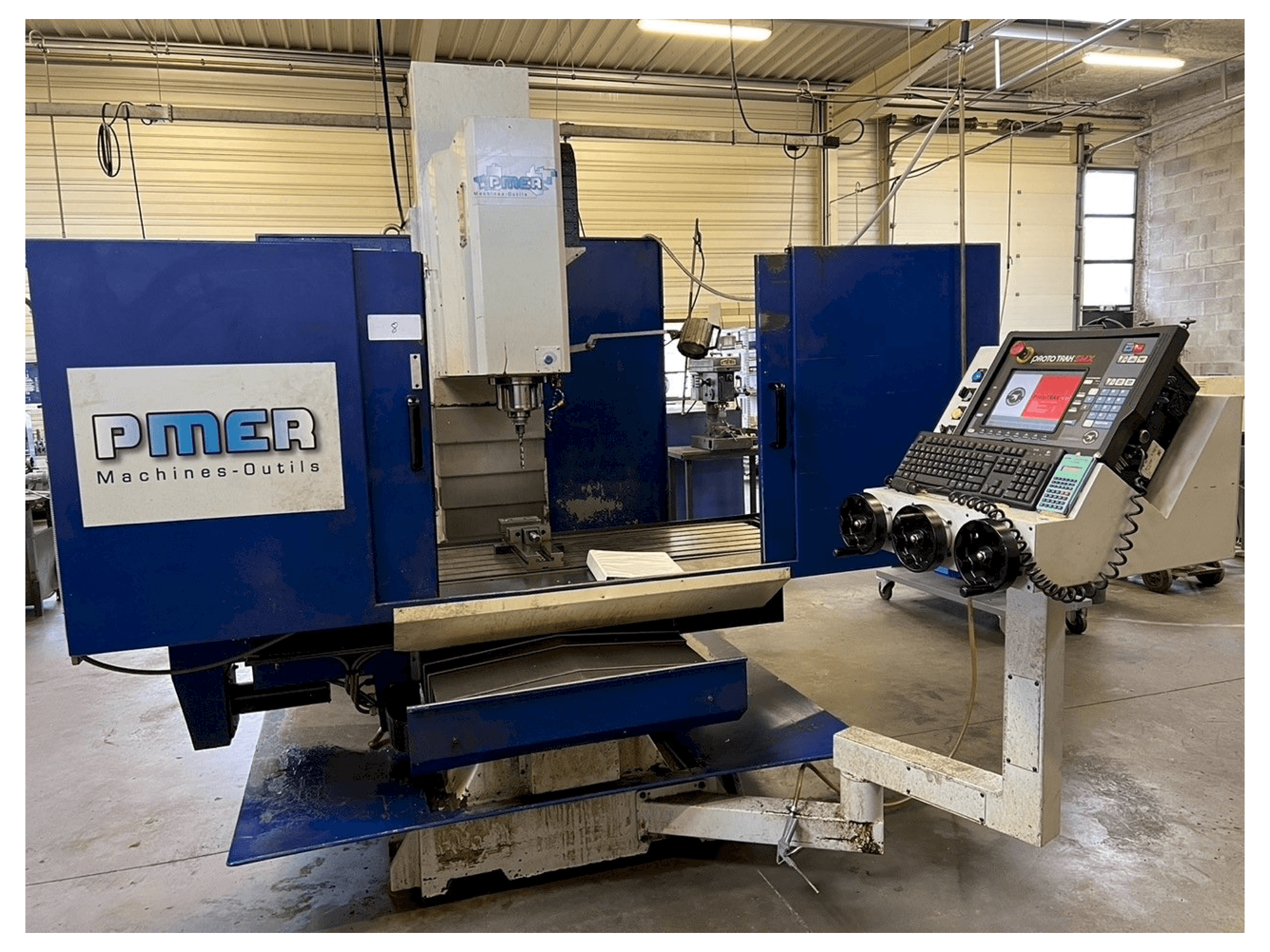

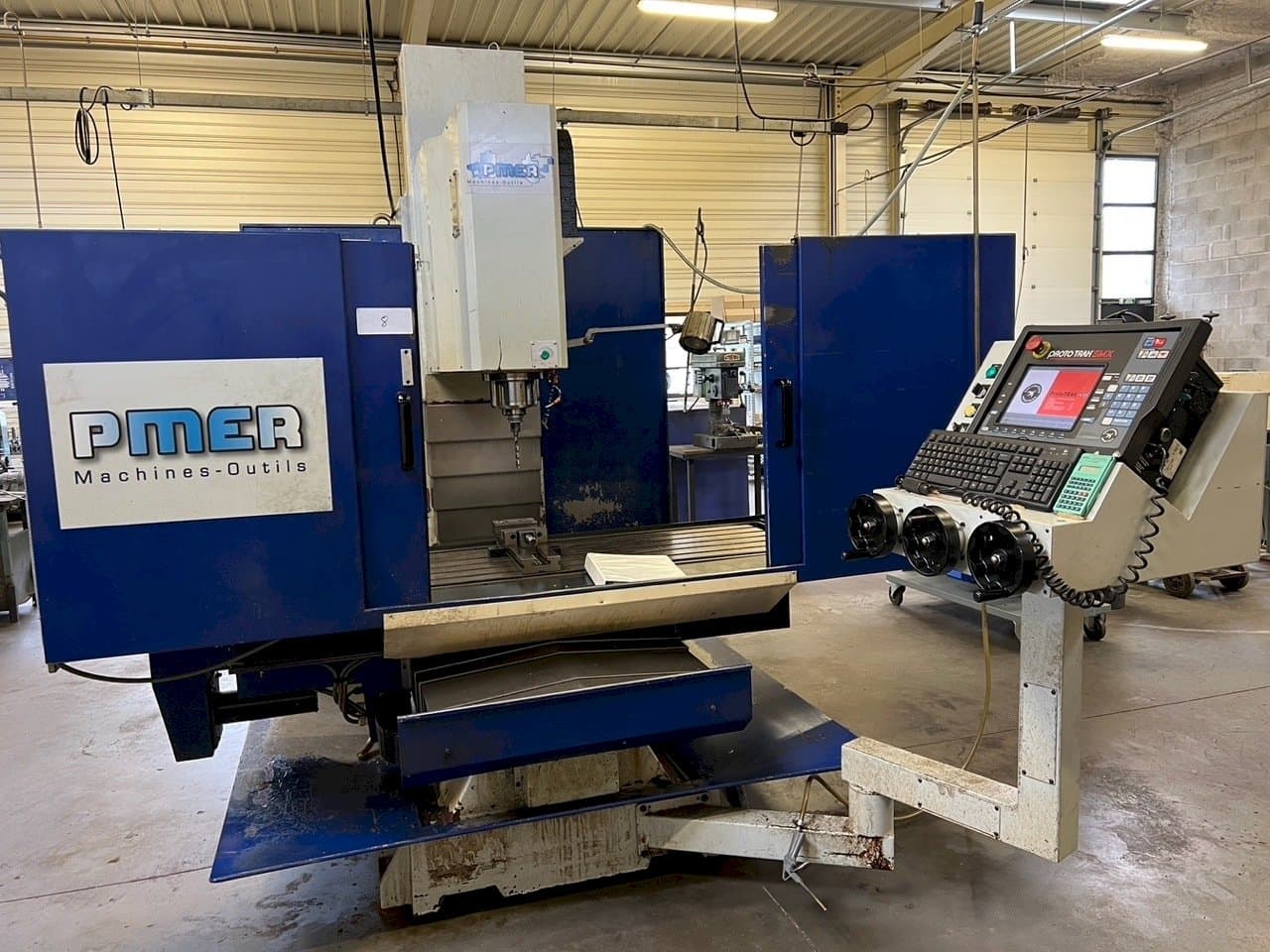

PMER S-2473 milling machine

Show in original language

This PMER S-2473 milling machine was made in 2014 in France and has 3880 production hours. It is equipped with a PROTO TRAK SMX control unit and has 3 axis. The machine has a spindle speed of 300-5000 rpm, is in very good condition and well maintained

Overview

brand: PMER
year: 2014
MODEL: S-2473
production hours: 3880
application type: Milling
Location: France
machine type: CNC Milling Machine
availability: Sold

Technical Information - PMER S-2473

General Data

Measurements width: 3200 mm
Measurements depth: 2100 mm
Measurements height: 2500 mm
Machine weight: 7000 kg

Control Unit

Model: SMX

Main drive

Spindle speed range: 300-5000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1800 mm
Outer width: 600 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T slot 5x18 mm
- - Working traverse 0/2000 mm/mn
- - Spindle taper bt 40
- - Rapid traverse 6300 mm/mn
- - Spindle motor 7,5 kw
- - Including around 20 tools holders + 1vice
- - Maxi weight of workpiece 1000 kg
Qualitative Machine Benefits:
- - Very good condition
- - Documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
