ONA - QX8 B1 LPT-EDM-ONA-2016-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ONA QX8 B1 L erosion machine

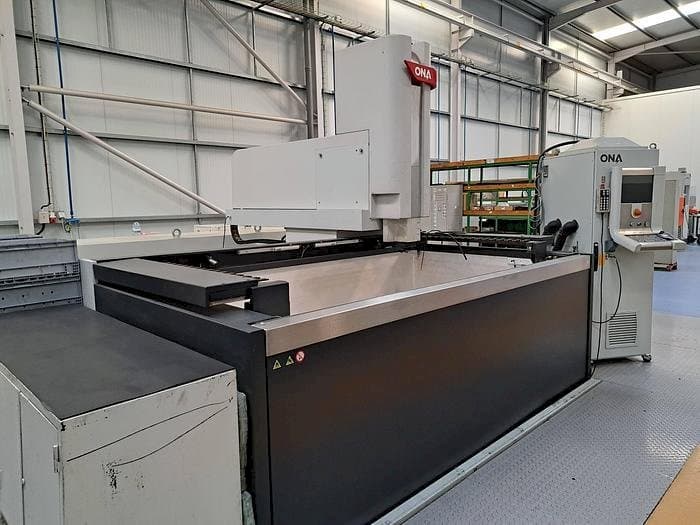

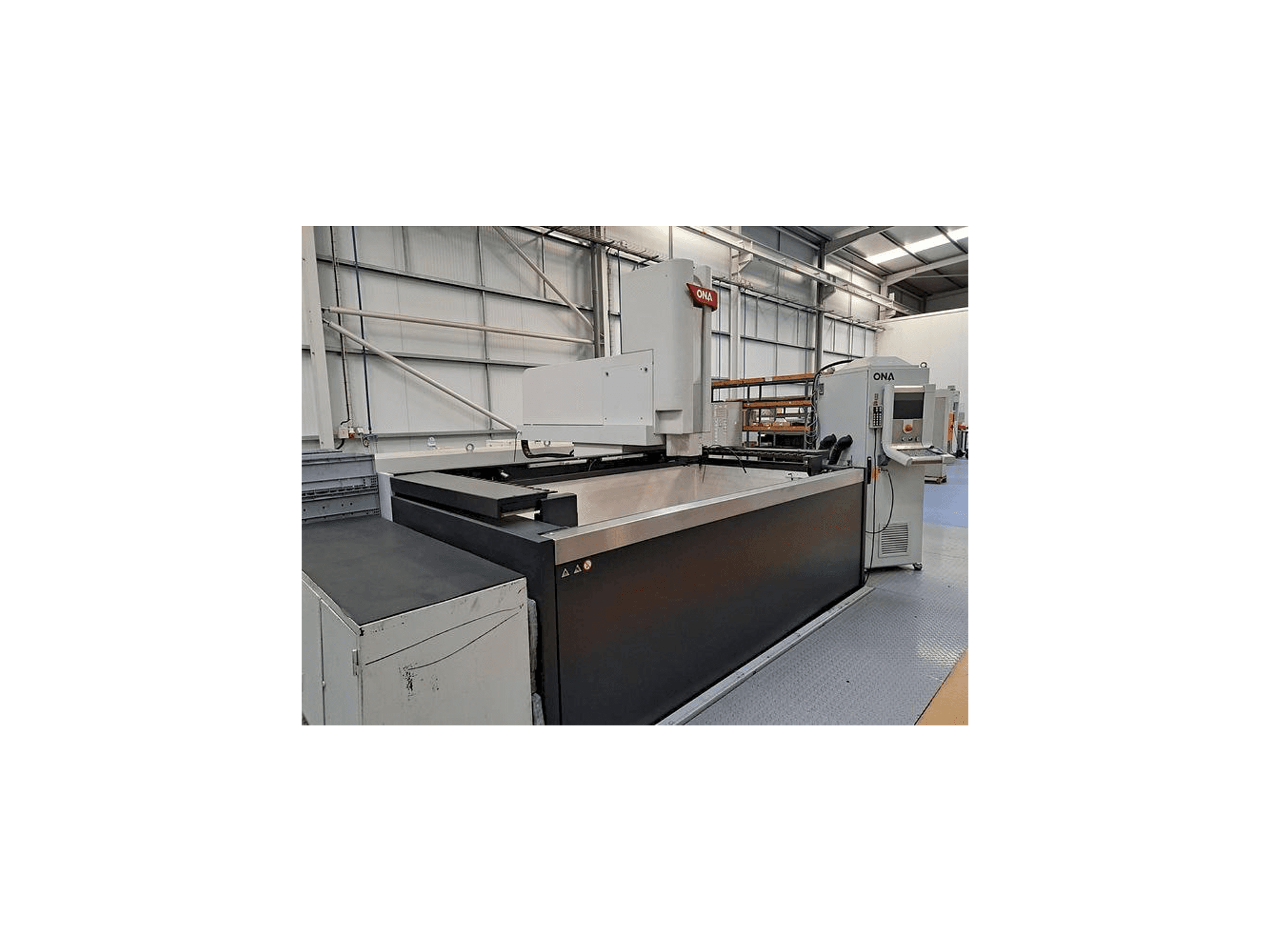

This ONA QX8 B1 L erosion machine was made in the year 2016 in Spain. The machine has a weight allowed on the table of 20000 kg.
Overview
- brand: ONA
- year: 2016
- MODEL: QX8 B1 L
- application type: EDM
- Location: Portugal
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - ONA QX8 B1 L
General Data
- Measurements width: 2800 mm
- Measurements depth: 1500 mm
- Measurements height: 1000 mm
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 750 mm
- Z-AXIS Movement: 650 mm
Table
- Outer length: 2200 mm
- Outer width: 1000 mm
- Table load: 20000 kg
Additional Information
- Technical Machine Benefits:
- - Maximum table/headboard distance 1200 mm
- - Maximum electrode weight 300 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
