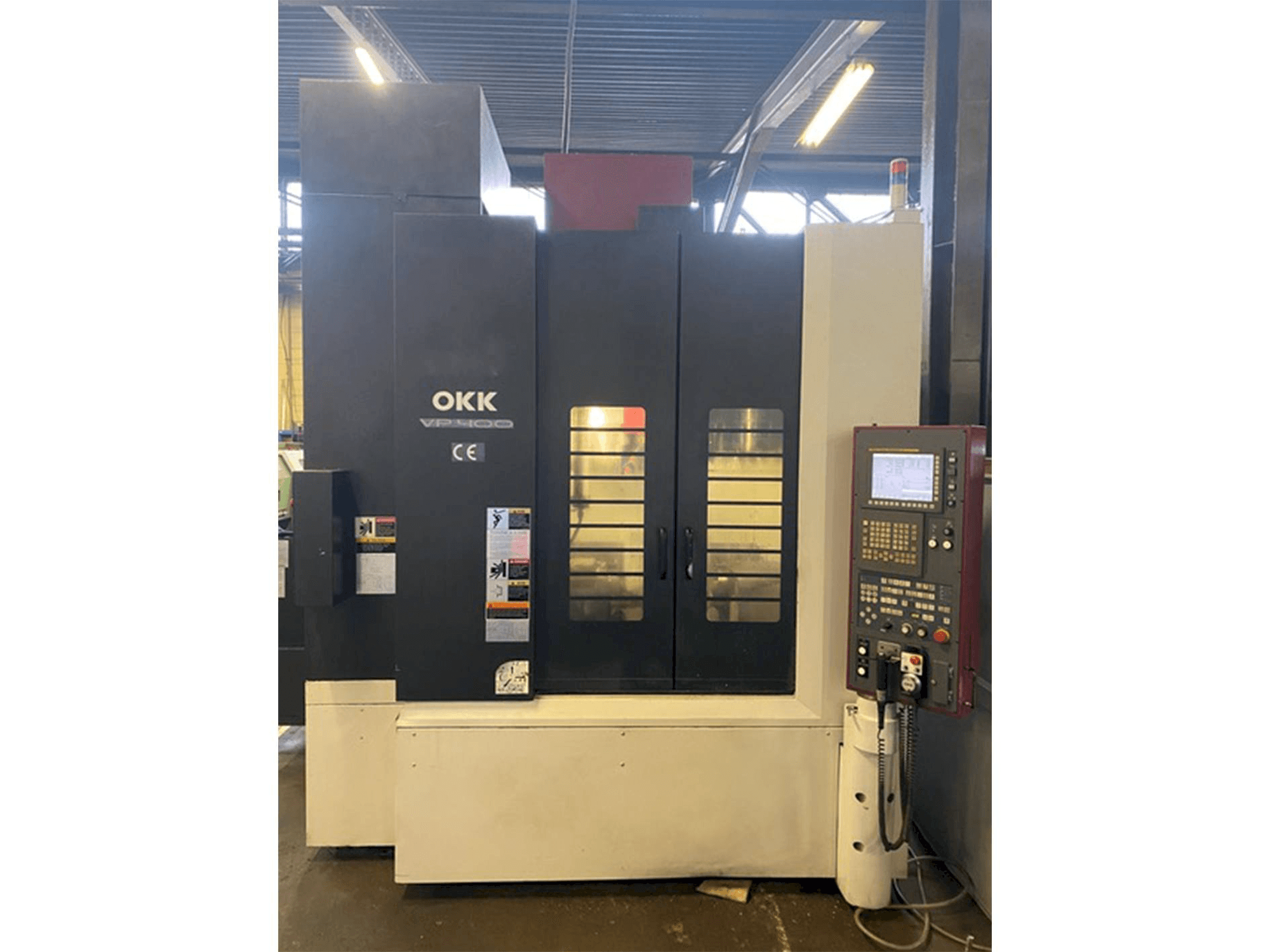

OKK VP400 Vertical Machining Center

Show in original language

This OKK VP400 Vertical Machining Center was manufactured in Japan in 2008. It has 25000 running hours of witch 6420 are cutting time. This machine works with a FANUC 160is-MB Control unit and a spindle speed between 100 - 12,000 rpm.

Overview

brand: OKK
year: 2008
MODEL: VP400
production hours: 25000
application type: Milling
Location: France
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - OKK VP400

General Data

Measurements width: 2700 mm
Measurements depth: 2050 mm
Measurements height: 2950 mm
Machine weight: 8500 kg

Control Unit

Brand: FANUC
Model: 160is-MB

Main drive

Spindle speed range: 100 - 12000 1/MIN
Spindle motor power: 7.5 - 5.5 (30-100% ED) kW

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 460 mm

Table

Table load: 200 kg

Tools

Number of index: 20
Max weight: 7 kg
Max tool diameter: 110 mm
Max tool length: 300 mm

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 30 bars with paper filter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 axis table tilting degree: -130 +30
- - 5 axis table turning degree: 360000
- - Feedrate mm-min: 1-36,000
- - Rapid traverse mm-min: x, y, 48,000 - z 36,000
- - Working table - pallets
- - Dimensions mm: day 350
- - Taper: steep cone 40
- - Tool magazine system: horizontal chain
- - Tool changer: double gripper
- - Spindle head and ball screw cooling oil temperature controller
Qualitative Machine Benefits:
- - Hydraulic clamping through working table
- - Automatic power off
- - Air through spindle
- - Full enclosure
- - Manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
