Mitsubishi MV2400S

Show in original language

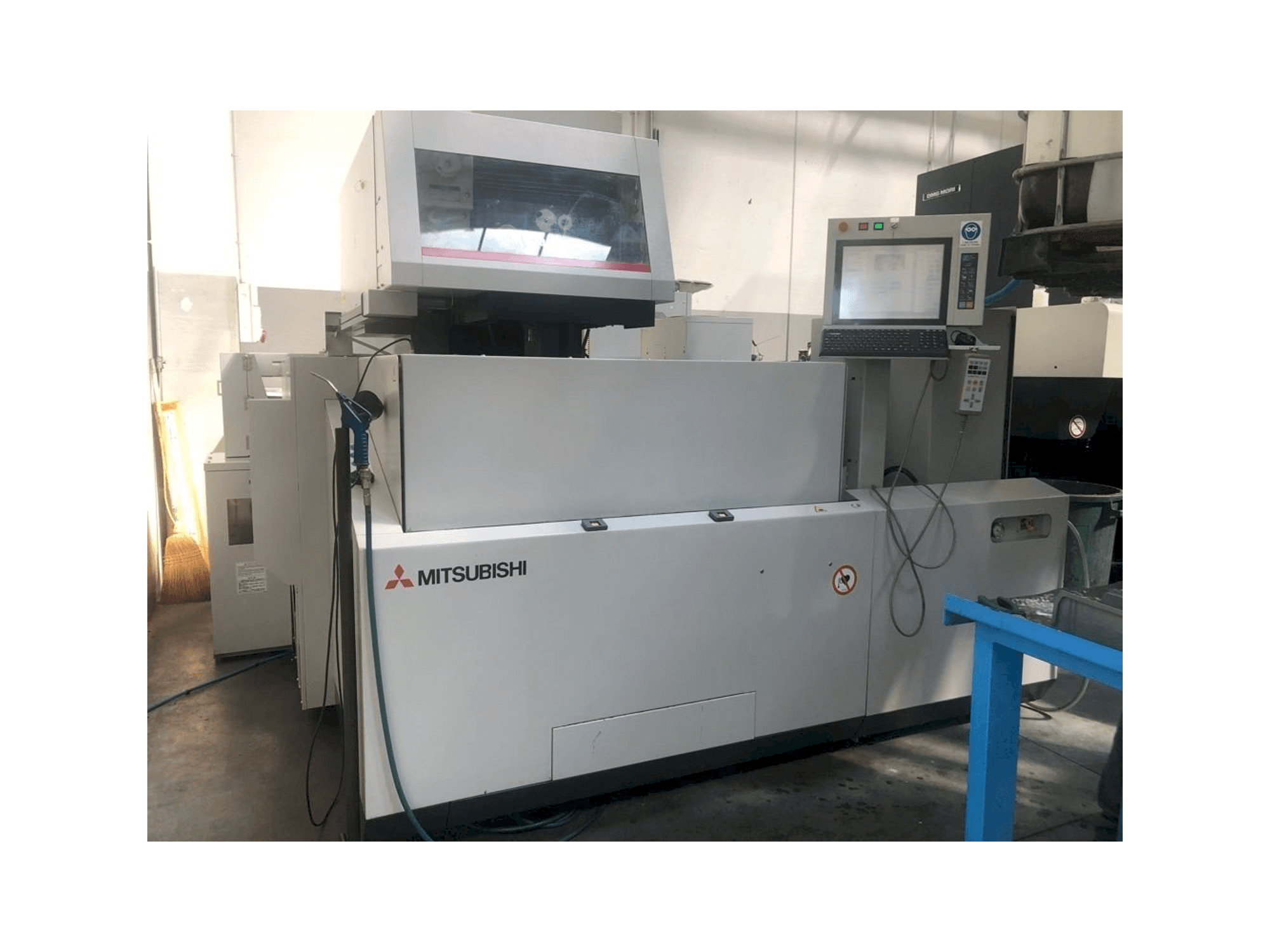

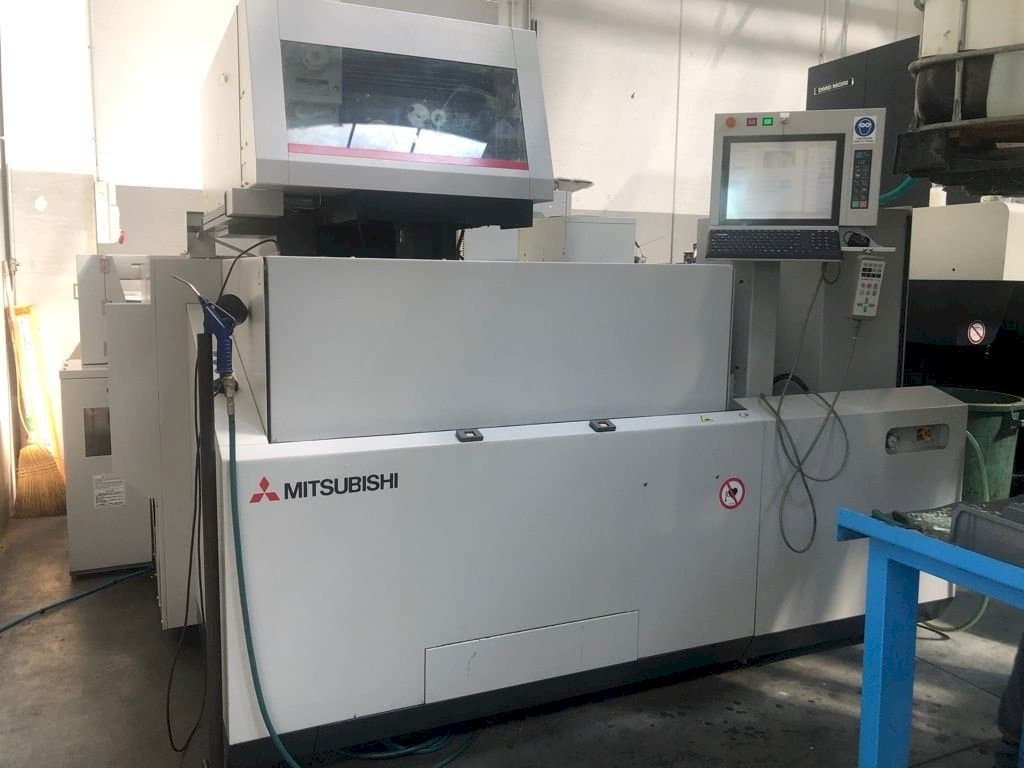

This Mitsubishi MV2400S Erosion Machine was manufactured in the year 2013. It is equipped with a control unit of the same brand. This machine comes with automatic threading and includes a work table of 840 x 560 mm. Its generator presents fully sealed cooling mode and indirect air cooling.

Overview

brand: Mitsubishi
year: 2013
MODEL: MV2400S
application type: EDM
Location: Italy
machine type: Wire EDM Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Mitsubishi MV2400S

General Data

Measurements width: 2687 mm
Measurements depth: 3030 mm
Measurements height: 2150 mm
Machine weight: 3500 kg

Control Unit

Model: ELECTRIC
Brand: MITSUBISHI

Main drive

Wire diameter: 0.1 - 0.3 mm

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 310 MM
V-Axis Movement: 150 mm
U-Axis Movement: 150 mm

Workpiece

Workpiece weight: 1500 kg

Table

Outer length: 840 MM
Outer width: 560 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Dimensions of the pieces from 1050 x 820 x 305 mm
- - Automatic threading
- - Tank capacity: 860 l
- - Filter unit μm 3
- - Filter elements 2
- - Temperature control dielectric refrigeration unit
- - Generator: with transistor adjustment; fully sealed cooling mode / indirect air cooling
- - Max. Working current a 50
- - Digital generator ae ii
- - Finisher: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
