MITSUBISHI MV2400S NEWGEN Erosion machine

Show in original language

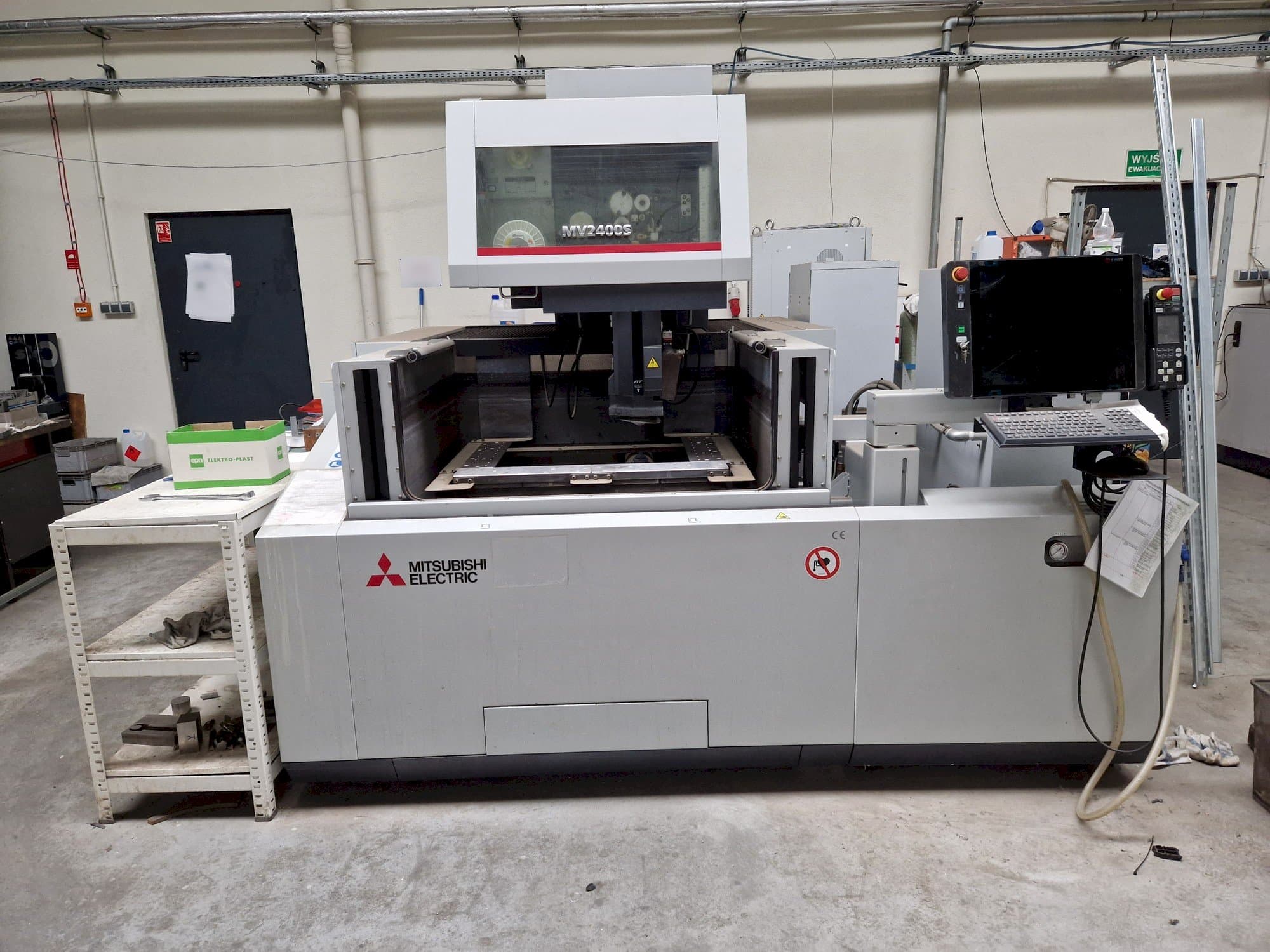

This MITSUBISHI MV2400S NEWGEN Wire Erosion machine was manufactured in the year 2018 in Japan and has no more than 1000 working hours. It is equipped with a MITSHUBISHI M800 D-CUBE control unit. The machine has a table of 840 x 640 mm, is in very good condition, and well maintained.

Overview

brand: Mitsubishi
year: 2018
MODEL: MV2400S NEWGEN
production hours: 1000
application type: EDM
Location: Poland
machine type: Wire EDM Machine
availability: Sold

Technical Information - Mitsubishi MV2400S NEWGEN

General Data

Measurements width: 2687 mm
Measurements depth: 3030 mm
Measurements height: 2150 mm
Machine weight: 3500 kg

Control Unit

Model: M800 D-CUBE

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 310 mm
V-Axis Movement: 150 mm
U-Axis Movement: 150 mm

Workpiece

Workpiece drm over bed: 1050 mm
Workpiece drm over support: 820 mm
Workpiece drm: 305 mm
Workpiece weight: 1500 kg

Table

Outer length: 840 mm
Outer width: 640 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Taper angle: +/-15 deg / 260 mm +/-30 deg / 1100 mm
- - Possible wire diameters – 0. 1 – 0. 3 mm
- - Automatic wire threader – yes
- - Configurable remote control with lcd display
- - Job-scheduler queuing programs ( optional)
- - 2d cammagic - generate program
- - Import 3d parasolid (optional), 2d dxf / dwg files
- - Graphics check, machining simulation
- - Templates machining, fast programming
- - Network card, 2 x usb ports
Qualitative Machine Benefits:
- - 3d cam magic 3d files import and generating program for solids
- - Angelmaster set for angle cutting over 30 deg.
- - Inside led lighting
- - Ods-optical driver system-tubular motors in x-axis, y-axis tubular technology
- - Optical rulers in x, y axes
- - Intelligent at - automatic wire threading
- - Nui natural user interface intuitive control mitsubishi advance plus m800
- - 2d cad / cam system with 2d dxf and iges drawings import, 64-bit cnc
- - Pfc-precise finish circuit-package to improve stability and cutting speed
- - Advanced cutting technology e. G. , graphite, pcd/cbn, carbon with esper expert system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
