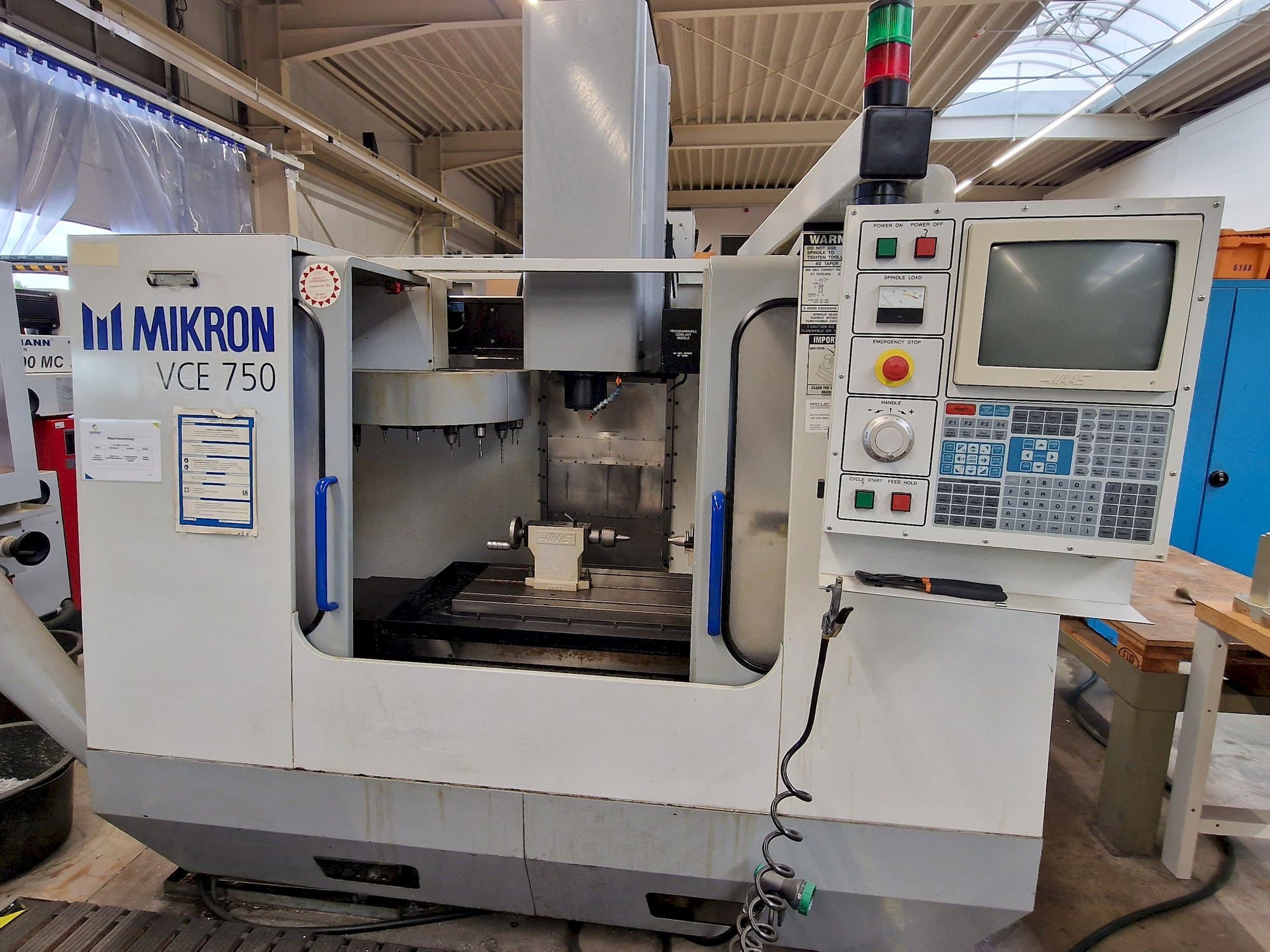

MIKRON Vce 750 Vertical Machining center

Show in original language

This MIKRON Vce 750 Vertical Machining center was manufactured in the year 2000 in the United States. It is equipped with a HAAS HRT-210 control unit and has 3 axis. The machine has a spindle speed of 10- 7500 rpm.

Overview

brand: MIKRON
year: 2000
MODEL: Vce 750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - MIKRON Vce 750

General Data

Measurements width: 4500 mm
Measurements depth: 3700 mm
Measurements height: 2500 mm
Machine weight: 3600 kg

Control Unit

Model: HRT-210
Brand: HAAS

Main drive

Spindle speed range: 10-7500 1/MIN
Spindle motor power: 11 kW
Tool taper: ISO 40/DIN69871
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 910 mm
Outer width: 560 mm
Table load: 1350 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed max. : 5000 mm/ min.
- - Rapid traverse max. : 12700 mm/ min
- - Cnc path control haas 20-fold tool changer
- - Coolant device
- - Chip conveyor
- - Dividing head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
