- MAZAK Variaxis 730-5X II Vertical Machining center

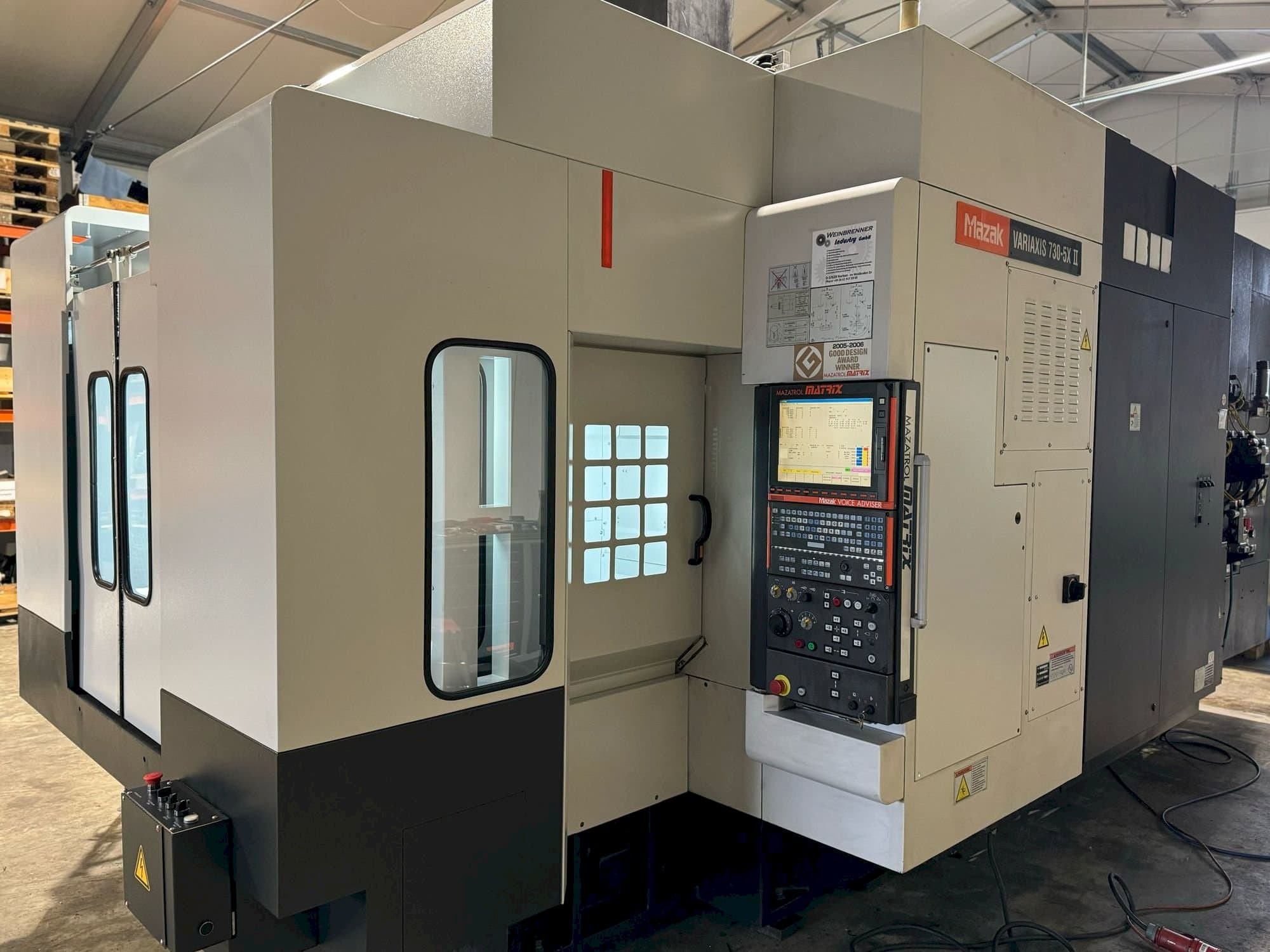

This MAZAK Variaxis 730-5X II Vertical Machining center was manufactured in the year 2007. It is equipped with a Mazatrol Matrix control unit and has 5 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Mazak
- year: 2007
- MODEL: Variaxis 730-5X II
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Mazatrol
Technical Information - Mazak Variaxis 730-5X II
General Data
- Measurements width: 5900 mm
- Measurements depth: 3907 mm
- Measurements height: 3535 mm
- Machine weight: 21000 kg
Control Unit
- Brand: Mazatrol
- Model: Matrix
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 22-30KW
- Tool taper: SK50
- Number of axis: 5
Movement
- X-AXIS Movement: 730 mm
- Y-AXIS Movement: 850 mm
- Z-AXIS Movement: 560 mm
- A-AXIS Movement: -120° /+30° MM
- C-AXIS Movement: +/-360° MM
Workpiece
- Workpiece weight: 500 kg
Additional Information
- Technical Machine Benefits:
- - Interface fms / robot prepared
- - 2 compartment pallet changer
- - Automatic pallet door
- - Internal cooling ikz 25bar
- - Eia
- - External cooling
- - Chip flushing
- - Chip conveyor consep
- - Measuring probe 3d renishaw omp60
- Qualitative Machine Benefits:
- - The machine has been partially overhauled, documentation is available. An accuracy protocol was created.
- - A laser measurement using renishaw xl 80 was carried out, as well as a quick check using renishaw ball bar. Protocols are available.
- - The ball screws of the x and y axes have been replaced.
- - All components have been checked, serviced, repaired or defective components replaced.
- - The machine has a consep system, which has also been checked and defective components replaced.
- - Documentation: oil mist extraction
- - Oil mist extraction
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
