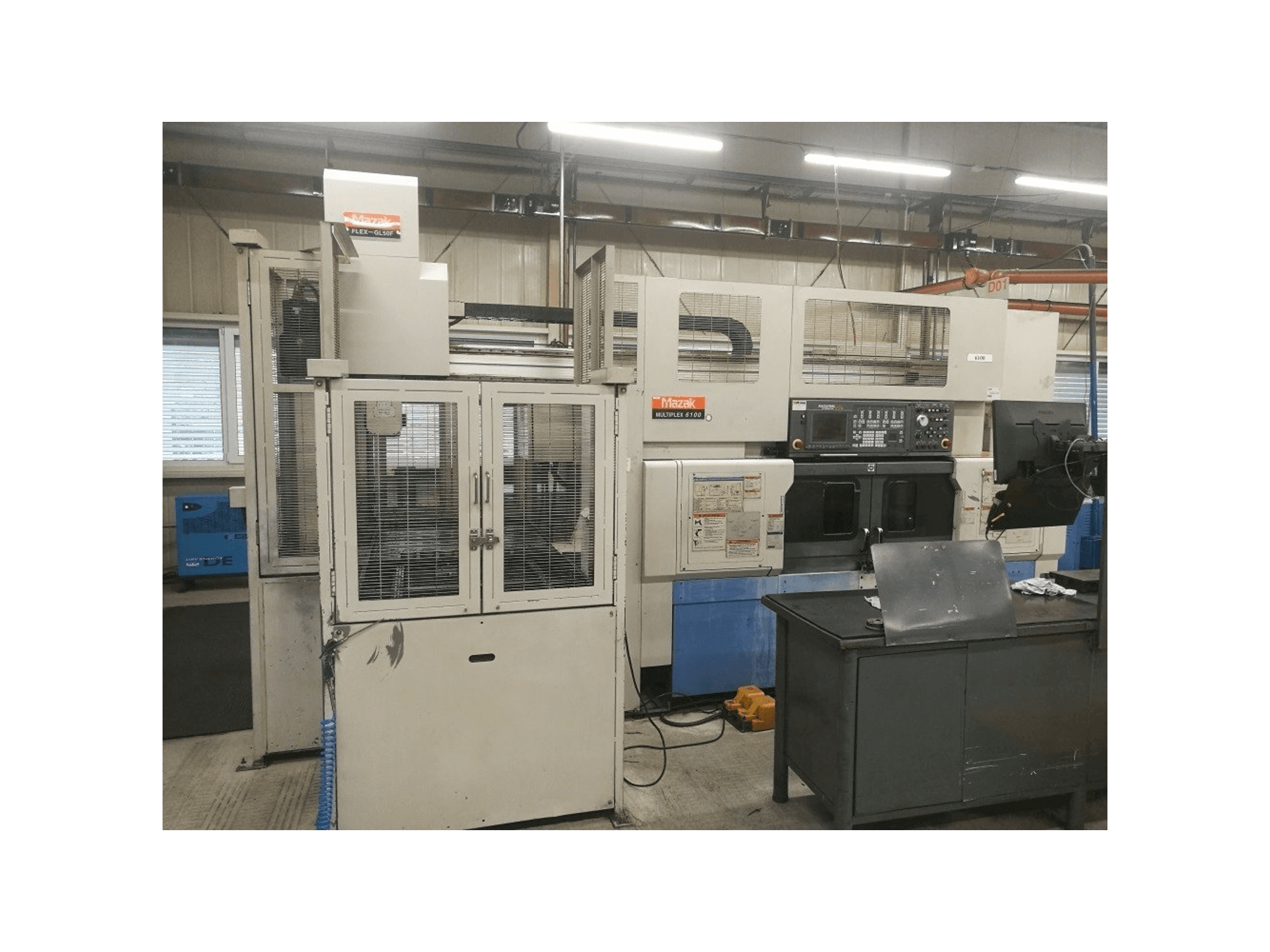

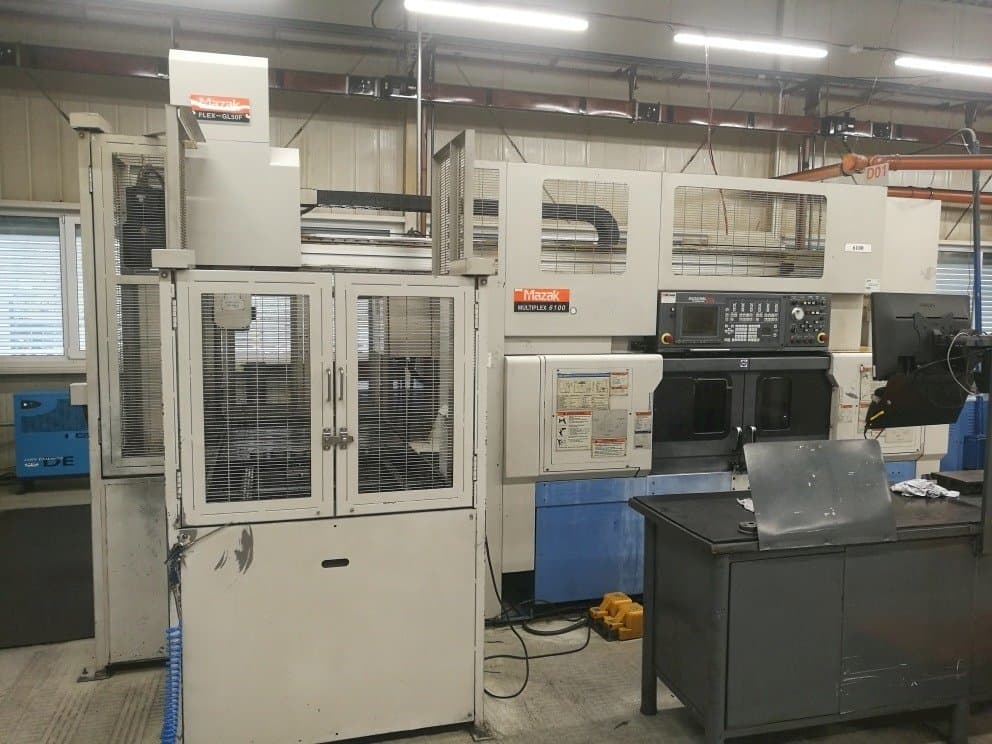

Mazak - Multiplex 6100 + robot FLEX-GL50FCZ-TUR-MAZ-2001-00005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe
This MAZAK Multiplex 6100 + robot FLEX-GL50F Lathe was manufactured in the year 2001 in Japan. It is equipped with a Mazak Mazatrol 640T control unit and has 3 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.
Overview
- brand: Mazak
- year: 2001
- MODEL: Multiplex 6100 + robot FLEX-GL50F
- application type: Turning
- Location: Czech Republic
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: MAZATROL
Technical Information - Mazak Multiplex 6100 + robot FLEX-GL50F
General Data
- Measurements width: 3000 mm
- Measurements depth: 1650 mm
- Measurements height: 2090 mm
- Machine weight: 6400 kg
Control Unit
- Model: Mazatrol 640T
- Brand: MAZATROL
Main drive
- Number of spindles: 2
- Spindle speed range: 6000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 200 mm
- Z-AXIS Movement: 365/420 mm
Turret
- Number of turrets: 2
Tools
- Slots in storage: 12
Additional Equipment
- - Mazak Flex GL-50F portal robot (2001)
- - Tool holders incl. driven holders
Additional Information
- Technical Machine Benefits:
- - Maximum cutting diameter 230 mm
- - Distance between spindles 1030 mm
- - Maximum cutting length 700 mm
- - Spindle through hole 61 mm
- - Max. Bar diameter 51 mm
- - Spindle motor power (cont. /25%) 7. 5/11 kw
- - Rapid feedrates x/z/y 30/33 m/min
- - C axis on both spindles
- - Max. Milling tool speed 4500 rpm, power 3. 7 kw
- Qualitative Machine Benefits:
- - Good condition
- - Regularly serviced and maintained
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
