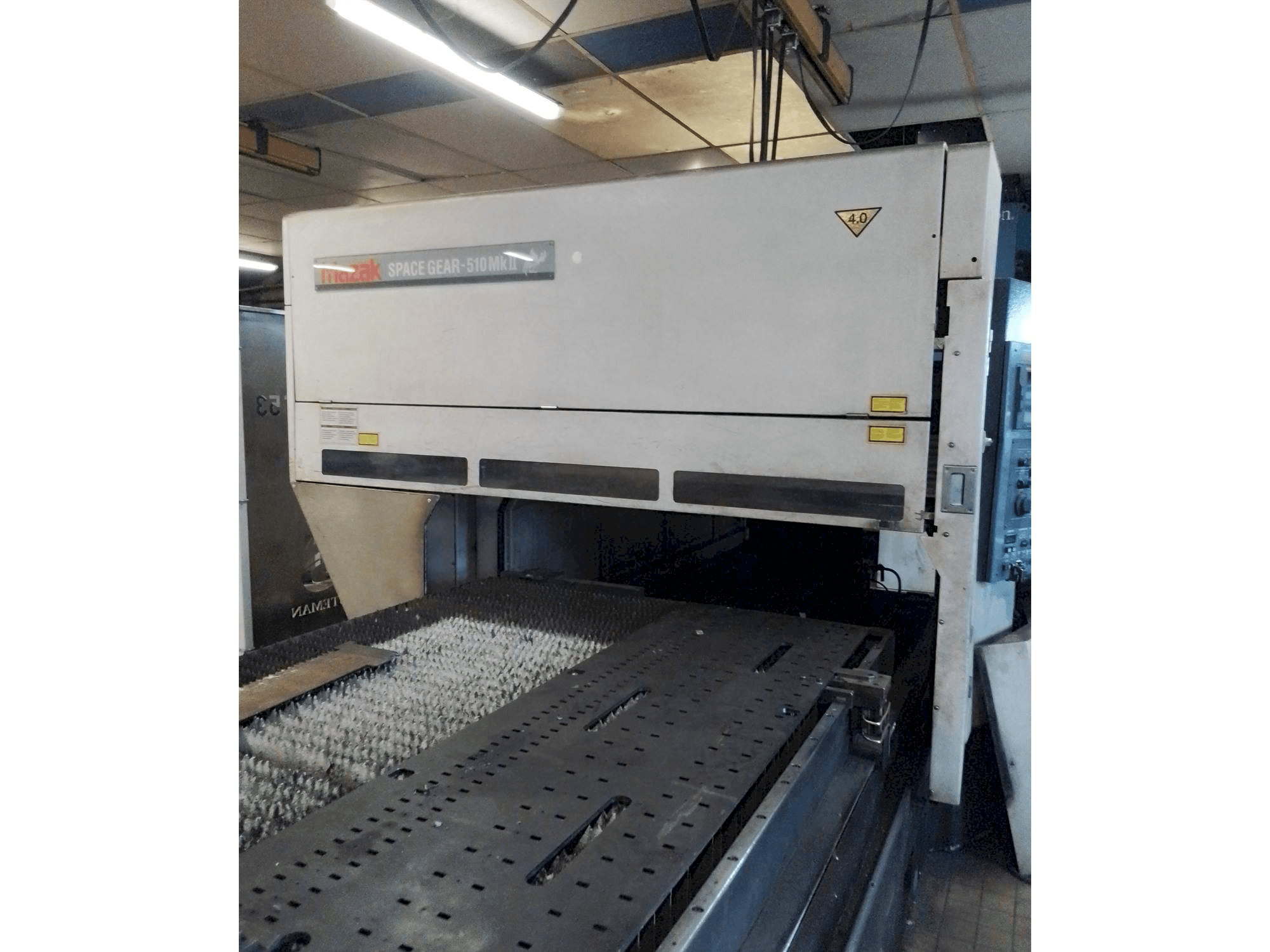

Mazak SPACE GEAR-510MKII Laser Cutting Machine

Show in original language

This Mazak SPACE GEAR-510MKII Laser Cutting Machine was built in 2010 in Japan and has 35534 hours. It is equipped with a Mazak Fanuc L-64 control unit and has 5 axis. The machine has a laser power of 4kW.

Overview

brand: Mazak
year: 2010
MODEL: SPACE GEAR-510MKII
production hours: 35534
application type: Cutting
Location: France
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak SPACE GEAR-510MKII

General Data

Machine weight: 14600 kg

Control Unit

Model: L-64
Brand: MAZATROL

Main drive

Laserpower: 4 kw
Laser type: YB-L400A8M 6E
Number of axis: 5

Table

Outer length: 1500 mm
Outer width: 3000 mm
Table load: 810 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axes a/b/y/z/c (chuck for tube cutting)
- - Max workpiece size: 3050 x 1525 x 22 mm
Qualitative Machine Benefits:
- - The laser works very well preventive maintenance followed by mazak
- - This laser is equipped with a 2010 daikin chiller and a 2000 donaldson fume extraction system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
