Bystronic - BySmart Fiber 3015 6KWEE-LAS-BYS-2019-00001

Name: Bystronic BySmart Fiber 3015 6KW
Brand: Bystronic
SKU: EE-LAS-BYS-2019-00001
Price: 245650 GBP
Availability: InStock

£ 245,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine

Show in original language

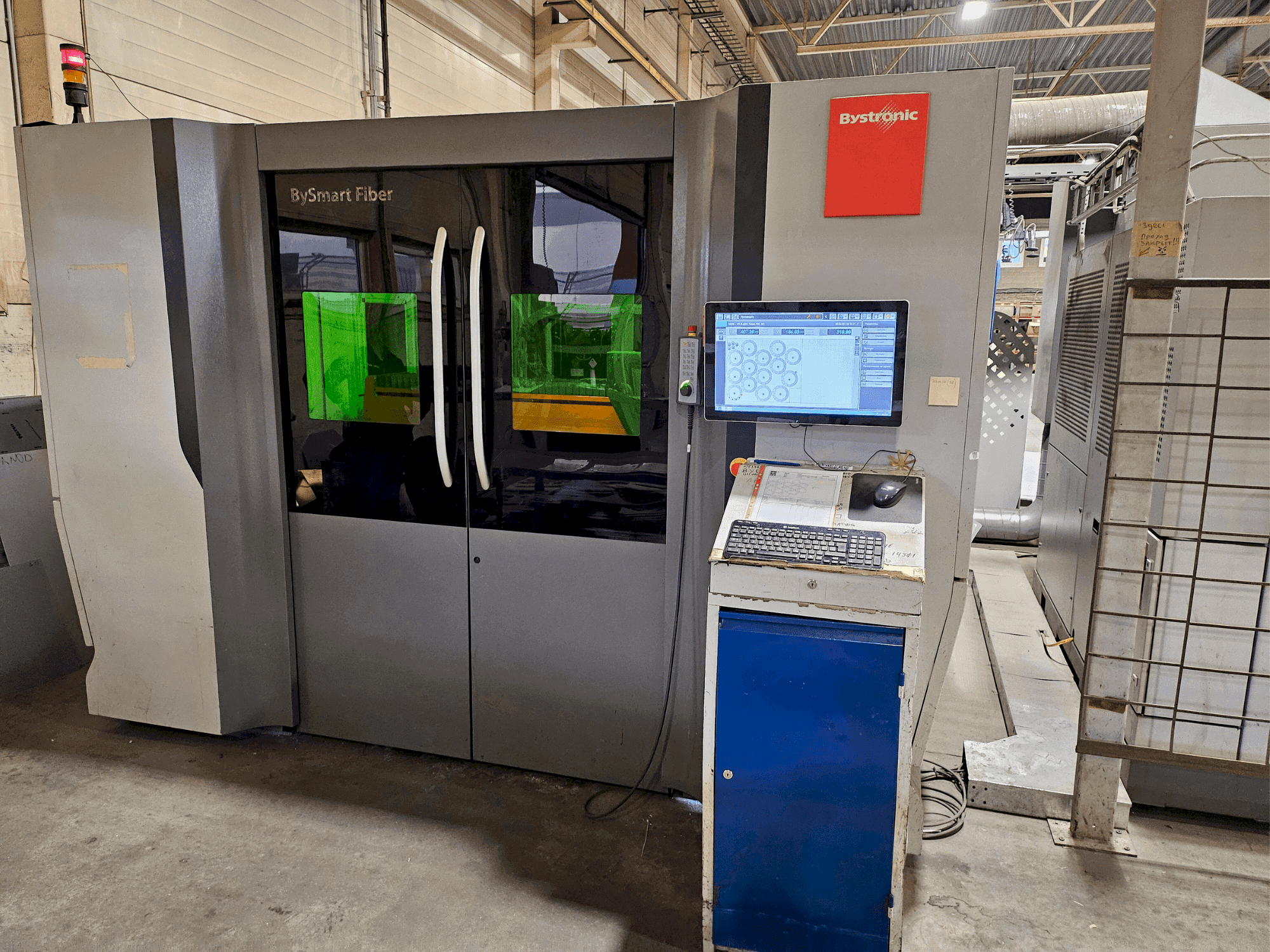

This BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine was manufactured in 2019. It is like new with only 6387h of operation. The cutting head was replaced with a new SSC V2.2 HLC8 (last model) end of 2023. In addition 2 modules were replaced. In total € 80.000 invested. The fiber laser has a laser power of 6kW. In production the machine can run with a sheet size of x = 3000mm and y = 1500 mm. See photo and video gallery for more impressions. Original tech specs sheet as PDF attached below.

Overview

brand: Bystronic
year: 2019
MODEL: BySmart Fiber 3015 6KW
production hours: 6387
application type: Cutting
Location: Estonia
machine type: Fiber Laser Cutting Machine
availability: Immediately

Technical Information - Bystronic BySmart Fiber 3015 6KW

General Data

Measurements width: 10495 mm
Measurements depth: 6903 mm
Measurements height: 2880 mm
Machine weight: 11800 kg (with chiller)

Movement

X-AXIS Movement: 3106 mm
Y-AXIS Movement: 1582 mm
Z-AXIS Movement: 100 mm

Workpiece

Workpiece weight: 1100 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 30 mm
Aluminum: 30 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sheet size x: 3000mm
- - Sheet size y: 1500mm
- - Total electric consumption with exhoust chiller 30kw
- - Laser source fiber 6000w
Qualitative Machine Benefits:
- - Max. Cutting thickness: steel 25mm // stained steel 30mm // aluminium 30mm // copper 12mm // brass 15mm
- - Laser like new now very good shape
- - New cutting head ssc v2. 2 hlc8 last model from 10. 2023, replaced 09. 2023 // 2 modules replaced 08. 2023 // total investment: € 80,000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
