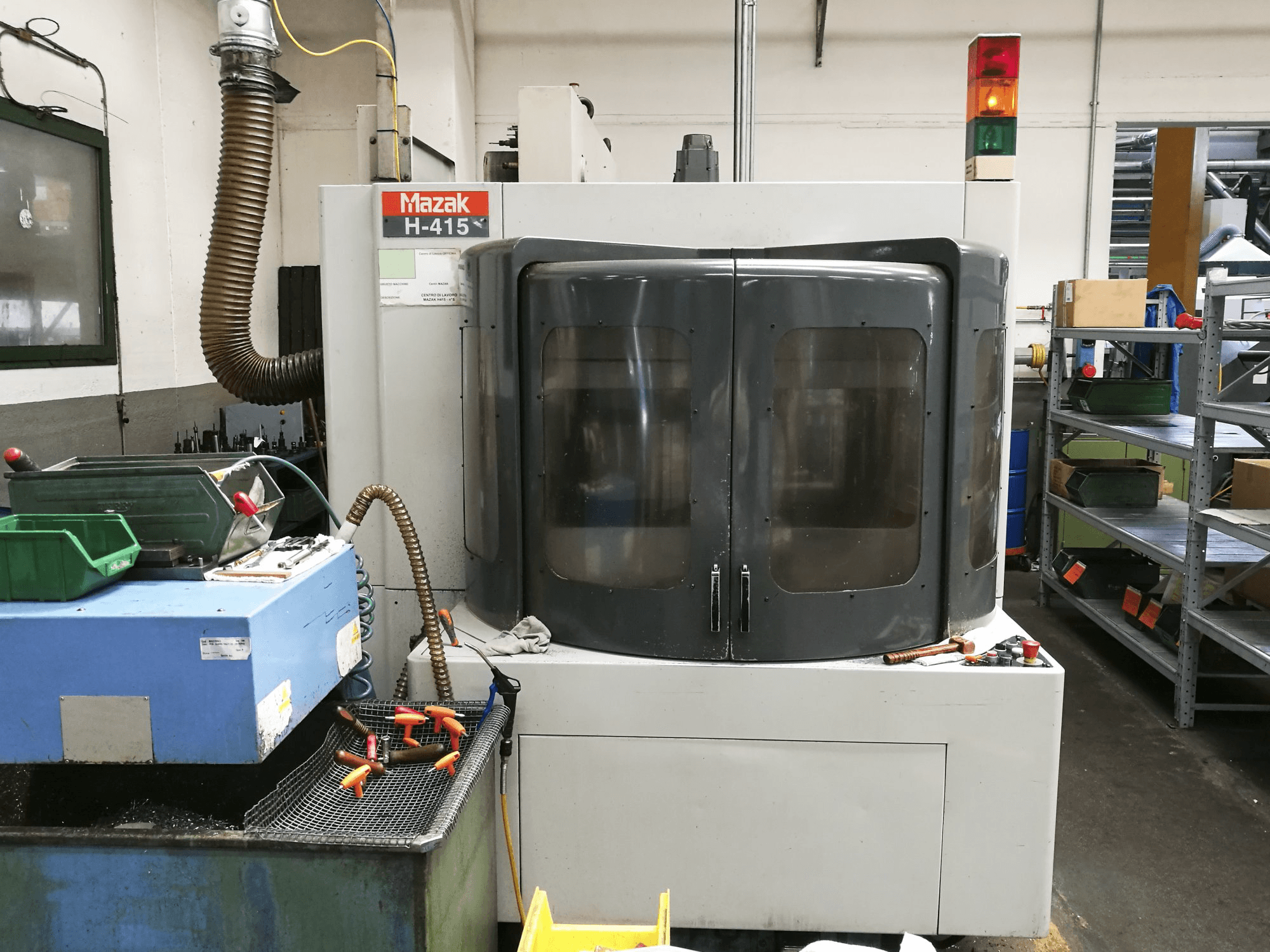

Mazak H-415 Machining Center

Show in original language

This Mazak H-415 Machining Center was manufactured in 1999 and has a production record of 96317 working hours ever since. Operated through a Mazatrol M Plus Control Unit (with remote control), the model allows an easy programming thanks to Mazatrol software. In the past, this H-415 has been working with steel as main material, and produced parts for the Textile industry. As highlights, the equipment counts with a 2x Pallet changer and a 90x Tool changer.

Overview

brand: Mazak
year: 1999
MODEL: H-415
production hours: 96317
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak H-415

General Data

Measurements width: 3850 mm
Measurements depth: 2490 mm
Measurements height: 2429 mm
Machine weight: 9150 kg

Control Unit

Model: M Plus
Remote control: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35-10000 1/min
Spindle motor power: 7.5 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 560 mm
X-AXIS Working Feed: 1-8000 mm/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Working Feed: 1-8000 mm/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 1-8000 mm/min
Z-AXIS Rapid traverse: 30 m/min
B-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 610 mm
Workpiece z: 600 mm
Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 90
Max weight: 12 kg
Max tool diameter: 95/150 mm
Max tool length: 320 mm

Media

Main electronic connection: 400 V / 3 P / 50 Hz
Power consumption: 48 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
