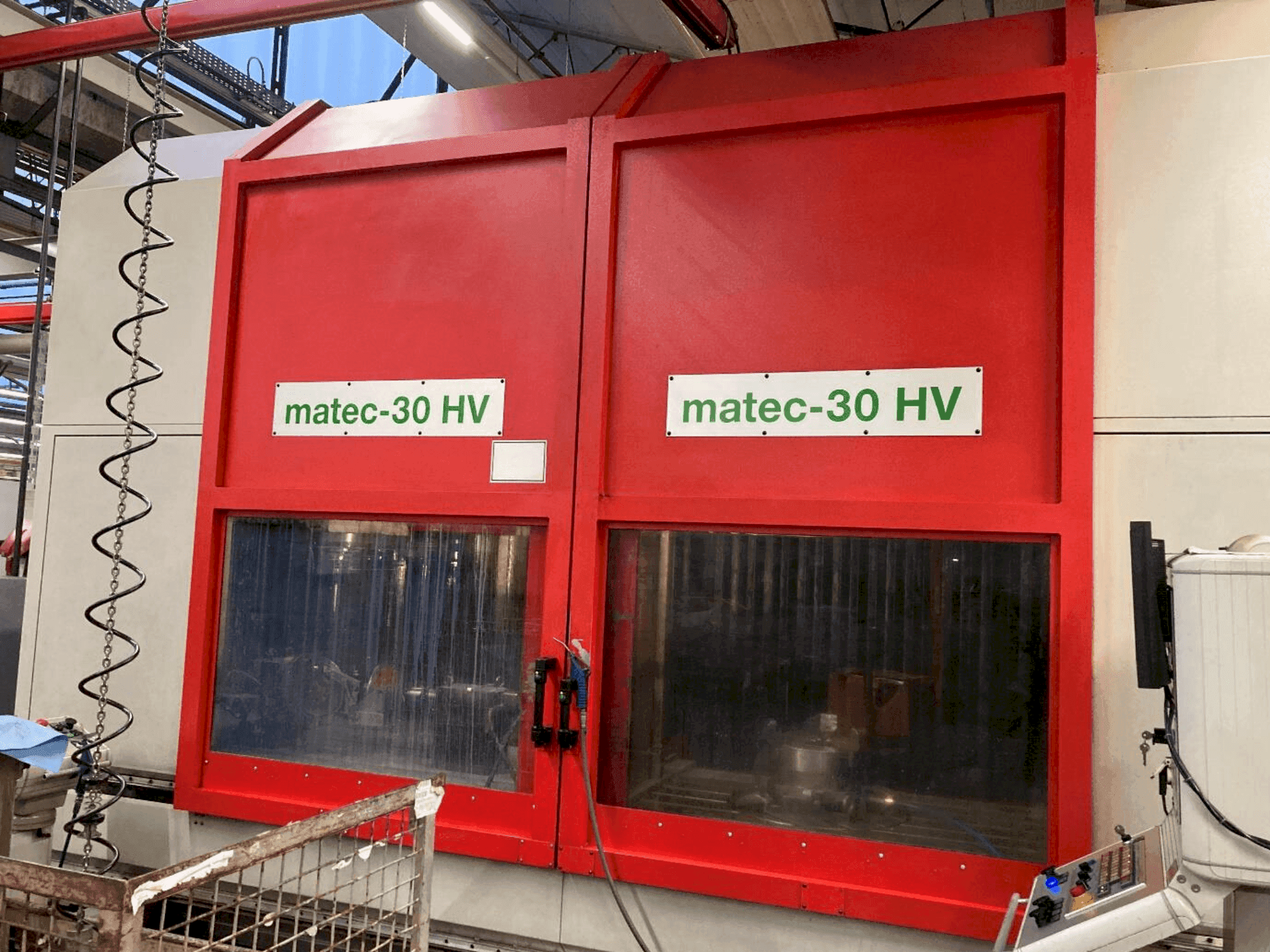

- MATEC 30 HV (2003) Universal Machining Centre / CNC traveling column milling machine
This MATEC 30 HV (2003) Universal Machining Centre was manufactured in 2003 in Germany. It is controlled by a BOSCH TYPE 3 OSA Control unit. This CNC traveling column milling machine (3+2 axes) is equipped with a main spindle type DMS 112 with speed range up to max. 12,000 min/-1 and drive power 30 kW. It has a NC swivel head (Sauter) with swiveling +/- 90 ° and graduation +/- 3 arc seconds. In addition it runs with a tool changer with 48 positions and a HSK A63 tool holder. The table is a NC rotary table with a clamping surface of 3,500 x 835 mm and 7 T-slots. IKZ 70 bar, paper belt filter and chip conveyor (ejection height 1200mm) and 3D radio measuring probe come with the machine. The machine is prepared with a 4th axis interface. The condition of the machine is very good - it is still in production and maintenance service has been applied regularly according to manufacturer's standards. An on-site inspection is possible at any time.
Overview
- brand: Matec
- year: 2003
- MODEL: 30 HV
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: August 2024
- control unit brand: BOSCH
Technical Information - Matec 30 HV
General Data
- Measurements width: 7000 mm
- Measurements depth: 6000 mm
- Measurements height: 4000 mm
- Machine weight: 15000 kg
Control Unit
- Brand: BOSCH
- Model: TYPE 3 OSA
Main drive
- Spindle speed range: 12,000 min/-1 1/MIN
- Spindle motor power: 30 kW
- Number of axis: 3+2
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Rapid traverse: 30 m/min
- Y-AXIS Movement: 800 mm
- Y-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 1100 mm
- Z-AXIS Rapid traverse: 30 m/min
Tools
- Type of tool holder: HSK 63 A
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Coolant system: Internal coolant supply 70 bar // Cooling unit for switch cabinet
- - Paper belt filter Flushing gun
- - Chip conveyor: Ejection height 1200mm
- - 3D radio measuring probe
- - Direct measuring systems x-y-z
Additional Information
- Technical Machine Benefits:
- - Main spindle: type dms 112 // max. Torque 190 nm // drilling capacity steel approx. 60 mm // milling capacity approx. 500 cm³ // thread cutting m30
- - Feed rates: rapid traverse (x / y / z) 30 m/min // feed speed 30,000 mm/min
- - Nc swivel head: sauter swiveling +/- 90 ° // pitch +/- 3 arc seconds
- - Work table: table clamping surface 3,500 x 835 mm // t-slots 7x // t-slots - width 18-h7 // nc rotary table sempuco skh 4/630 // horizontal faceplate // faceplate diameter 630mm // embedded in the machine table
- - Tool changer: number of tool positions 48 pos.
- - Total connected load: 60kva
- - Fully enclosed work area
- - Loading doors suitable for crane loading // automatic opening // movable partition wall
- - Clamping hydraulics interface 4th axis // nc rotary table rw/nc 160/250 (hofmann)
- - Face plate diameter 250mm // center height 160mm // hydraulic tailstock with quill mk4
- Qualitative Machine Benefits:
- - Machine still under production and can be inspected at any time
- - The machine has been serviced every year by the service department and is technically in good condition
- - Full documentation included // Declaration of conformity // Replacement screen installed
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
