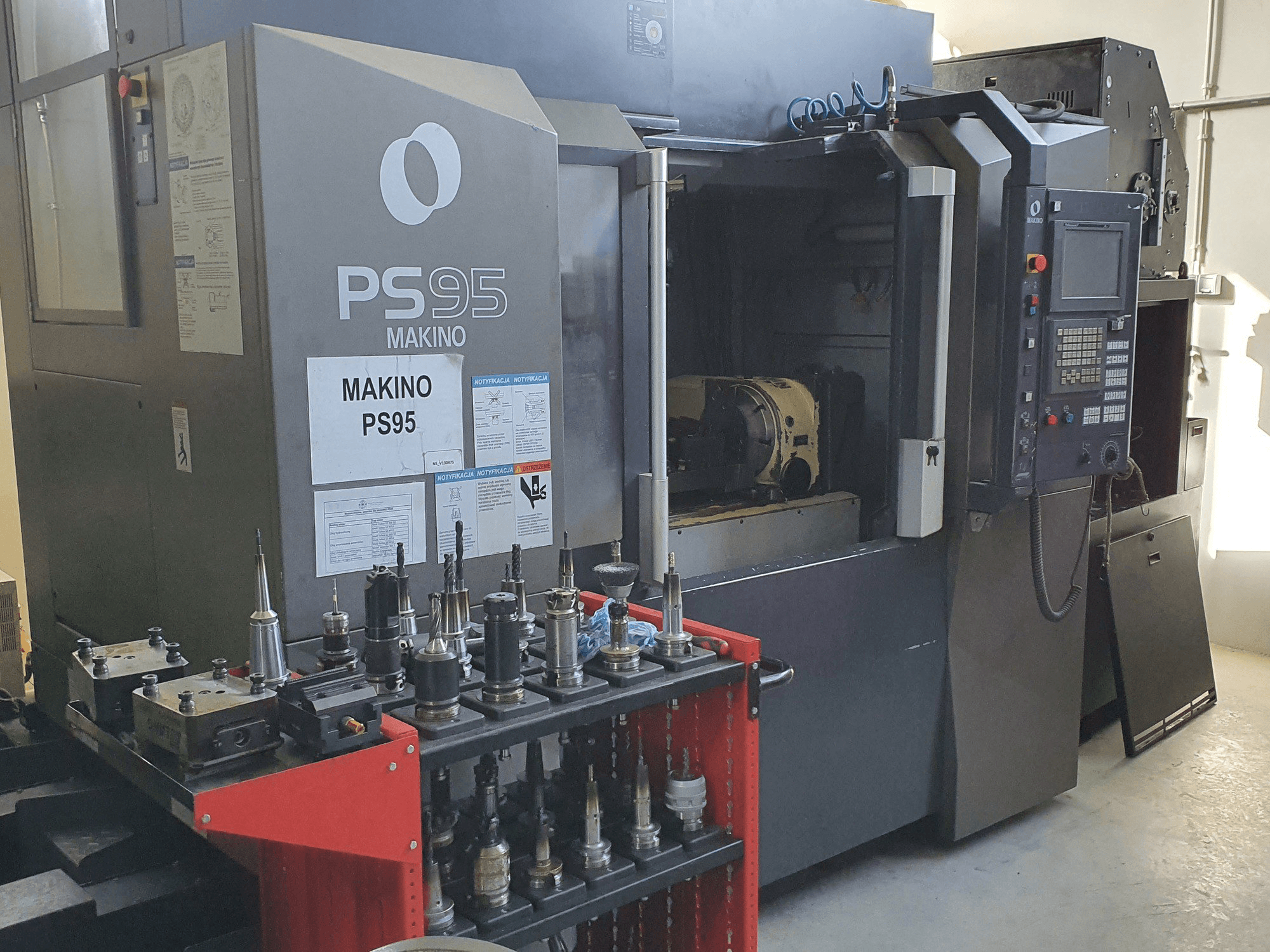

Makino PS95 vertical machining center

Show in original language

This Makino PS95 vertical machining center was manufactured in 2014. The machine has a total of 4000 hours. It is operated through a control unit of the same brand. This 4 axis machine has a spindle speed up to 14000 rpm. The machine is in a very good, working condition. It is ready for test and always serviced via MAKINO factory service. Its full service and operating documentation is available. A new spindle was replaced in 2018.

Overview

brand: Makino
year: 2014
MODEL: PS95
production hours: 4000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino PS95

General Data

Measurements width: 2762 mm
Measurements depth: 2420 mm
Measurements height: 2479 mm
Machine weight: 6800 kg

Control Unit

Brand: MAKINO

Main drive

Spindle speed range: 14000 1/MIN

Movement

X-AXIS Movement: 920 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 460 mm

Table

Outer length: 1170 mm
Outer width: 510 mm
Min distance between vertical spindle and table: 150 - 610 mm

Tools

Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 300 mm

Media

Main electronic connection: 3 x 400V / 50 Hz
Power consumption: 33 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle tapper: hsk63a taper
- - Automatic tool changer: 30 pcs
- - Interface for 4th axis nc-table (incl. Fanuc-components)
- - Through spindle coolant: 1. 5 mpa, including option air through spindle
- - Tool shank hsk-a63
- - Blum probe awm
- - Blum probes atlm
- - Ai contour control (aicc)
- - 4th axis nikken cncz 260zlfa-m
- - External chip conveyor frontside knoll incl. External pump
Qualitative Machine Benefits:
- - Coolant unit knoll kf200, ikz 15bar
- - Increased program storage to 2mb
- - Coolant tank capacity: 310 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
