Makino MC 100 Horizontal Machining Center

Show in original language

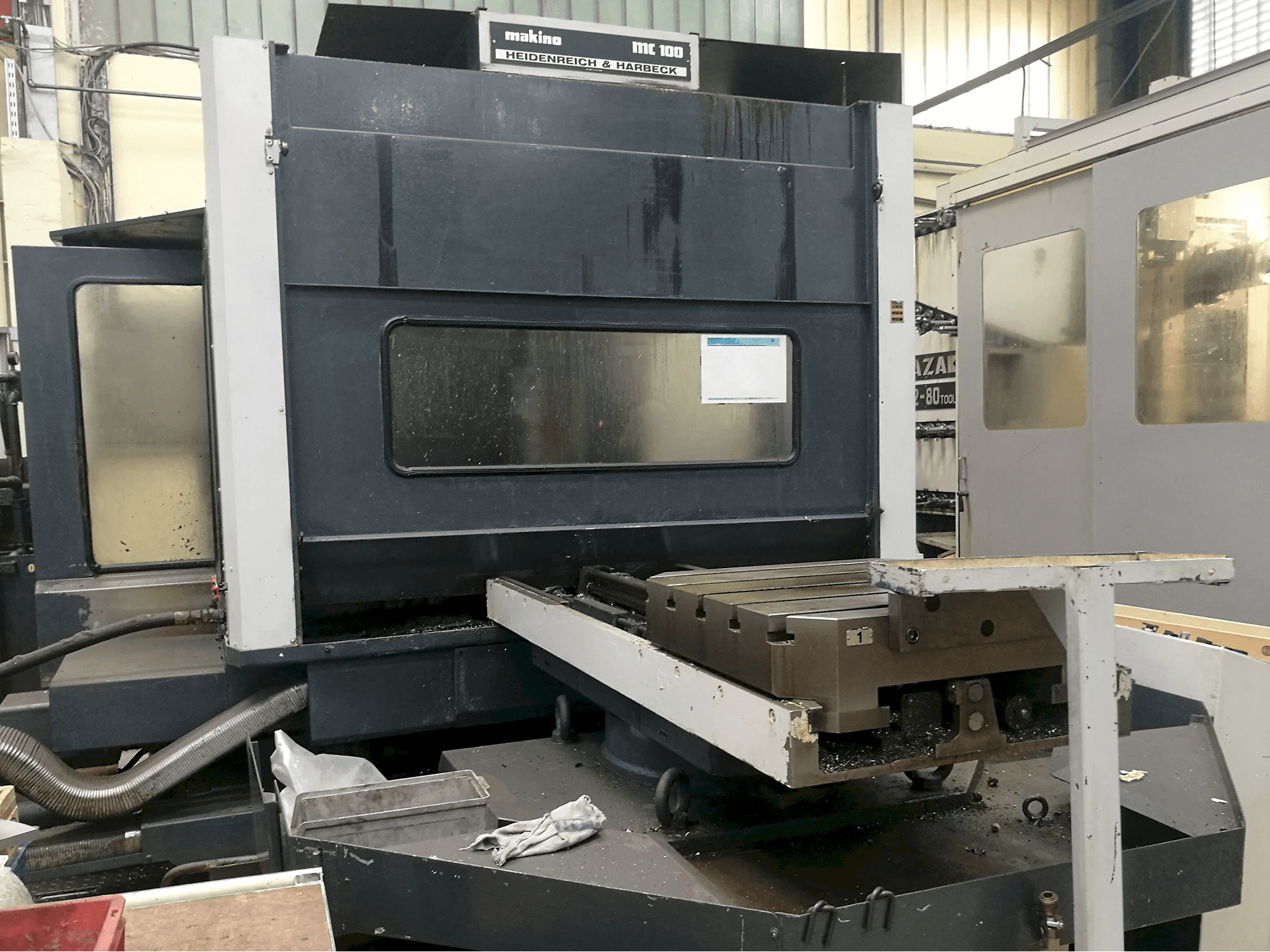

This Makino MC 100 Horizontal Machining Center was made in Germany in 1987 and counts with a production time of 62000 hours. Operated through a FANUC System 6M Control unit, this strong machine has mainly worked with steel and stainless steel during the past. It incorporates box guideways, an oil chiller and 2 pallets.

Overview

brand: Makino
year: 1987
MODEL: MC 100
production hours: 62000
application type: Milling
Location: Croatia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Makino MC 100

General Data

Measurements width: 4900 mm
Measurements depth: 6800 mm
Measurements height: 2650 mm
Machine weight: 11000 kg

Control Unit

Brand: FANUC
Model: System 6M
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 980 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 620 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 60
Type of tool holder: SK50

Media

Main electronic connection: 380 V
Power consumption: 15 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- oil chiller
- 2 pallets (630x630mm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
