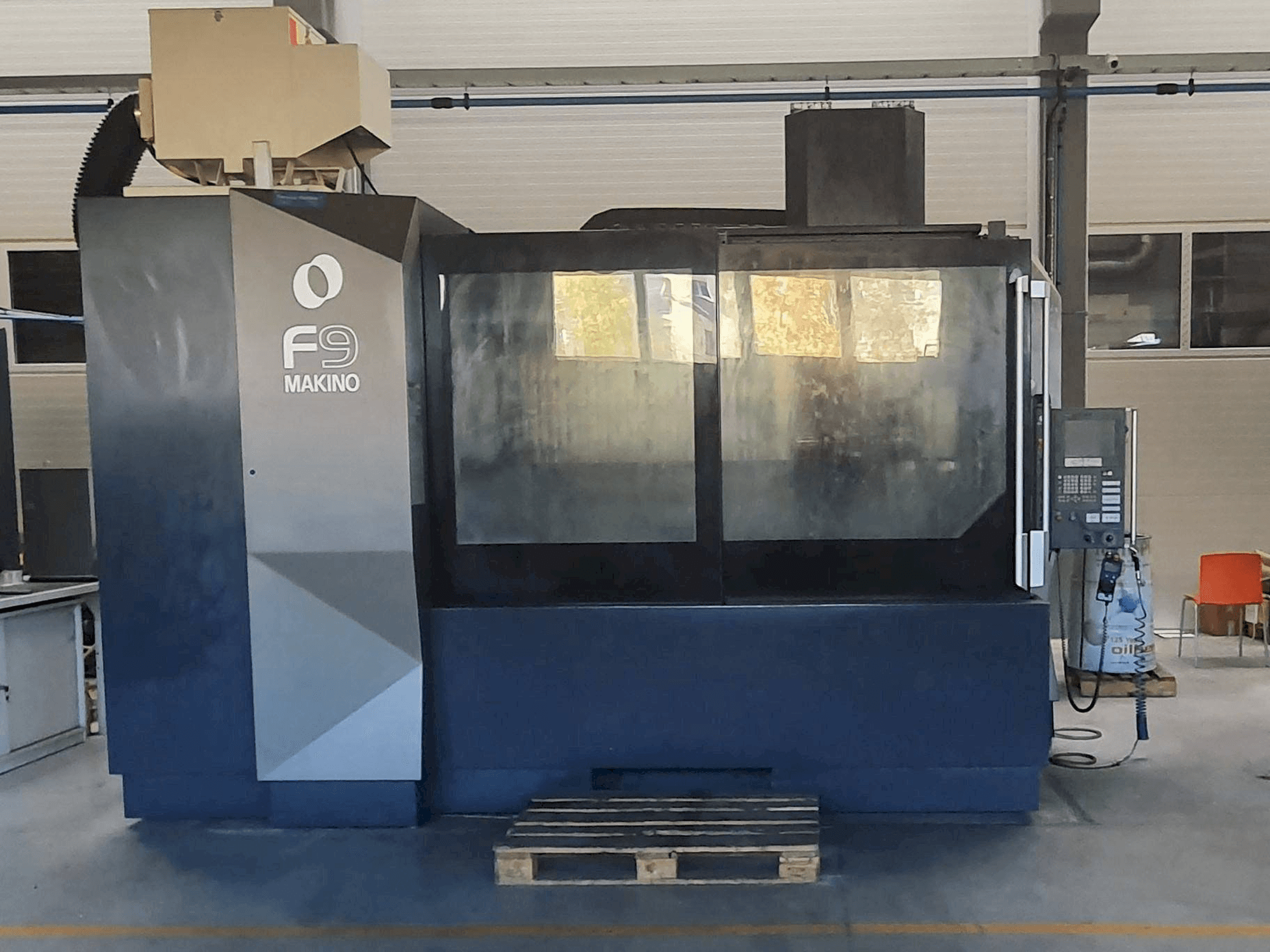

Makino F9 Vertical Machining Center

Show in original language

This Makino F9 Vertical Machining Center was built in Japan in 2016 and has 14518 hours, of which 8247 are spindle hours. It is equipped with a Makino PROFESSIONAL 6 control unit and has 3 axis. The machine has a spindle speed range of 20000 rpm. It includes several additional equipment like an SNT 200V Transformer.

Overview

brand: Makino
year: 2016
MODEL: F9
production hours: 14518
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino F9

General Data

Measurements width: 4310 MM
Measurements depth: 4080 MM
Measurements height: 3556 MM
Machine weight: 17000 KG

Control Unit

Model: PROFESSIONAL 6
Brand: MAKINO

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1600 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 650 MM

Additional Equipment

- AUTOMATIC TOOL CHENGER (ATC) CAPACITY: 48 PCS
- SNT 200V TRANSFORMER
- AIR DRYER
- PORTABLE MTG WITH LCD
- LIFT UP CHEAP CONVEIER
- COOLANT FLUSH PUMP GRUNDFOS
- COOLING THROUGH THE SPINDLE – 3 MPA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max table loading: 2500kg
- - Table: (wxd): 1850x800mm
- - Spindle taper: hsk a63
- - Rapid traverse / cutting feedrate: 24000 mm / min
- - Signal light
- - Power supply: 400v / 50hz
- - Auto grease
- - Air blower
- - Tool measurement system: blum mc d80 (laser type)
Qualitative Machine Benefits:
- - Original offer copy with full configuration attached.
- - Service report makino and geometry report from nov 2021.
- - Machine is in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
