- Makino a61nx Pro 6 Horizontal Machine Center

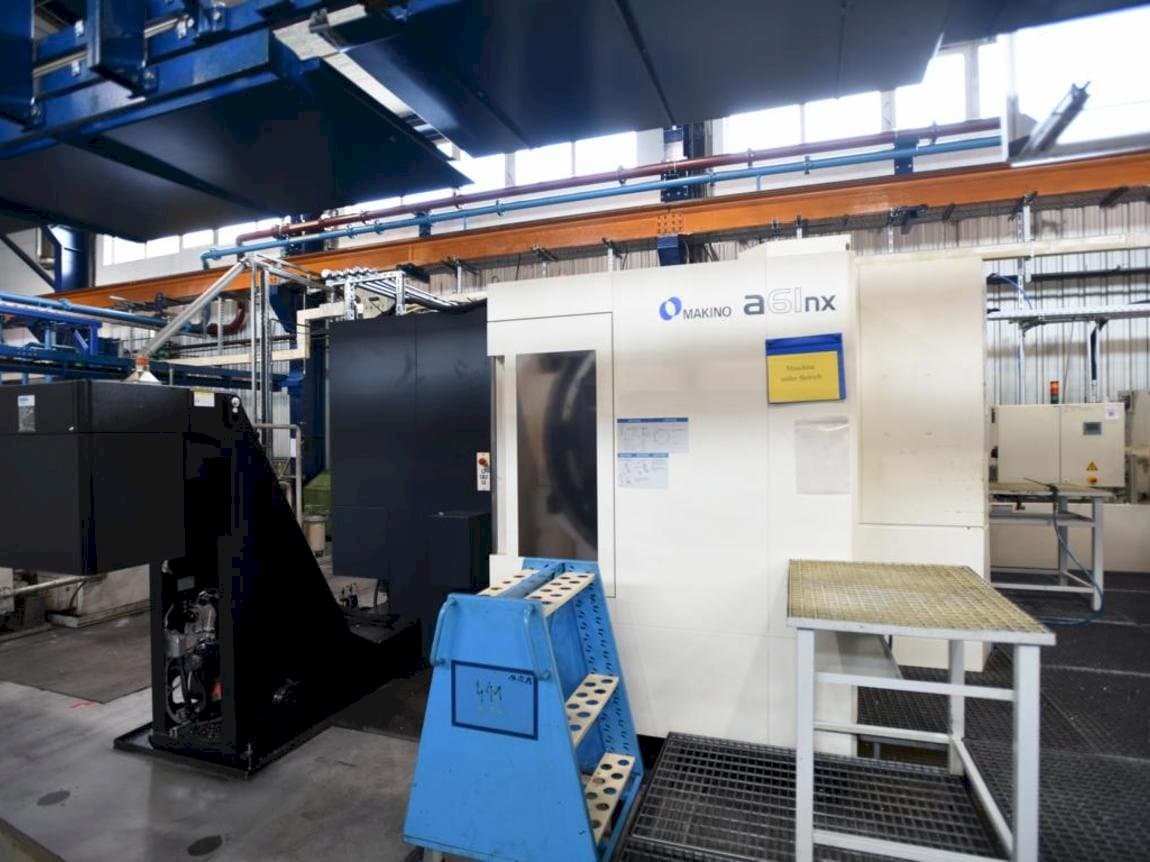

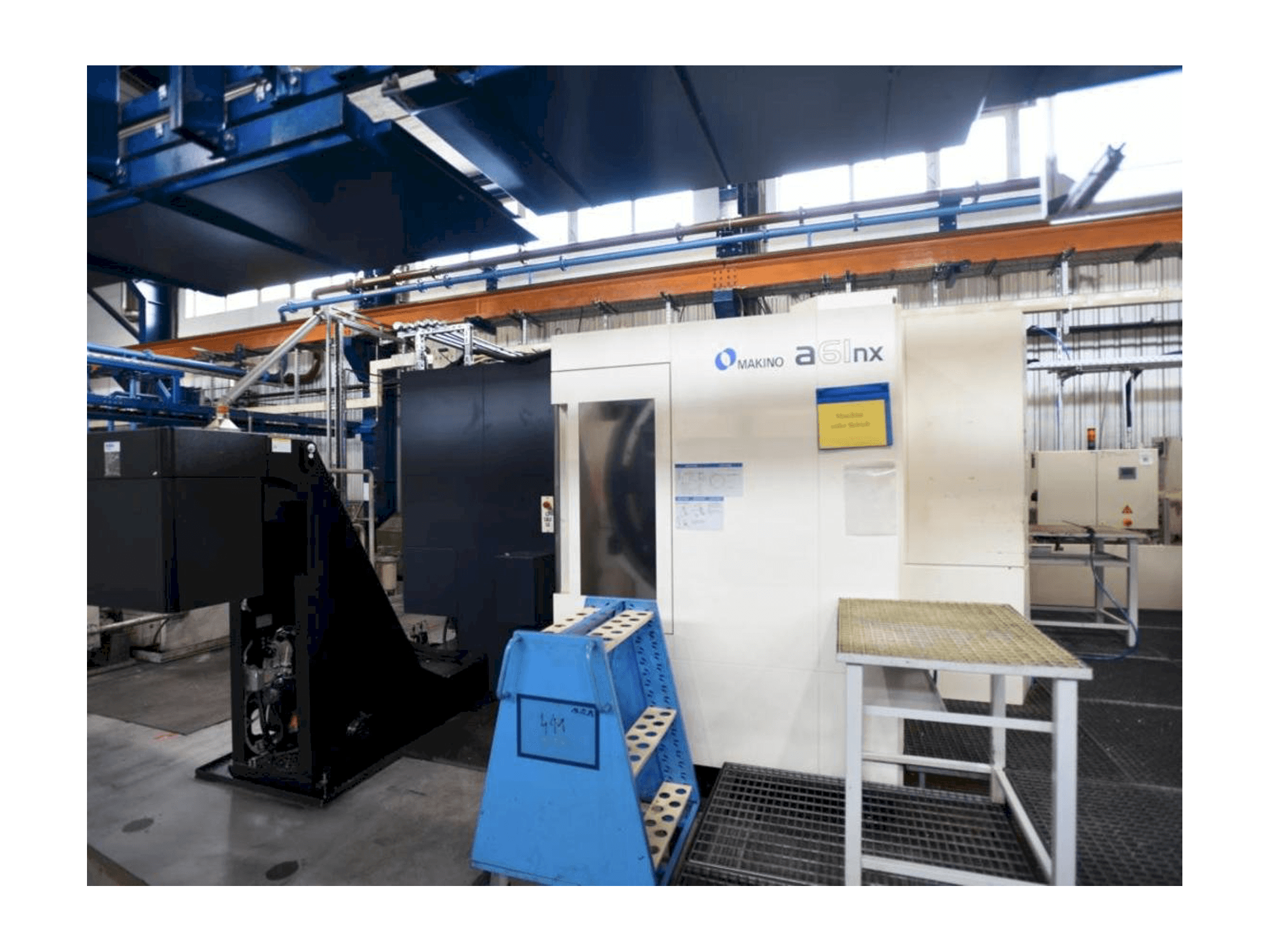

This Makino a61nx Pro 6 Horizontal Machine Center was built in Germany in the year 2019. It is equipped with a Makino Professional 6 control unit. The machine has a spindle speed of 14000 rpm.
Overview
- brand: Makino
- year: 2019
- MODEL: a61nx Pro 6
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: Makino
Technical Information - Makino a61nx Pro 6
Control Unit
- Brand: Makino
- Model: PROFESSIONAL 6
Main drive
- Spindle speed range: 14000 1/MIN
Tools
- Slots in storage: 60
Additional Information
- Technical Machine Benefits:
- - Torque 303 nm
- - Direct thread cutting
- - Nc rotary table (dd motor)
- - Automatic central lubrication
- - Data center 1gb
- - Door interlock of the pallet changer
- - Pallet changer
- - Safety cover of the pallet changer
- - Automatic program start after pallet change two (2) pallets with tapping grid
- - Eight (8) adjustable flushing nozzles on the spindle
- Qualitative Machine Benefits:
- - Coolant flushing in the working area of the machine
- - Terrace flushing
- - Coolant supply centrally through work spindle (15bar) coolant device with scraper belt conveyor lsw880
- - Second filtration for coolant through the spindle (cyclone filter) chip and splash protection as full enclosure of the working chamber
- - Air dryer
- - Visual tool breakage control bts, signal lamp 3-color , helix interpolation, part program memory 2gb
- - 1000 storable programs
- - External spindle orientation
- - Tool radius compensation type c
- - Retracting from threading
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
