➤ Used KUNZMANN BA 1000/810 Vario For sale | gindumac.com

Show in original language

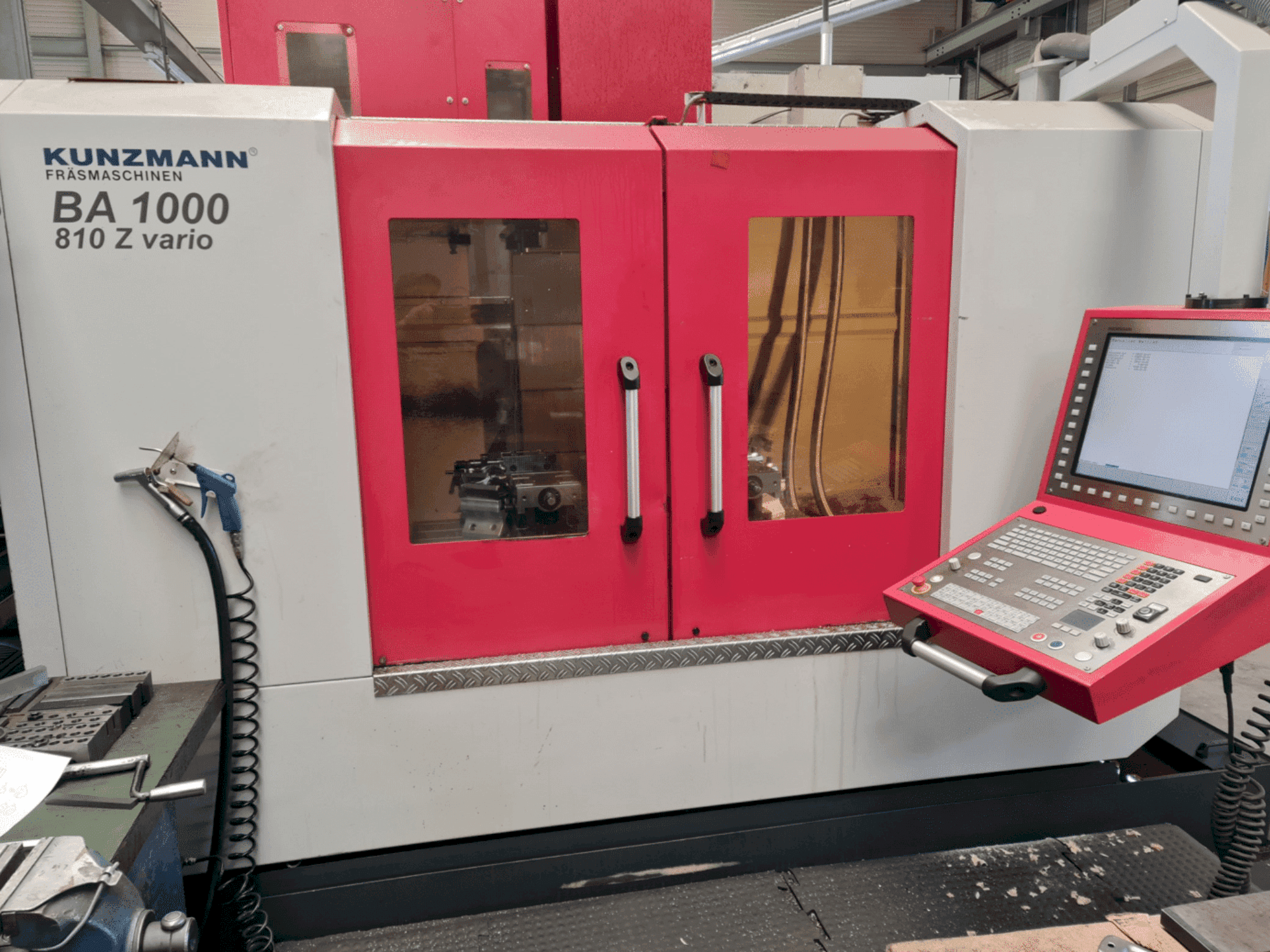

This 4-Axis KUNZMANN BA 1000/810 Vario milling machine, manufactured in 2013, features advanced technology including a Walter with AMF zero point system and an IKZ 25 bar. It offers a broad travel range with X at 1000mm, Z at 800mm, and Y at 600mm. Equipped with a high-performance milling spindle and a spindle speed of 12000 rpm, it ensures precise and efficient operations. The machine also includes a 3D probe and an accuracy package with a direct measuring system in all axes. Reach out for more information about this milling machine.

Overview

brand: KUNZMANN
year: 2013
MODEL: BA 1000/810 Vario
production hours: 19500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN BA 1000/810 Vario

Control Unit

Brand: HEIDENHAIN
Model: iTNC530

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Tool taper: SK40
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 25 bar

Additional Equipment

- 4-axis Walter with AMF zero point system
- Spindle cooling
- 3D probe
- Accuracy package
- Rotary stroke gear WZW
- Complete oscillating arm for WZW
- High-performance milling spindle In-Line
- Electronic handwheel HR 410
- Hinged belt conveyor
- Fixed tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The machine has no extraction system, but can be connected via an existing roof opening

Extra information

- Rapid traverse reduced, seal diameter Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
