KOVOSVIT MAS - MCV 500DE-MIL-KOV-2002-00001

Name: KOVOSVIT MAS MCV 500
Brand: KOVOSVIT MAS
SKU: DE-MIL-KOV-2002-00001
Price: 12500 GBP
Availability: InStock

£ 12,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS MCV 500 For Sale | gindumac.com

Show in original language

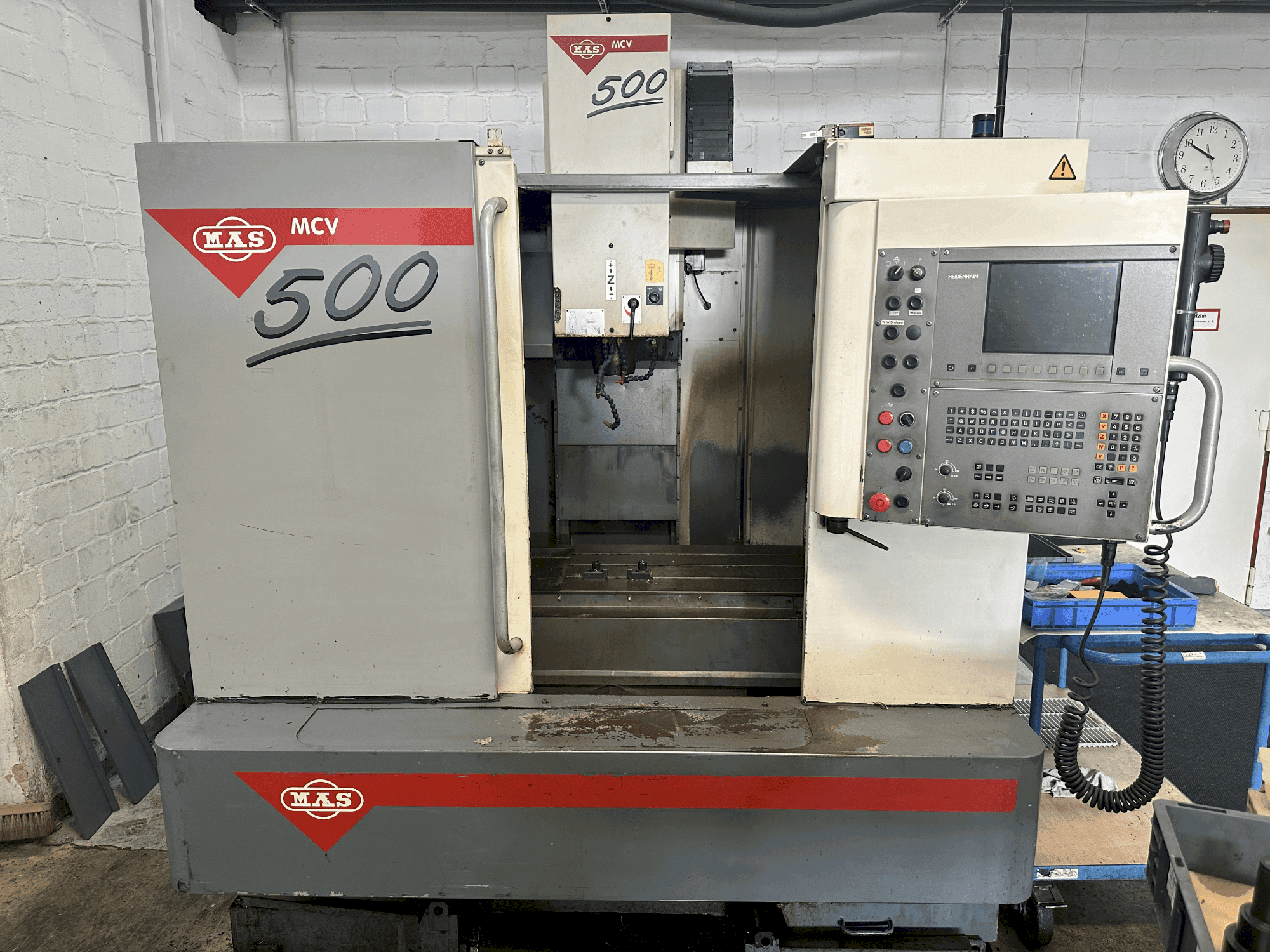

This 3-axis KOVOSVIT MAS MCV 500 vertical machining centre was manufactured in 2002. It features a robust table with dimensions of 800x500mm, capable of handling a maximum load of 400kg. The spindle supports a speed range of 20-8000 rpm and a rapid feed of 25000 mm/min. The tool magazine holds 20 positions. Ideal for precision machining, the KOVOSVIT MAS MCV 500 machine we have for sale. Contact us for further details regarding this vertical machining centre.

Overview

brand: KOVOSVIT MAS
year: 2002
MODEL: MCV 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - KOVOSVIT MAS MCV 500

General Data

Measurements width: 2390 mm
Measurements depth: 2320 mm
Measurements height: 2560 mm
Machine weight: 3800 kg

Main drive

Number of spindles: 1
Spindle speed range: 8000 RPM 1/MIN
Tool taper: 40 (7:24)
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Table

Number of tslots: 3
Table load: 400 kg

Additional Equipment

- Diameter when drilling into solid steel with strength 600 MPa with drill made of RO: 25 mm
- Tool Shanks: CSN 220434
- Spindle Diameter for Bearing: 70 mm
- Spindle Distance from Table Surface: 150-650 mm
- Rapid Feed: 25000 mm/min
- Feed Rate: 1-5000 mm/min
- Working Pressure: 0.6 MPa
- Tool Magazine: Max. tool diameter: 80 mm, Max. tool weight: 6 kg, Max. tool weight in magazine: 60 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: 800 x 500 mm
- - Width and pitch of t-slots: 18/125 mm
Qualitative Machine Benefits:
- - Robust construction with a maximum table load of 400 kg, efficient operation with rapid feed of 25000 mm/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
