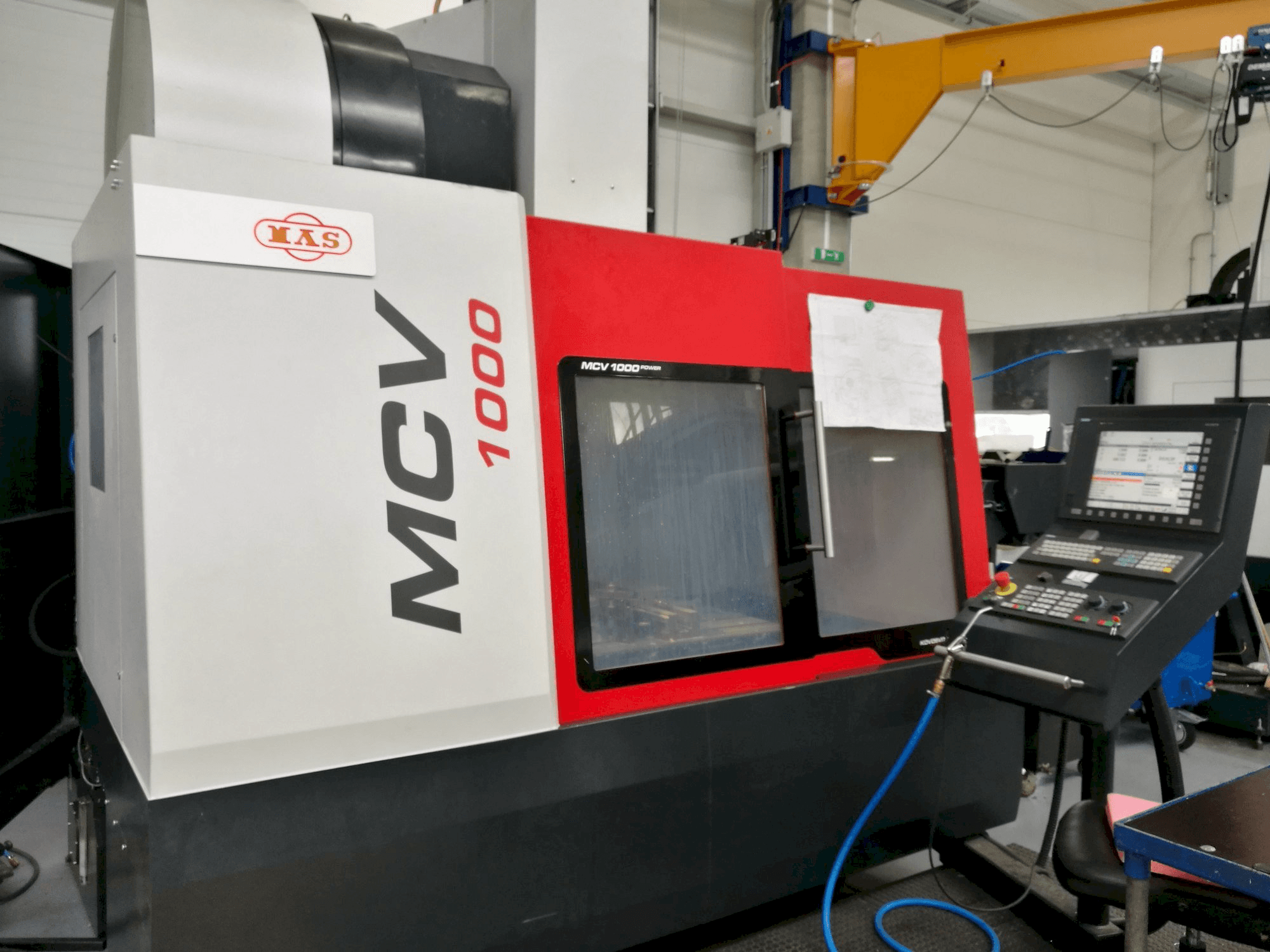

KOVOSVIT MAS MCV 1000 Power Vertical Machining Center

Show in original language

This KOVOSVIT MAS MCV 1000 Power Vertical Machining Center was made in the year 2016 in the Czech Republic. It has been working for only 1000 hours. It is operated through a Siemens Sinumerik 840D control unit, This machine can work with a spindle speed range up to 8000 rpm.

Overview

brand: KOVOSVIT MAS
year: 2016
MODEL: MCV 1000 Power
production hours: 1000
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - KOVOSVIT MAS MCV 1000 Power

General Data

Measurements width: 4600 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 11500 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1300 mm
Outer width: 670 mm
TSlots size: 5
Distance between: 125 mm

Tools

Slots in storage: 40
Max tool diameter: 125 mm
Max tool length: 400 mm
Type of tool holder: ISO 50

Media

Power consumption: 55 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 28 / 43 kw
- - Spindle torque (s1/s6 - 40%) 406 / 623 nm
- - Work feed x, y, z 40000 mm. Min-1
- - Rapid feed x, y, z 40 m. Min-1
- - Thermal compensation
- - Ethernet
- - Automatic lubrication of moving parts
- - Direct measuring system
- - Cooling aggregate for external cooling
Qualitative Machine Benefits:
- - Machine like new
- - In operation since 2018

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
