KONDIA - A10HU-MIL-KON-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

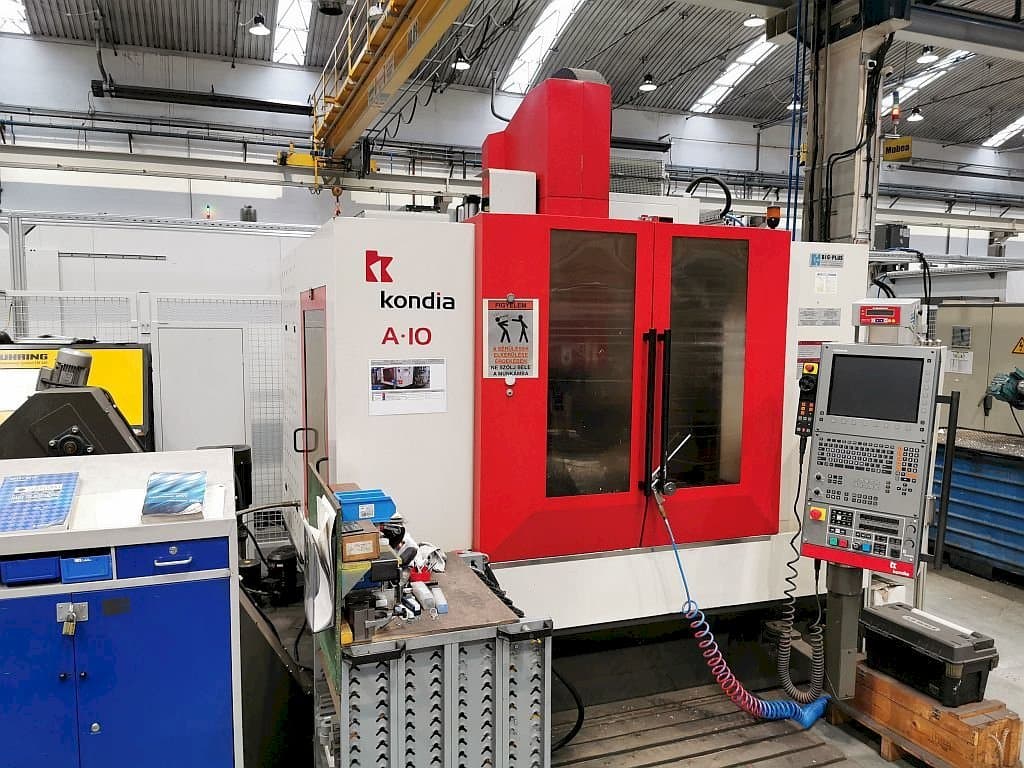

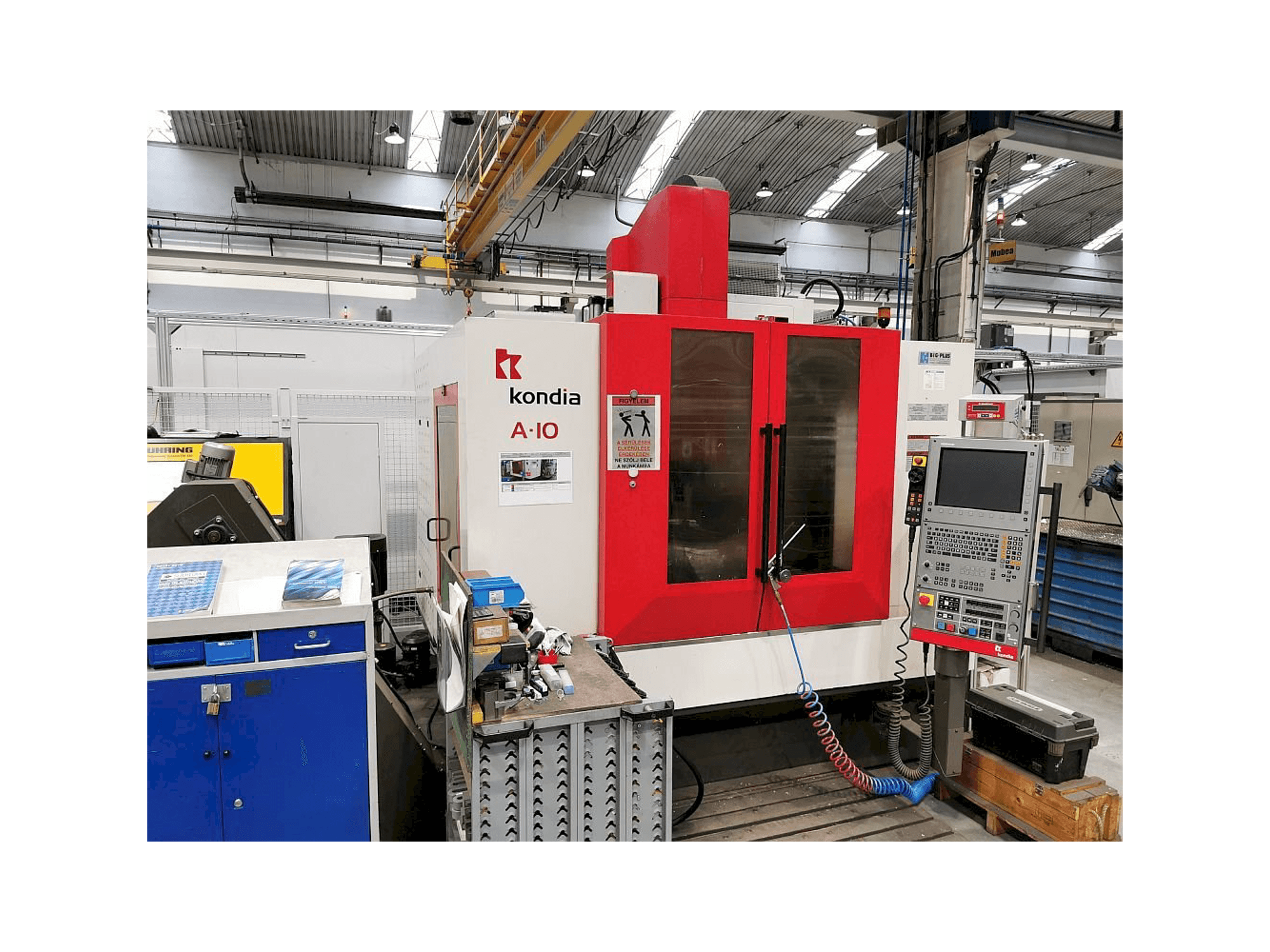

This KONDIA A10 Vertical Machining Center was built in 2010. It is operated through a HEIDENHAIN iTNC530 Control unit. This 3 axis machine works with a spindle speed up to 12000 rpm and it is 4th axis prepared. It includes an electric handwheel, IKZ 40 bar, a RENISHAW zero point meter and a spindle cooler. This machine is still in production and it is in very good conditions.

Overview

brand: KONDIA
year: 2010
MODEL: A10
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KONDIA A10

General Data

Measurements width: 2100 mm
Measurements depth: 2650 mm
Measurements height: 2900 mm
Machine weight: 6300 Kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC530

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm

Table

Outer length: 1200 mm
Outer width: 500 mm
Table load: 850 Kg

Media

Pump drive power: 15 kW
Power consumption: 38.5 kVA

Additional Equipment

- Electric handwheel
- IKZ 40 bar
- spindle cooler
- RENISHAW zero point meter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pick-up big plus sk40
- - Atc magazine 40-fold
- - Coolant tank capacity 300 l
- - 4th axis prepared
- - Y path 500 mm
- - Z path 610 mm
Qualitative Machine Benefits:
- - Documentation available
- - The machine is still in production
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
