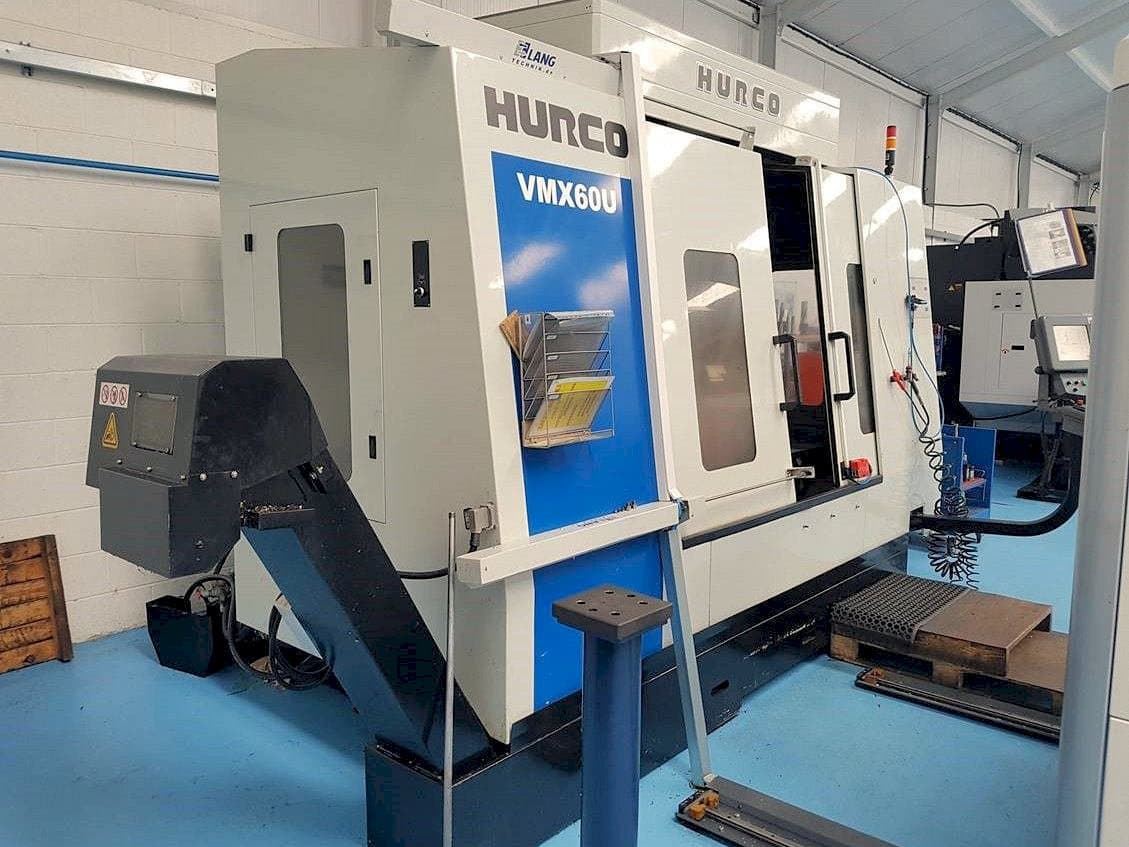

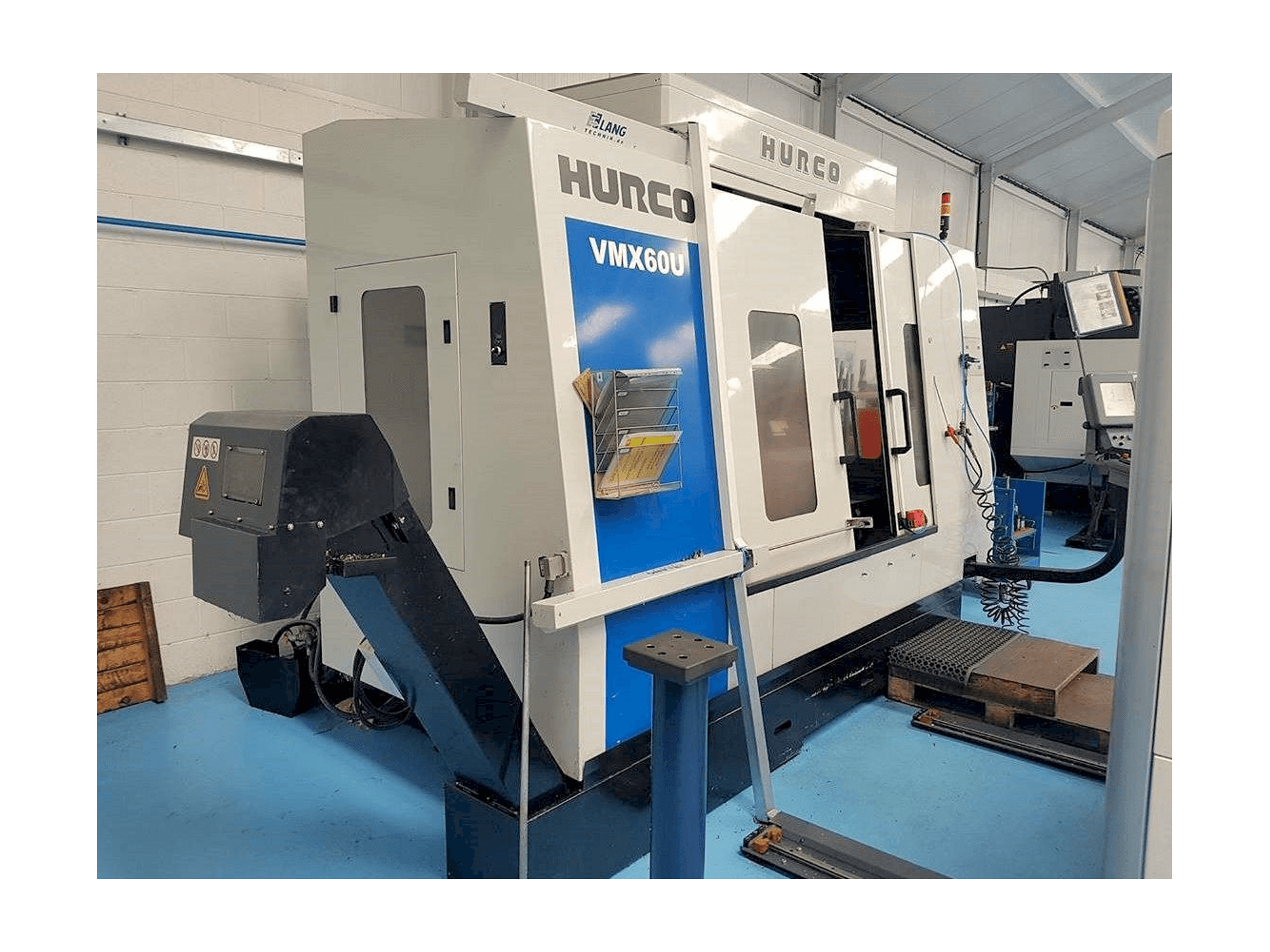

Hurco VMX 60U Vertical Machining Center

Show in original language

This Hurco VMX 60U Vertical Machining Center was made in 2013 in the United Kingdom. It has a working history of 13209 production hours. It is equipped with a Hurco WinMax control unit. This 5 axis machine can work with a spindle speed up to 12000 rpm. It presents good conditions.

Overview

brand: Hurco
year: 2013
MODEL: VMX 60U
production hours: 13209
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 60U

General Data

Measurements width: 5435 mm
Measurements depth: 4500 mm
Measurements height: 2844 mm
Machine weight: 8545 kg

Control Unit

Model: WinMax
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 18 kW

Movement

X-AXIS Movement: 1524 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 520 mm
A-AXIS Movement: +30°/-110° MM
C-AXIS Movement: 0.001 degree (360 degrees) MM

Table

Outer length: 500 mm
Outer width: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - "min - max height under spindle 89 - 610 mm"
- - Interlocked guards
- - Coolant
- - Low volt light
- - Rapid feedrates x y z 30 / 30 / 20 m/min
- - Dxf conversion
- - 5 axis
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
