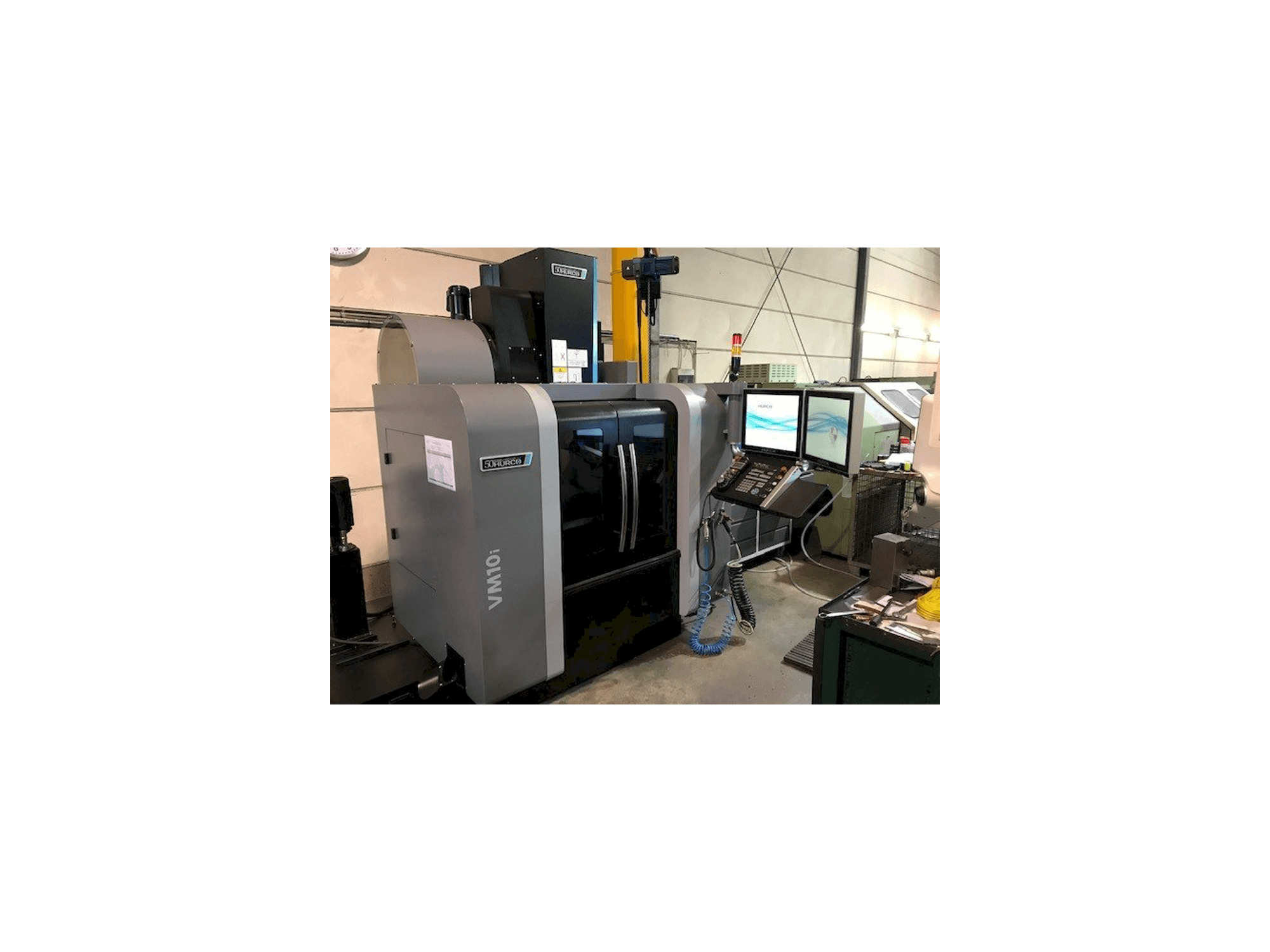

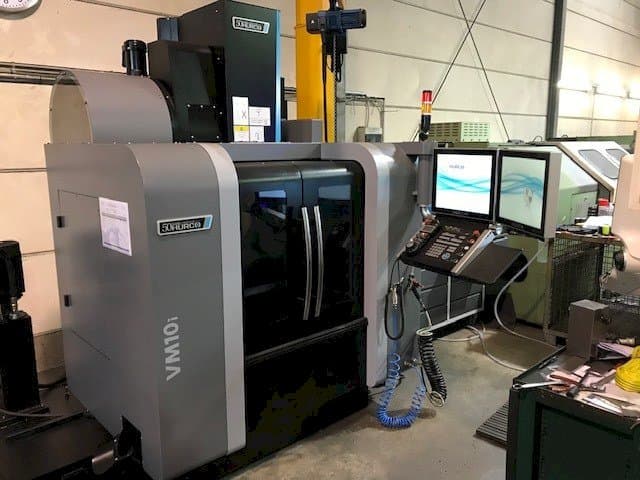

This Hurco VM10i Vertical Machining Center was built in Taiwan in the year 2018. It has been operative for only 170 hours. This 3 axis machine performs through a MAX5 control unit equipped with a 2 x 19" LCD colour screen. It works with a spindle speed up to 12000 rpm.

Overview

brand: Hurco
year: 2018
MODEL: VM10i
production hours: 170
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Hurco VM10i

General Data

Measurements width: 3204 mm
Measurements depth: 3363 mm
Measurements height: 2564 mm
Machine weight: 2850 kg

Control Unit

Interface: Network-Ethernet-USB
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 11 kw
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
X-AXIS Working Feed: 24 m/min
X-AXIS Feed Force: 7.8 kn
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Working Feed: 24 m/min
Y-AXIS Feed Force: 7.8 kn
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Working Feed: 24 m/min
Z-AXIS Feed Force: 7.8 kn
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 762 mm
Outer width: 406 mm
Table load: 682 kg

Tools

Max weight: 7 kg
Max tool diameter: 89 mm
Max tool length: 250 mm
Type of tool holder: SK40

Media

Main electronic connection: 400 v
Power consumption: 16 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque max. 61 nm
- - T-slots (din 650) 3 x 18 h8 x 100
- - Spindle nose - table: 102 - 610 mm
- - Magazine places / optional: 20
- - Coolant tank capacity 62 l
- - Screw conveyor: standard

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
