HERMLE C800 U Machining centers (vertical)

Show in original language

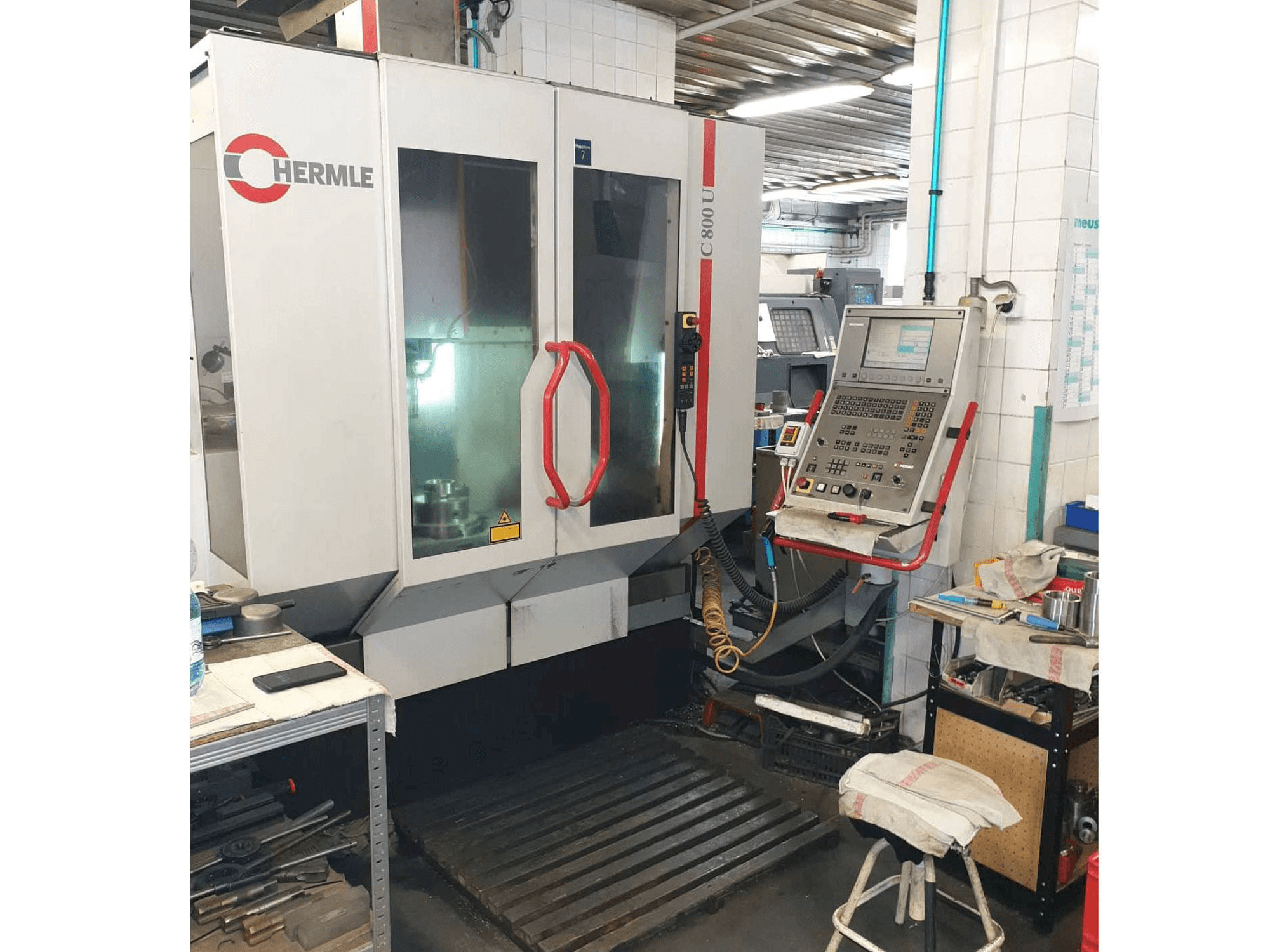

This HERMLE C800 U vertical machining center was built in 1998. It has 73386 spindle hours. It is equipped with a HEIDENHAIN TNC 430 control unit. This 5 axis machine operates with a spindle speed up to 36000 rpm. It comes electrical hand wheel. Very good condition.

Overview

brand: HERMLE
year: 1998
MODEL: C800 U
production hours: 73386
application type: Milling
Location: Hungary
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C800 U

General Data

Measurements width: 2850 mm
Measurements depth: 3450 mm
Measurements height: 2700 mm
Machine weight: 8000 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 36000 1/MIN
Spindle motor power: 10,5 kW
Tool taper: HSK 40
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Table

Table load: 300 kg

Media

Main electronic connection: 400 V
Power consumption: 31 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electrical hand wheel
- - Feed range 30. 000 mm/min
- - Rapid traverse 30 m/min
- - Tool change unit 30 pos.
- - Coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
