HAAS - ST-40IT-TUR-HAA-2019-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

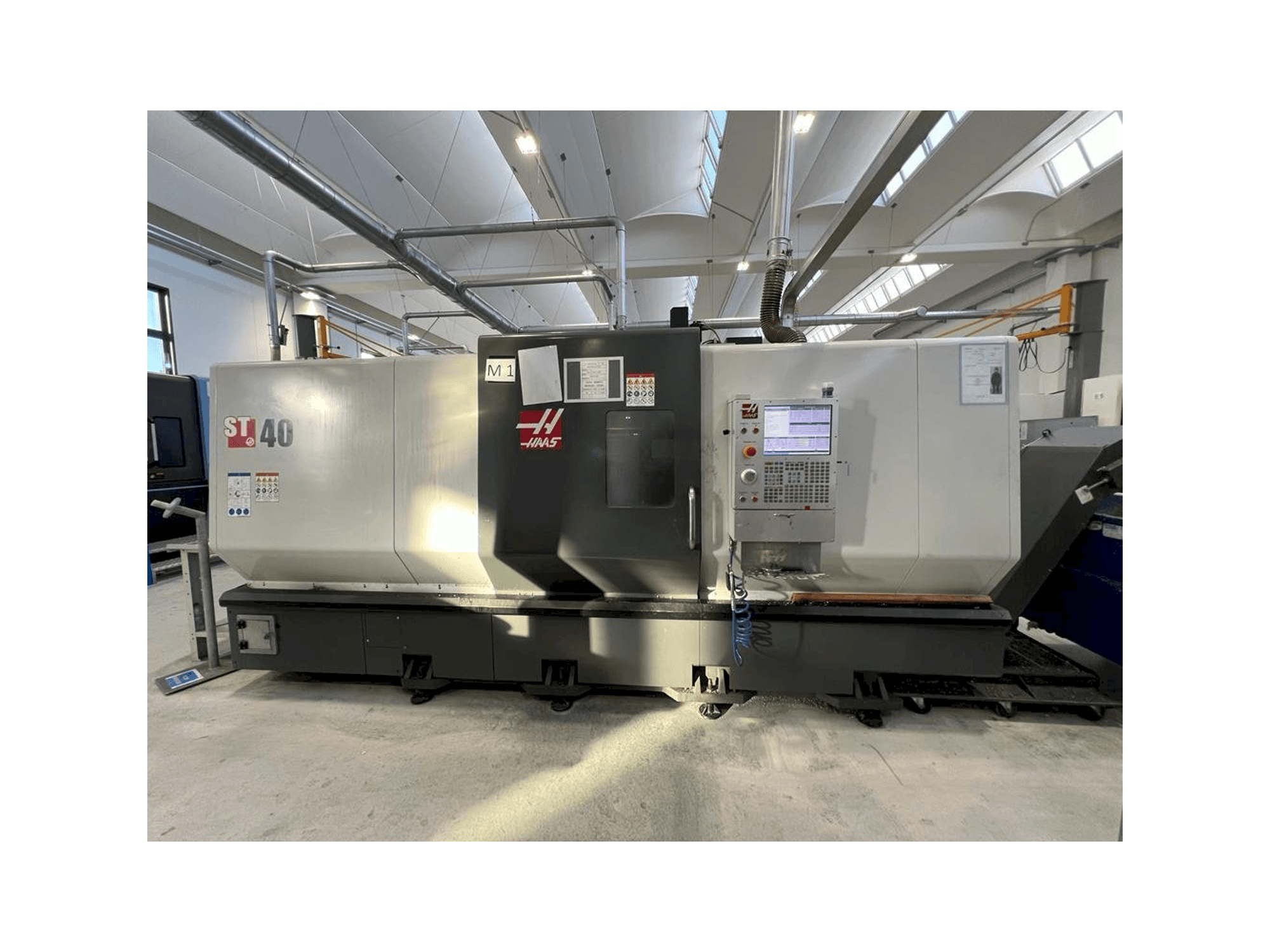

This HAAS ST-40 Lathe was manufactured in the year 2019 in the United States and has 20000 production hours, of which 3300 are cutting hours. It is equipped with a HAAS CNC control unit. The machine has a spindle speed of 2400 rpm. There are 2 units available.

Overview

brand: HAAS
year: 2019
MODEL: ST-40
production hours: 20000
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-40

Control Unit

Model: CNC
Brand: HAAS

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 29.8 kW
Tool taper: A2-8

Movement

X-AXIS Movement: 432 mm
X-AXIS Rapid traverse: 18.0 m/min
Z-AXIS Movement: 1118 mm
Z-AXIS Rapid traverse: 18.0 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2-speed range gearbox
- - Spindle hole 117. 3 mm
- - Through hole 102 mm
- - Chuck diameter 381 mm
- - Vault 876 mm
- - Diameter to be machined 648 mm
- - 12-position tool turret
- - Usb port
- - Rigid tapping
- - Conveyor belt chip conveyor
Qualitative Machine Benefits:
- - Automatic presetting
- - High pressure refrigeration 21 bar
- - Std. Tool holder kit (2)
- - Machine maintained perfectly working

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
