Forest Line Seramill 240 Milling Machine

Show in original language

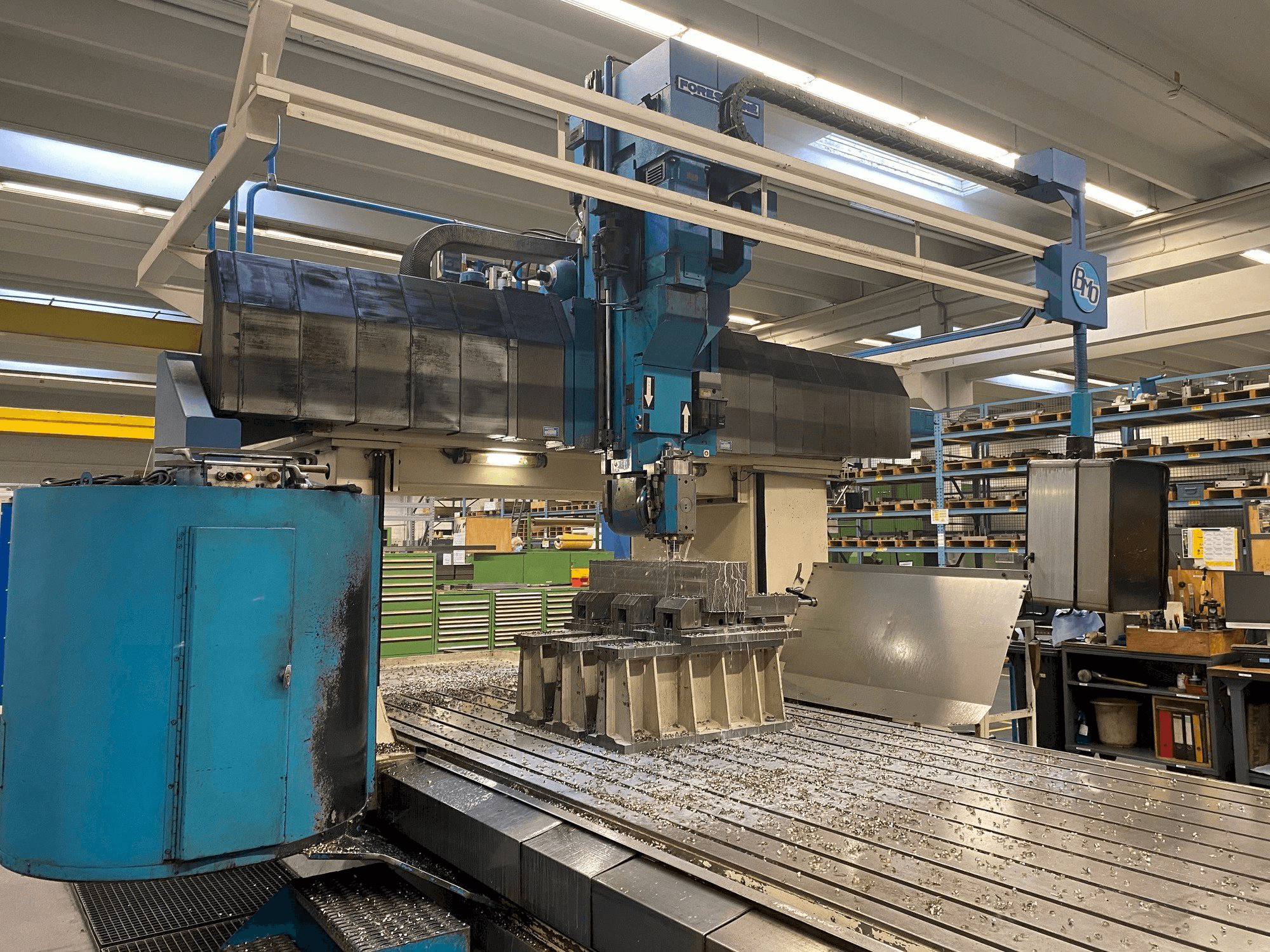

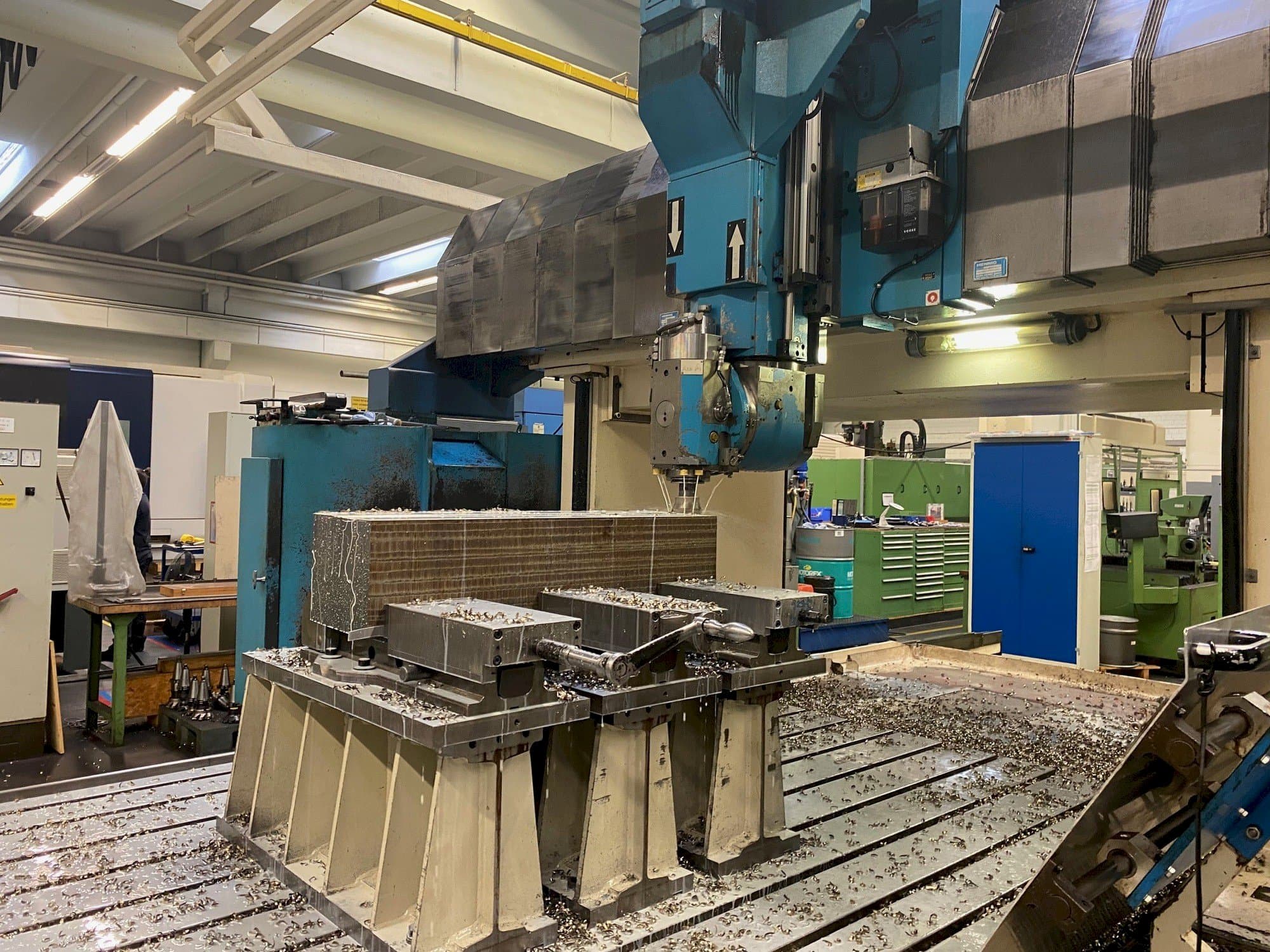

This Forest Line Seramill 240 Milling Machine was built in the year 1990 and is a 5-axis machine operating with a spindle speed up to 2500 rpm, and a cutting speed of 10000 rpm. It is equipped with a NUM 760 F control unit.

Overview

brand: Forest Line
year: 1990
MODEL: Seramill 240
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold

Technical Information - Forest Line Seramill 240

General Data

Measurements height: 4595 mm
Machine weight: 51000 kg

Control Unit

Model: 760 F

Main drive

Spindle speed range: 2500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 10000 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 2115 mm
Outer width: 10000 mm
TSlots size: 28 mm
Distance between: table: 700 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting speed: 10000 mm/ min
- - Vertical cutting: 950 mm
- - The travel in the z-axis is reduced depending on the position of the head up to 685 mm
- - The axes a and c is a swivel head and can be indexed in 2. 5 degree steps
- - Swivel range c axis 0-360 degrees
- - Swivel range a axis 80-290 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
