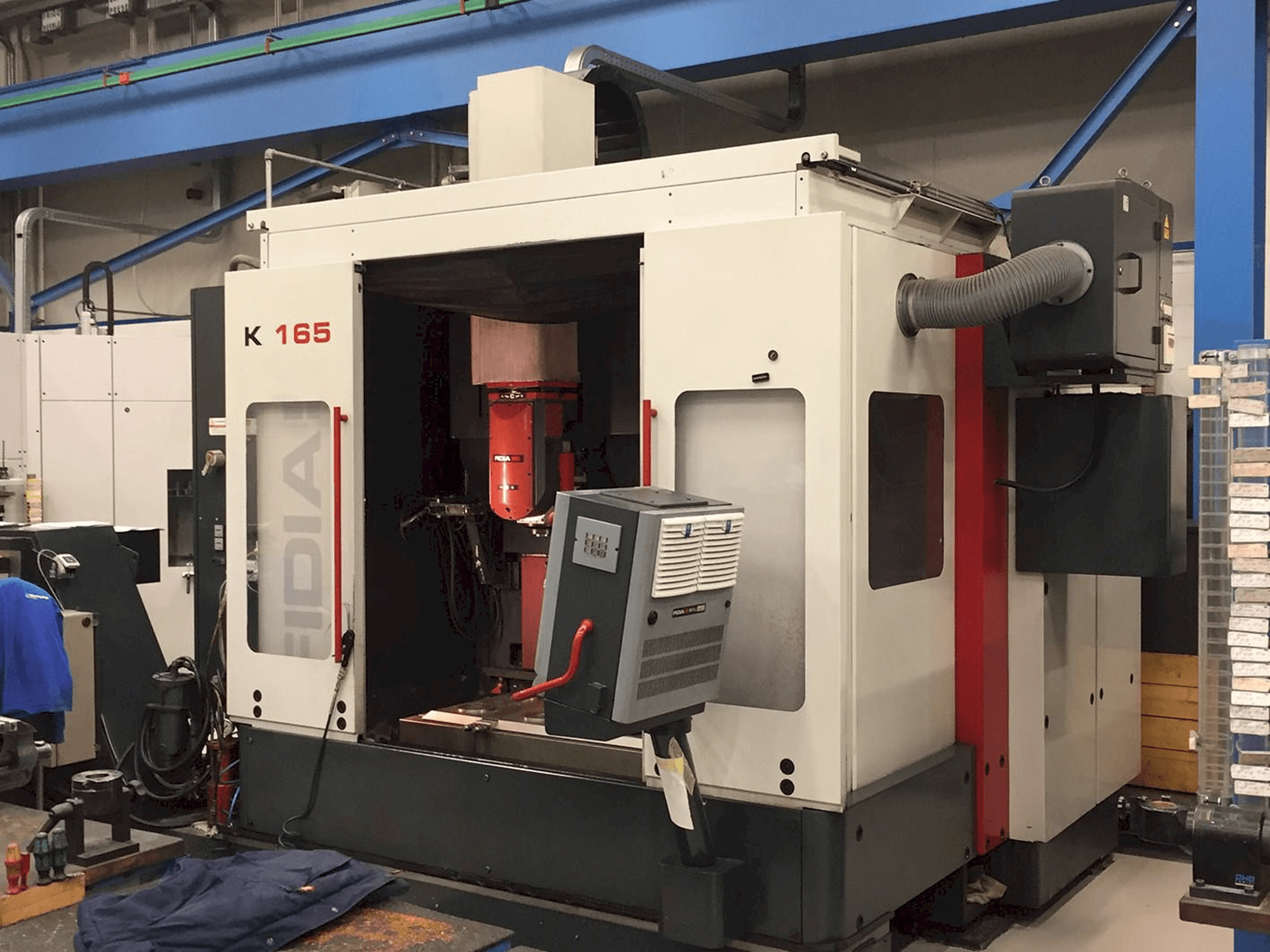

Fidia K165 BSH Vertical Machining Center

Show in original language

This Fidia K165 BSH Vertical Machining Center was built in the year 2003 in Italy. It has a new spindle since september 2019 and counts with a 500 spindle hours. It has a spindle speed range 30000 rpm. It is operated through a Fidia PCN775 control unit.

Overview

brand: Fidia
year: 2003
MODEL: K165 BSH
production hours: 72277
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FIDIA

Technical Information - Fidia K165 BSH

General Data

Measurements width: 3723 mm
Measurements depth: 3750 mm
Measurements height: 3370 mm
Machine weight: 12000 kg

Control Unit

Model: PCN775
Brand: FIDIA

Main drive

Spindle speed range: 30000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 620 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1400 mm
Outer width: 820 mm
Height adjustment: 700 mm
Table load: 2000 kg

Media

Main electronic connection: 400 V 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chip conveyor and exhaust for milling graphite electrodes.
- - Hms to calibrate the machine.
- - Possibly also stark clamping system with plates and different milling holders hsk50
Qualitative Machine Benefits:
- - Spindle replacement in september 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
