FANUC - Robocut Alpha-CiBES-EDM-FAN-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FANUC Robocut Alpha-CiB Erosion Machine

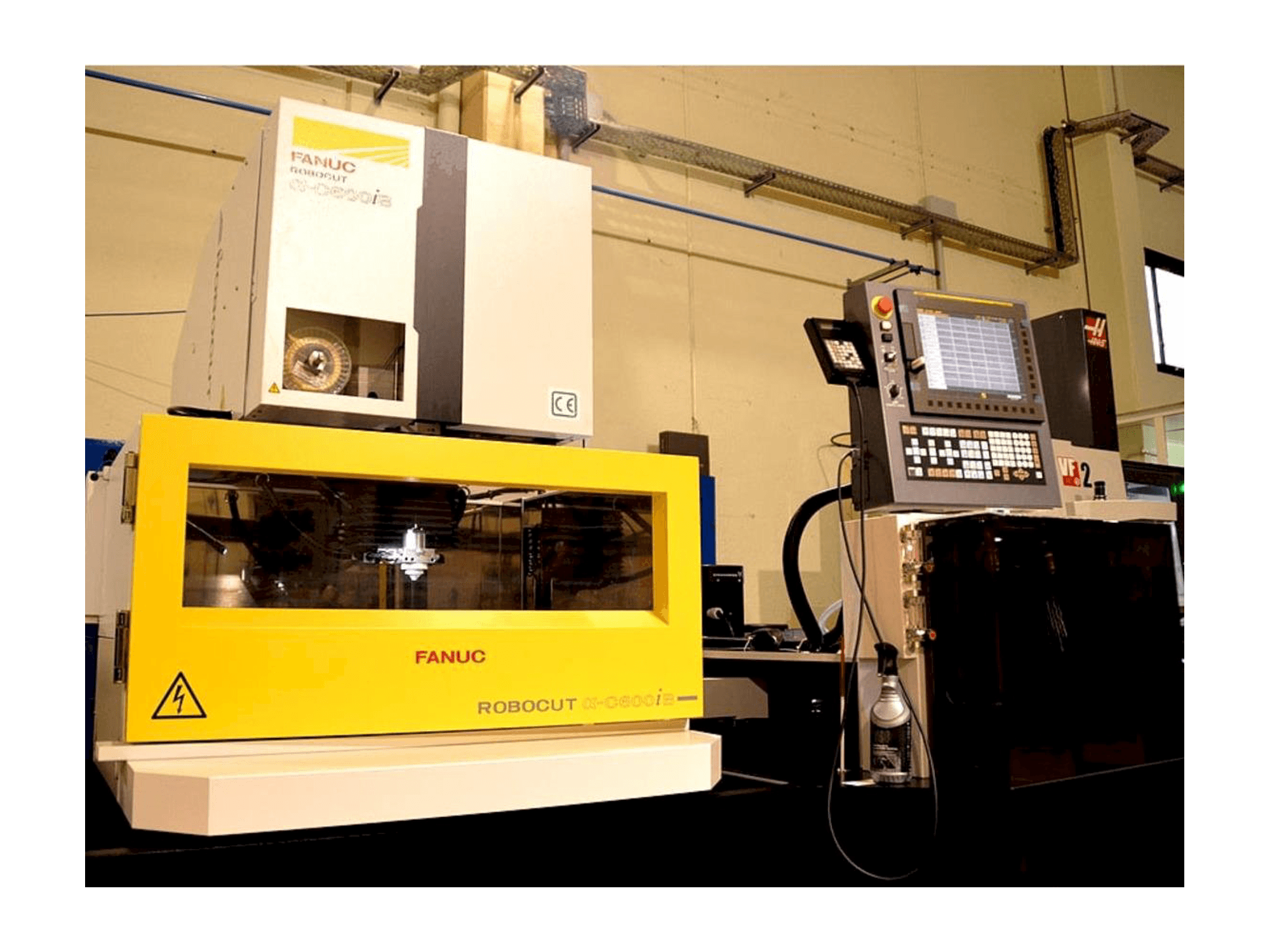

This FANUC Robocut Alpha-CiB Erosion Machine was built in the year 2019 in Japan. It has 3 axis and operates with a Fanuc 31i-WB control unit. The machine has only 550 production hours and works with a wire diameter of 0,10-0,30 mm. The machine is like new and presents very good conditions.
Overview
- brand: FANUC
- year: 2019
- MODEL: Robocut Alpha-CiB
- production hours: 550
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: Fanuc
Technical Information - FANUC Robocut Alpha-CiB
General Data
- Measurements width: 2440 mm
- Measurements depth: 3080 mm
- Measurements height: 2160 mm
- Machine weight: 3000 kg
Control Unit
- Brand: Fanuc
- Model: 31i-WB
Main drive
- Wire diameter: 0,10-0,30 mm
- Number of axis: 3
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 310 mm
Workpiece
- Workpiece x: 1050 mm
- Workpiece y: 820 mm
- Workpiece z: 300 mm
- Workpiece weight: 1000 kg
Media
- Main electronic connection: 200/220 v - 50/60 Hz
Additional Information
- Qualitative Machine Benefits:
- - Little working hours (550 hours)
- - As new machine
- - Perfecto condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
