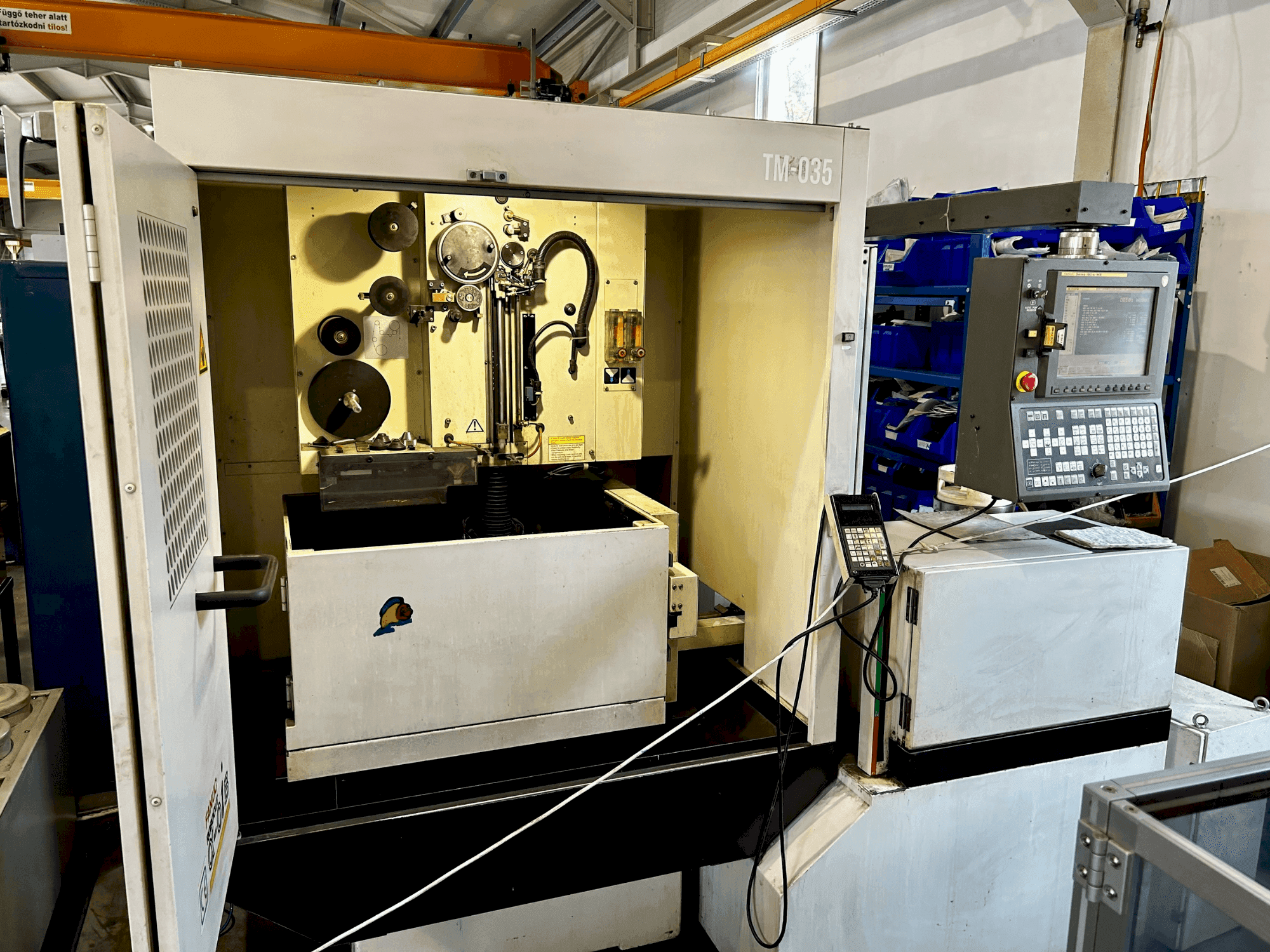

FANUC - Robocut α-0iBHU-EDM-FAN-2003-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max taper angle: ± 30° / 80 mm (standard) | ± 45° / 40 mm (option)
  • - Wire diameter: 0. 1 to 0. 3 mm
  • - Wire tension: 250 to 2500 g
  • - Wire feedrate: 0 to 15 mm/s
  • - Wire guide clearance: 5 µm
  • - Dielectric fluid: demineralized water
  • - Tank capacity: 390l (small) | 530l (large)
  • - Filtering flow rate: 60 l/min (small) | 65 (75) l/min (large) // filtering precision: 2 to 10 µm // filter: paper filter × 2
  • - Ion exchange resin: 10l × 1 (standard) | 10l × 2 (option)
  • - Dielectric resistivity control: (1. 0 to 20) × 10⁴ Ω·cm

Extra information

• - Driving Motors: AC Servo Motors Movement Max Table Feedrate: 900 mm/min Minimum Table Travel: 0.0001 mm Rapid Traverse: 900 mm/min Cutting Feedrate: 0.0001 to 50 mm/min Workpiece Max Workpiece Dimensions: Submerged: 650 × 450 × 180 mm (small) | 790 × 730 × 300 mm (large) Flushing: 680 × 420 × 180 mm Max Workpiece Weight: Submerged: 500 kg (small) | 1000 kg (large) Flushing: 500 kg Table Table Stroke: Small: 320 × 220 mm Large: 520 × 370 mm
