ENSHU JE30S Horizontal Machining Center

Show in original language

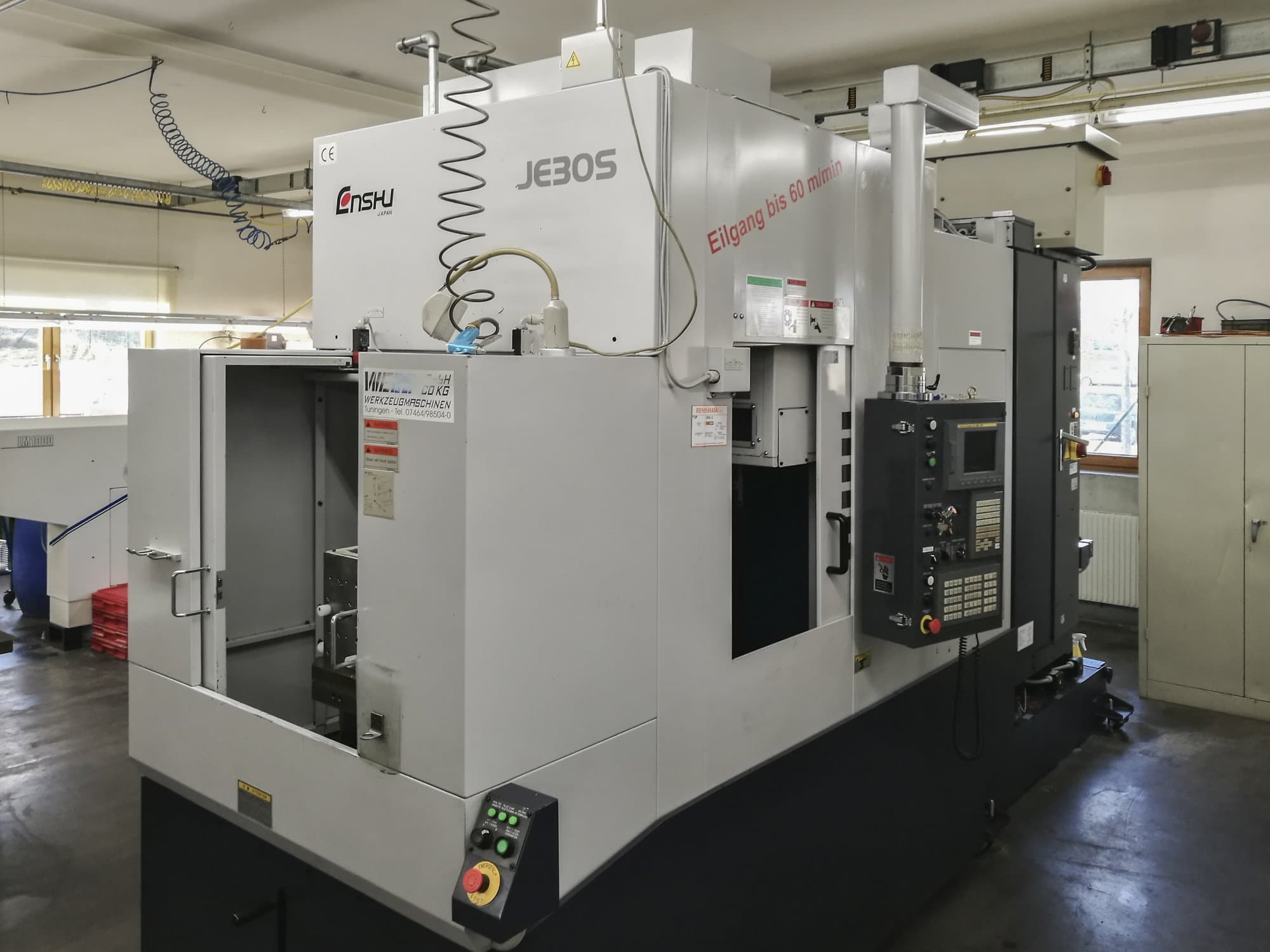

This ENSHU JE30S Horizontal Machining Center was manufactured in 2008 in Japan and has a working record of only 5658 working hours. Equipped with a FANUC 21i-MB Control unit, this machine was in 1 shift operation only and got inspected annually. This equipment, which comes with an additional measuring probe, a tool holder and a modular tombstone, is therefore in a very good condition and has mainly worked copper up to 10 mm in the past.

Overview

brand: Enshu
year: 2008
MODEL: JE30S
production hours: 5658
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Enshu JE30S

General Data

Measurements width: 4150 mm
Measurements depth: 1230 mm
Measurements height: 2420 mm
Machine weight: 4400 kg

Control Unit

Brand: FANUC
Model: 21i-MB

Main drive

Number of spindles: 1
Spindle speed range: 13000 1/min

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 450 kg

Table

Outer length: 320 mm
Outer width: 320 mm

Tools

Max weight: 3 kg
Max tool diameter: 75 mm
Max tool length: 200 mm

Media

Main electronic connection: 200 V / 50 Hz
Power consumption: 19 kVA
Air pressure: 6 bar
Lubrication tank: 300 L
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Measuring probe
- Toolholder
- Modular tombstone

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
