EMCO - Concept Mill 450AT-MIL-EMC-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
EMCO Concept Mill 450 Milling Machine

Show in original language

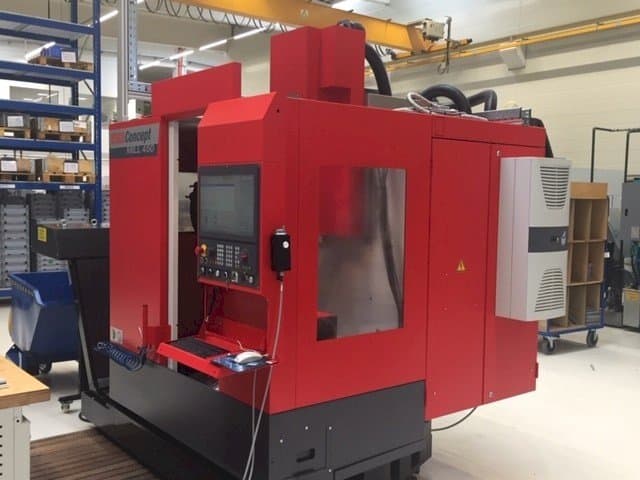

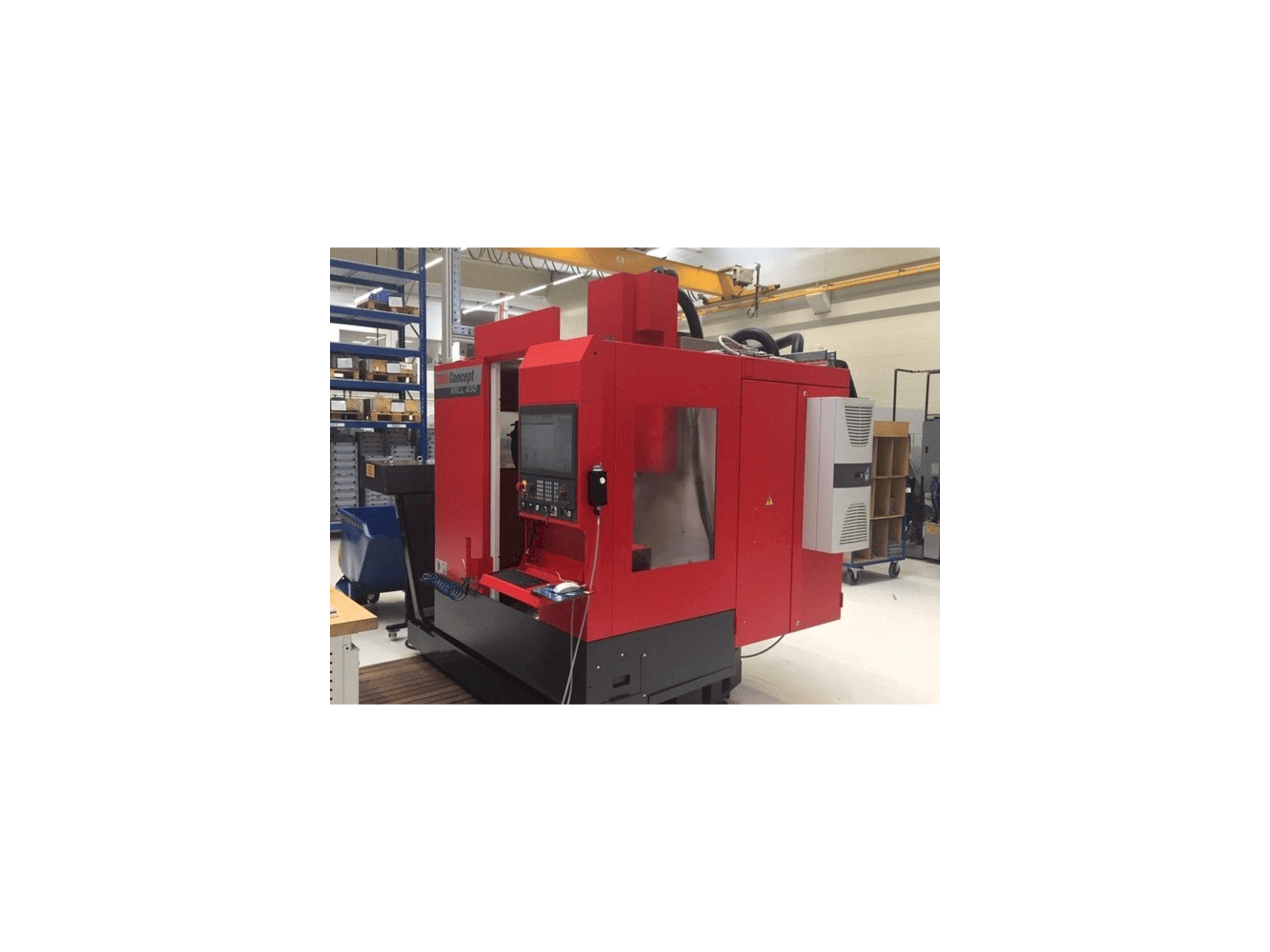

This EMCO Concept Mill 450 Milling Machine was manufactured in 2017 in Austria. It has been operative for only 6937 hours since then. It is operated through a Emco Win NC control unit. This machine can work with a spindle speed up to 12000 rpm. This machine is as good as new, and has only been used for educational purposes.

Overview

brand: EMCO
year: 2017
MODEL: Concept Mill 450
production hours: 6937
application type: Milling
Location: Austria
machine type: CNC Milling Machine
availability: Sold
control unit brand: EMCO

Technical Information - EMCO Concept Mill 450

General Data

Measurements width: 2040 mm
Measurements depth: 2545 mm
Measurements height: 2920 mm
Machine weight: 4200 kg

Control Unit

Model: WIN NC
CNC main language: German
CNC language customizable: Yes
Brand: EMCO

Main drive

Number of spindles: 1
Spindle speed range: 50 - 12000 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 700 mm
Outer width: 520 mm
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: 80 - 125 mm
Max tool length: 250 mm
Type of tool holder: SK40 DIN 69871

Media

Main electronic connection: 3x400 V

Additional Equipment

- 4 axes indexable

Additional Information

Machine history

Material type: Steel, plastics, chopper aluminium
End product: Samples
Industries: Aerospace technology

Machine Benefits

Technical Machine Benefits:
- - Linear rolling guide 35mm
- - Very stable casted basement
- - Cooling sytem
Qualitative Machine Benefits:
- - Very little working time
- - Very good conditions
- - Good treated and cleaned
- - Good technology

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
