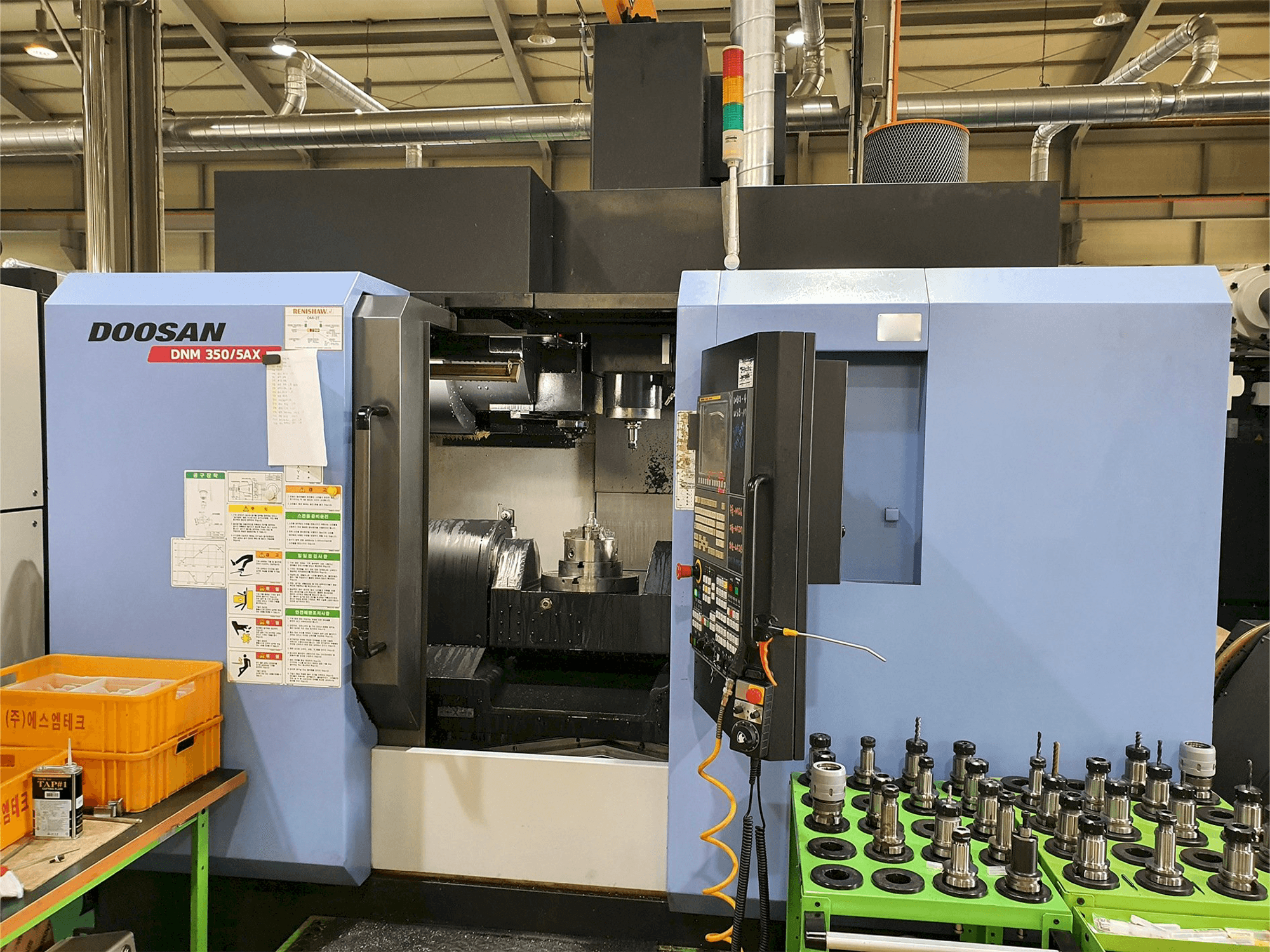

Doosan DNM350/5AX Vertical Machining Center

Show in original language

This Doosan DNM350/5AX Vertical Machining Center was built in the year 2015. It is equipped with a FANUC 31i-B5 control unit. This 5 axis machine operates with a spindle speed up to 12000 rpm. It includes an automatic tool measurement and manual books.

Overview

brand: DOOSAN
year: 2015
MODEL: DNM350/5AX
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM350/5AX

Control Unit

Model: 31i-B5
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 655 mm
Z-AXIS Movement: 500 mm

Table

Table load: 250 KG

Media

Main electronic connection: 220V / 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis deg. : 150 (+30 ~ -120)
- - C-axis deg. : 360
- - Max. Workpiece swing diameter x height : Ø400 x 335mm
- - Table size: Ø350 mm
- - Oil cooler
- - Direct spindle type
- - Magazine tool capacity : 40ea
- - Tsc 20 bar
- - Linear scale (x, y, z, a, c)
- - Automatic tool measurement
Qualitative Machine Benefits:
- - Guideway type:lm guide
- - Call right(led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
