- DMG SAUER LASERTEC 50 5-axis laser precision machine

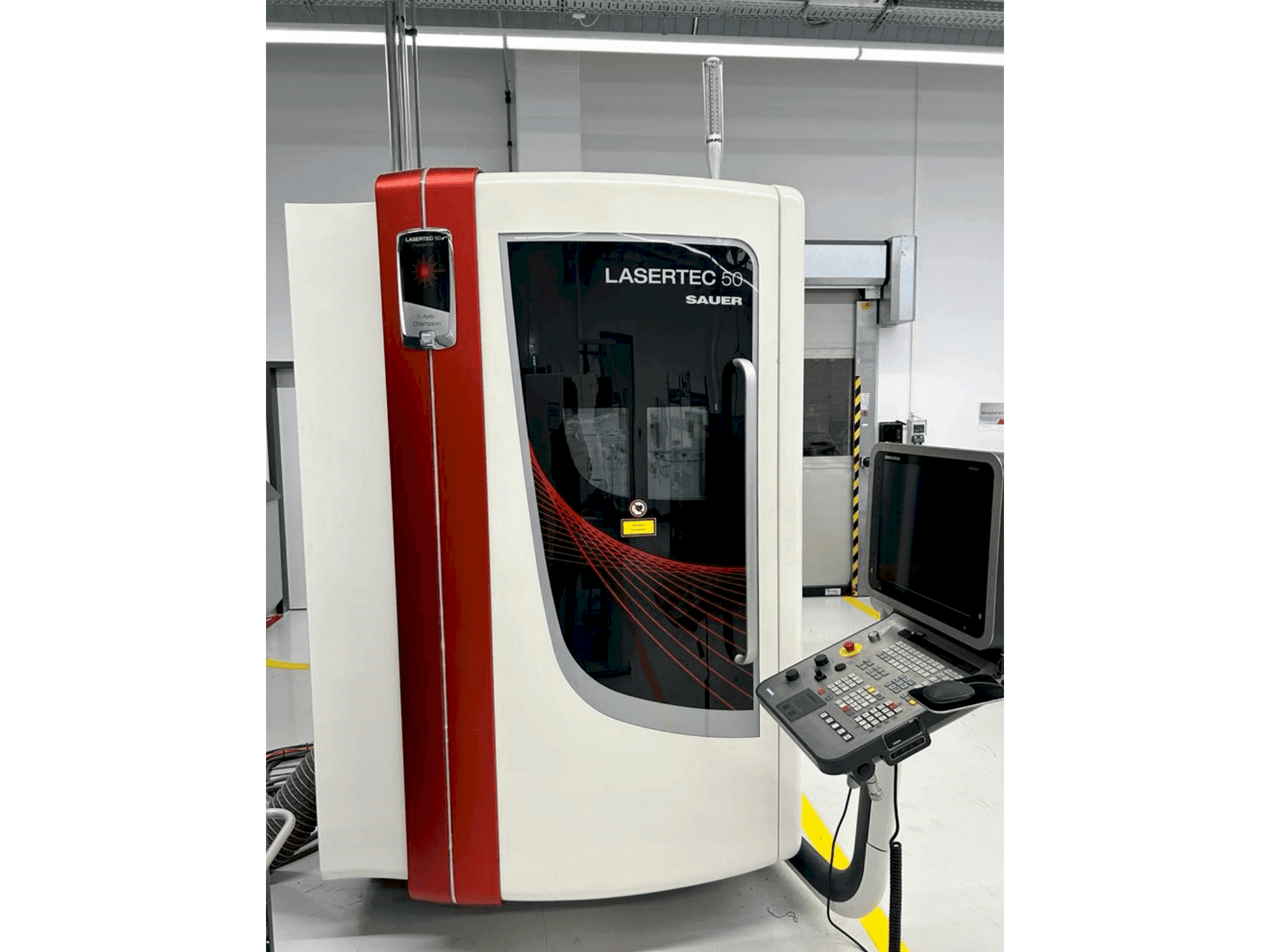

This DMG SAUER LASERTEC 50 5-axis laser precision machine was manufactured in the year 2010 in Germany. It is currently still in production but with direct availability. It is in a very good condition with in total 81,142 machine on hours and 14,393 cutting hours. The machine comes with a LASAG FLS 352 A laser (2011), a Keller L-CUT-1-P2-B60-V extraction system (2010) and a KKT OLB 10 SA chiller (2014). See attached the original tech specs as PDF in German.
Overview
- brand: DMG
- year: 2010
- MODEL: SAUER LASERTEC 50
- production hours: 14393
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Immediately
Technical Information - DMG SAUER LASERTEC 50
General Data
- Measurements width: 2875 mm
- Measurements depth: 3440 mm
- Measurements height: 2772 mm
- Machine weight: 5000 kg
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 700 mm
- Z-AXIS Rapid traverse: 30 m/min
- B-AXIS Movement: -90 / +160 MM
- C-AXIS Movement: n x 360 MM
Additional Equipment
- - LASAG FLS 352 A laser (2011)
- - Keller L-CUT-1-P2-B60-V extraction system (2010)
- - KKT OLB 10 SA chiller (2014)
Additional Information
- Technical Machine Benefits:
- - Basic machine: cnc laser precision machine // lasertec 50 precisiontool 500 mm x 500 mm x 700 mm traverse path // cross slide with linear drives // vertical axis (z-axis) with linear guides and ball screw drive // full enclosure (laser protection class 1) with 1 laser safety window // solid machine base frame made of mineral casting // lasag nd:yag laser fls (300 watts) // processing head (100 mm focal length) // motorized expander 1 - 6 times // rod quality
- - Control unit: 3d path control // siemens 840 d solutionline
- - Work table: nc swivel rotary table // highly dynamic and precise // with two torque motors for workpieces up to 200mm diameter // max. Load up to 14 kg
- - Work table options: ks attachment flange // hsk-63 with radial and angular alignment for manual clamping clamping of the customer pallet 200 x 280 mm // pallet requires an hsk-63 holder
- - Camera through beam path with gooseneck led incident light source // collision switch for processing head (3-axis acting)
- - Control options: 5-axis transformation // electronic handwheel // programmable process gas pressure
- - Mg signal light display of 4 machine statuses: "program active", "laser warning", "fault", "setup mode"
- - 3d measuring probe renishaw omp 400 automatically extending
- - Additional laser protection window 297 mm x 210 mm // extraction unit with secondary filter stage // cooling unit for laser fls and linear motors // water-water heat exchanger
- - Dmg powertools
- Qualitative Machine Benefits:
- - Cutting of pcd / cbn blanks in three to five axes: 10x faster compared to wire edm
- - Laser cutting of pcd / cbn inserts in 2d and directly on the shank tool
- - 5-axis precision machine with linear drives in x / y for > 1g acceleration
- - Highly dynamic torque motors in both rotary axes (b- and c-axis)
- - High positioning accuracy of ≤ 8 μm
- - Ccd camera and 3d touch probe for fast set-up
- - User-friendly siemens 840d solutionline with special software features
- - A very good accessibility of the laser for adjustment and maintenance work
- - Machine is currently in production but immediately available
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
