- DMG MORI NTX 1000 milling turning machine

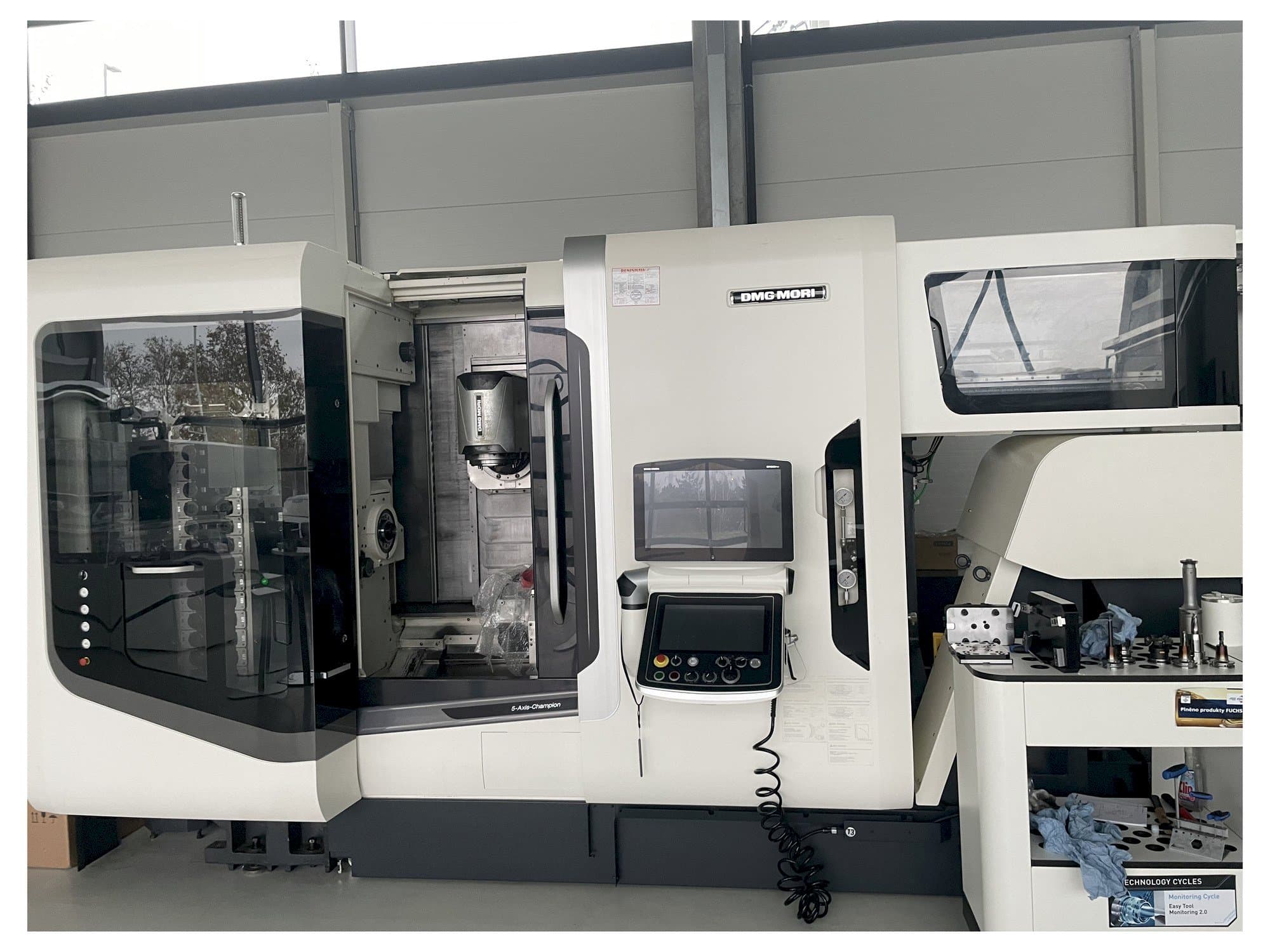

This DMG MORI NTX 1000 milling turning machine was made in Japan in the year 2019. It is controlled by a Fanuc 31i-B5 with CELOS. The machine has a spindle speed of 5000 rpm. This high-quality machine is immediately available.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: NTX 1000
- application type: Milling
- Location: Czech Republic
- machine type: Mill-Turn Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - DMG MORI NTX 1000
General Data
- Machine weight: 11500 kg
Control Unit
- Brand: Fanuc
- Model: 31i-B5 with CELOS
Main drive
- Spindle speed range: 5000 1/MIN
Media
- Main electronic connection: 200 V
- Power consumption: 54 kVA
Additional Information
- Technical Machine Benefits:
- - Spindle passage Ø 73 mm
- - Rod passage: Ø 65 mm
- - Power: 18. 5/18. 5/15 kw (25%ed/30min/cont)
- - Torque: 491/340/286 nm (25%ed/30min/cont)
- - Spindle 2: pass-through clamping cylinder
- - High-speed tool spindle: 20000 rpm
- - Suction pump: 100 l/min
- Qualitative Machine Benefits:
- - The opening and closing of the chuck on spindle 1 and 2 is controlled by two foot switches.
- - High pressure cooling filter system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
