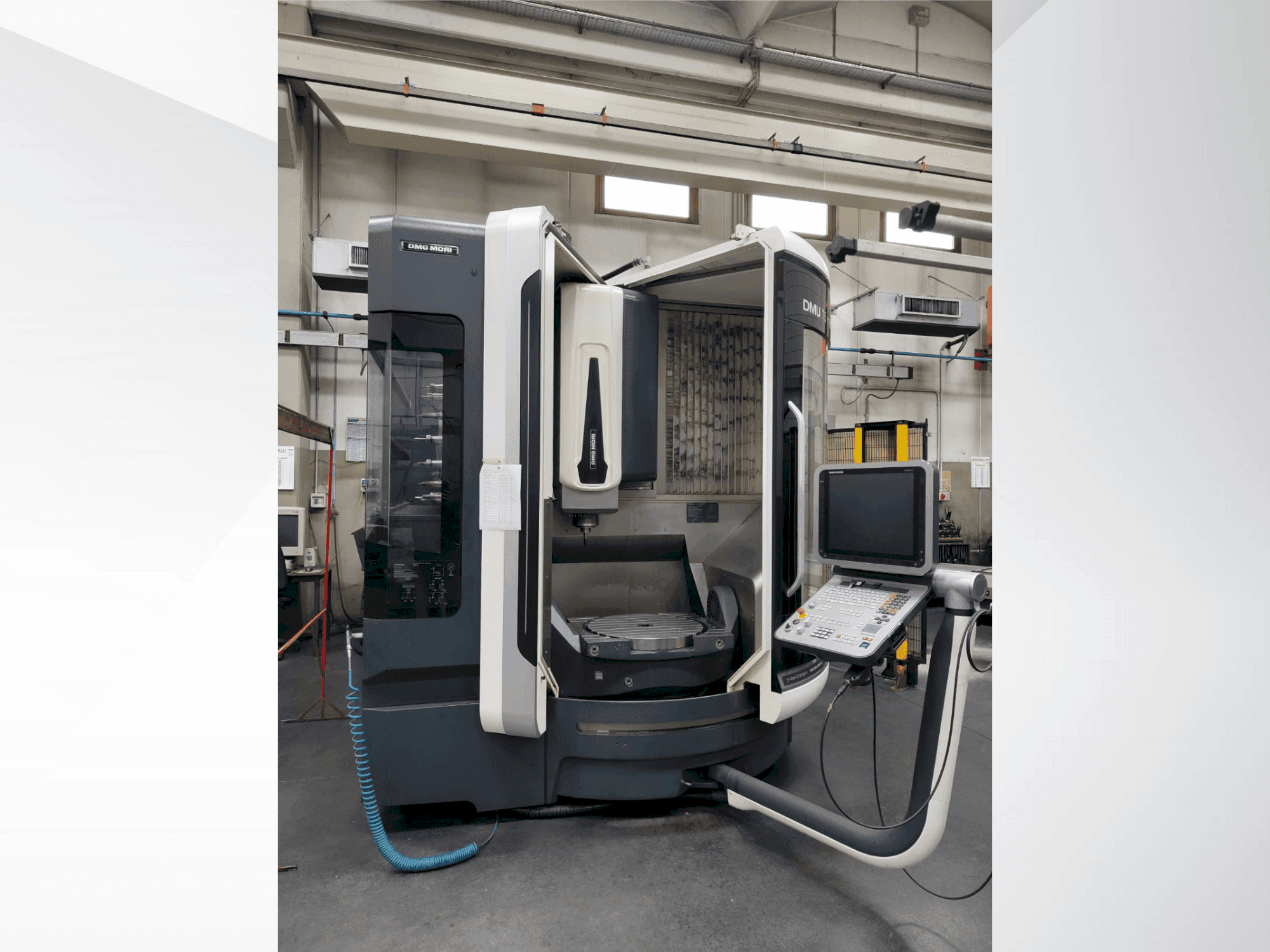

DMG MORI - DMU 75 MonoblockIT-MIL-DMG-2018-00003

Additional Equipment

• - Renishaw infrared measuring probe PP60 optical OMP 60
• - Electronic handwheel

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Tool holder: hsk-a 63 din 69893
  • - Internal coolant supply: 40 bar/23 l/min through spindle axis
  • - External coolant supply: 4 bar/40 l/min
  • - Coolant ring nozzle for vertical spindle head with 15 water nozzles, 5 air nozzles
  • - Chip tray with integrated coolant tank 500 l
  • - Scraper conveyor with internal coolant supply system 600 l
  • - Paper belt filter
  • - Evacuation height: 950 mm
  • - Chip washing in the work area door
  • - Mpc machine protection control
• Qualitative Machine Benefits:
  • - Vertical spindle head
  • - Horizontal tool changer with double gripper
  • - Nc tilting rotary table
  • - Tool measuring device in the work area prod. Blum laser
  • - Measurement of tool length and diameter
  • - 3d quickset
  • - Dmg mori messenger v2
  • - Dmg mori netservice - client
  • - Qualified support via remote diagnosis via the internet
  • - 3d mathematical model in step format for integration with a customer-specific cad system for machine simulation.

Extra information

• - Machine still under power // Working hours 12502 total / 8460 spindle

Payment Terms

• Payment in advance

• Asset Financing
