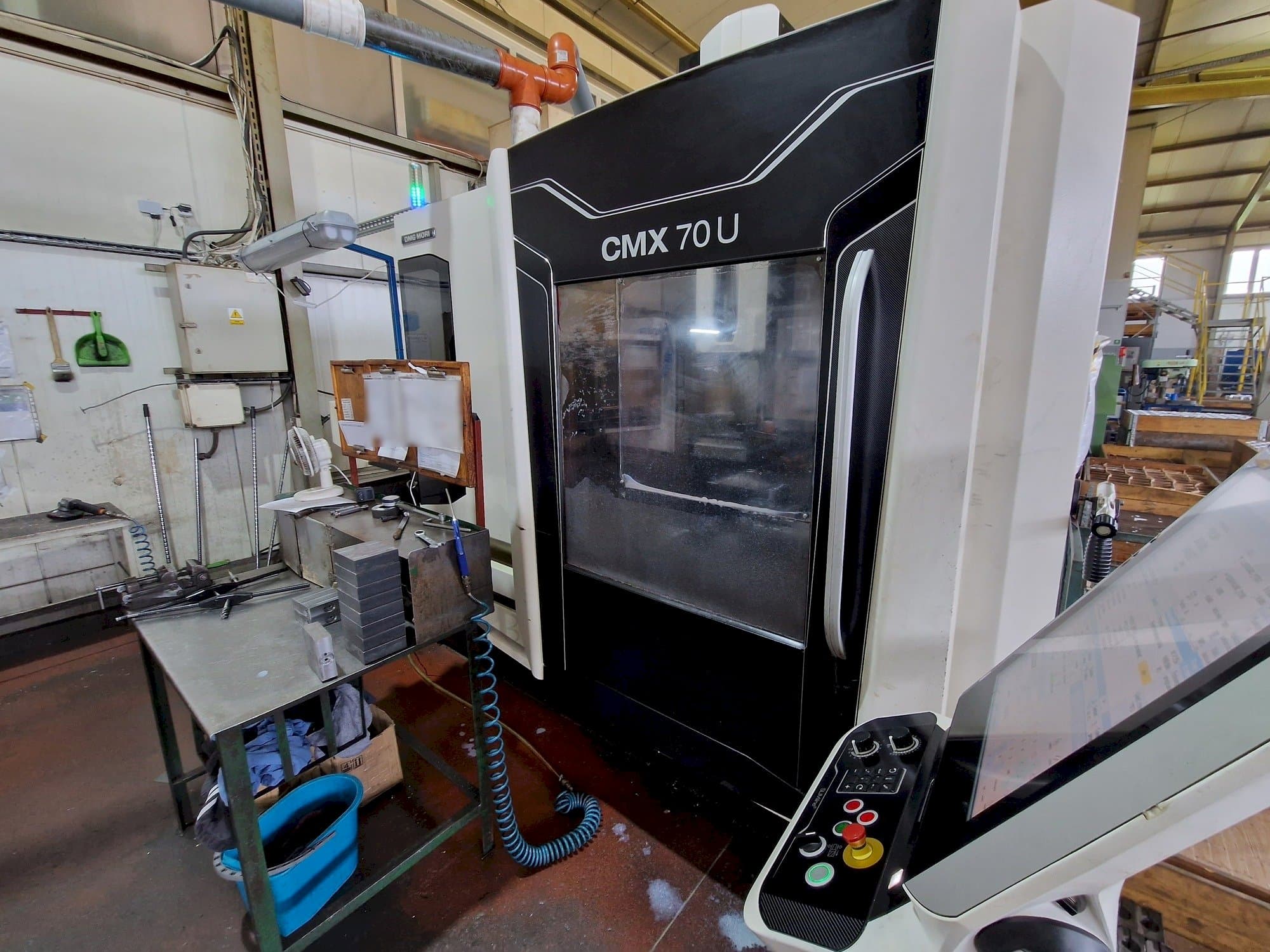

DMG MORI CMX 70 U Milling machine

Show in original language

This DMG MORI CMX 70 U Milling machine was manufactured in the year 2017 in Poland and has 25988 production hours, of which 13719 are spindle hours. It is equipped with a Siemens Slimline® Multi-Touch control unit and has 5 axis. The machine has a spindle speed of 20-12000 rpm, is in very good condition and well maintained.

Overview

brand: DMG MORI
year: 2017
MODEL: CMX 70 U
production hours: 25988
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 70 U

General Data

Measurements width: 2395 mm
Measurements depth: 2594 mm
Measurements height: 2891 mm
Machine weight: 7500 kg

Control Unit

Model: Slimline® Multi-Touch
Brand: SIEMENS

Main drive

Spindle speed range: 20 -12000 1/MIN
Tool taper: SK40 DIN69871
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 520 mm
B-AXIS Movement: (-10° / +95°) MM
C-AXIS Movement: (360°) MM

Workpiece

Workpiece drm: 800 mm
Workpiece weight: 350 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tilt-turn table with digital drives
- - Clamping surface: 800 x 620 mm
- - Max. Workpiece height: 560 mm
- - Fast feed of linear axes 30 m/min.
- - Ac main drive: 13/9 kw (40/100% ed; 83/57 nm).
- - Tool clamp: din 69872
- - Tool magazine: 32-position chain tool magazine with double gripper.
- - Coolant-air switching with m-function (external).
- - Chip conveyor.
- - Internal coolant feed 12 bar.
Qualitative Machine Benefits:
- - Scraper chip conveyor, hopper capacity 300 l (left).
- - Manual flushing of the machining space - gun.
- - Manual control panel (handwheel) - enclosed working space of the machine tool (roof of the cabin).
- - 4-color signal lamp.
- - Direct measuring system for x, y, z axes (measuring scales).
- - Wireless probe for workpiece measurement.
- - Tool measuring probe.
- - The machine is in very good working condition, ready for tests. Full documentation is available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
