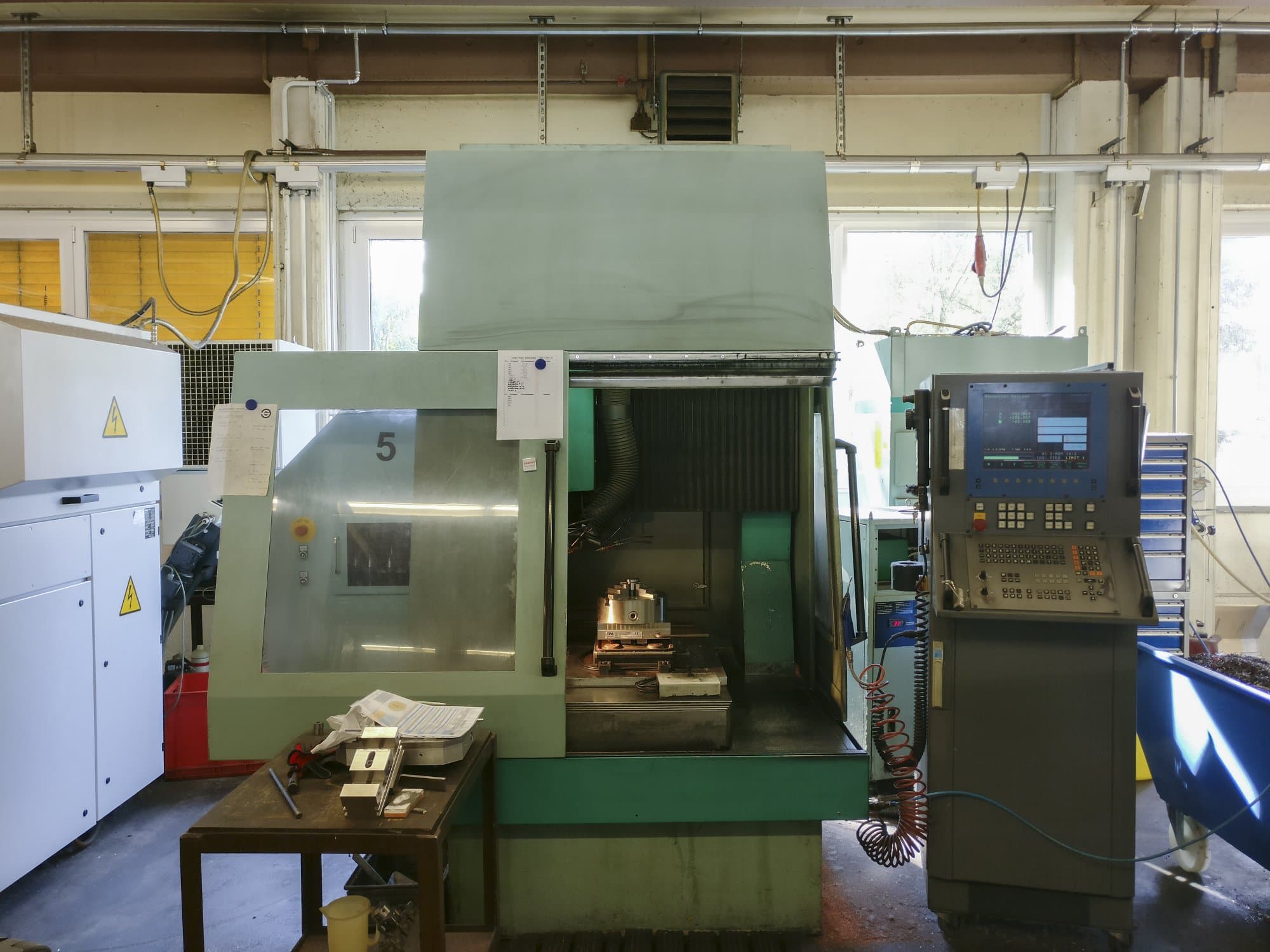

This DIGMA 700 GC Machining Center

Show in original language

This DIGMA 700 GC Machining Center from 1996 has a record of 84855 production hours. Operated through a HEIDENHAIN TNC 426PB Control unit with remote control, this machine includes holders, clutches and a bore as extra equipment. In the past, this 700 GC has handled copper and graphite as main materials, producing moulds and dies along with containers for the Automotive and Medicine Tech industries. As advantages, the model stands out for its spindle speed of up to 30000 1/min and its milling accuracy (up to 10µ). An additional feature is its low maintenance requirements.

Overview

brand: DIGMA
year: 1996
MODEL: 700 GC
production hours: 84855
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DIGMA 700 GC

General Data

Measurements width: 2150 mm
Measurements depth: 1520 mm
Measurements height: 2250 mm
Machine weight: 4000 kg

Control Unit

Model: TNC 426PB
Release: 28077215
Remote control: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 30000 1/min
Spindle motor power: 7 kW

Movement

X-AXIS Movement: 700 mm
X-AXIS Working Feed: 20000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Working Feed: 20000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 20000 mm/min

Workpiece

Workpiece x: 600 mm
Workpiece y: 450 mm
Workpiece z: 100 mm
Workpiece weight: 500 kg

Tools

Slots in storage: 16

Media

Main electronic connection: 400 V / 50 Hz
Air pressure: 7 bar

Additional Equipment

- Holders
- Clutches
- Bore

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
