DAEWOO ACE 500 HP Horizontal Machining Center

Show in original language

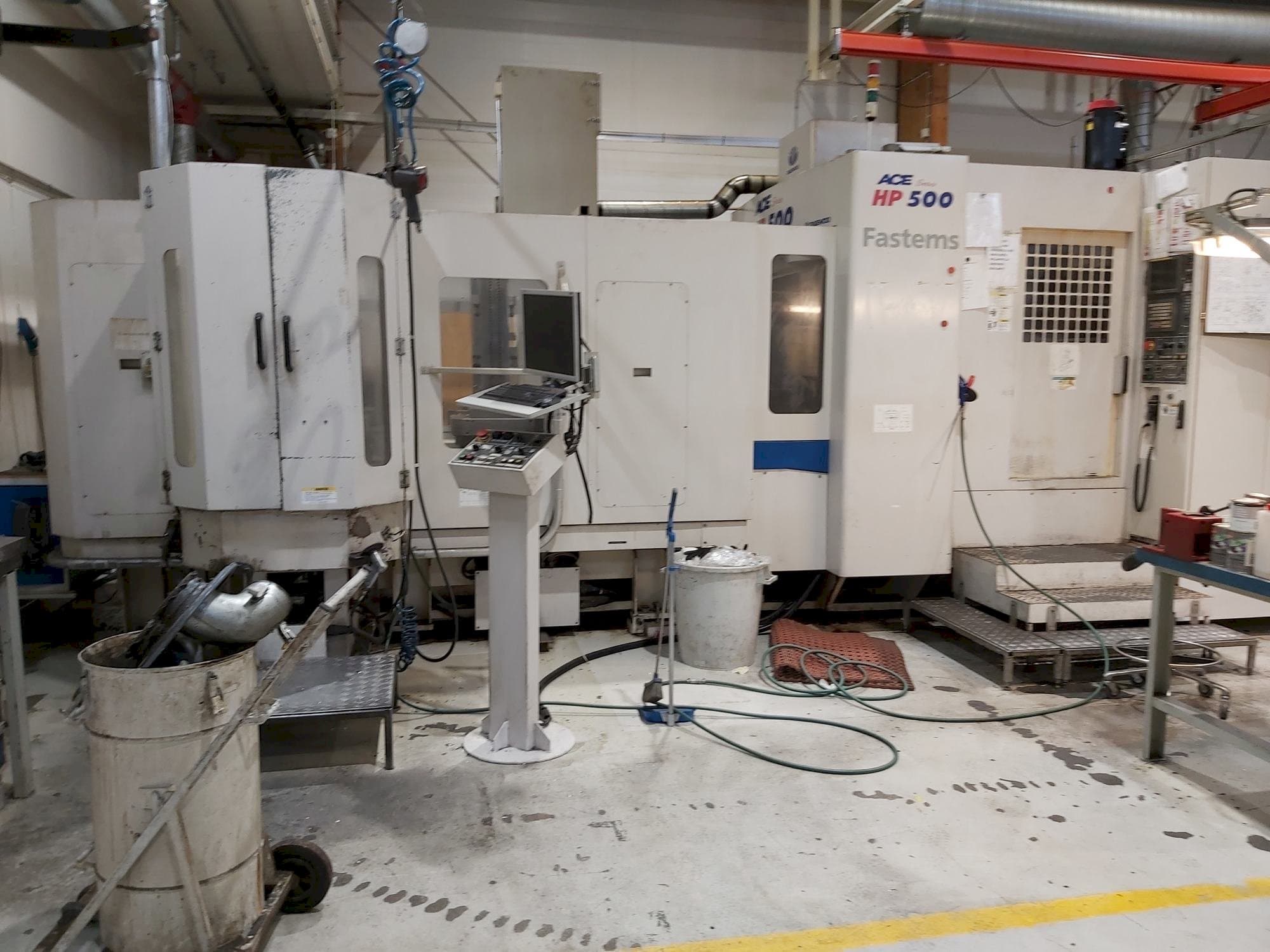

This DAEWOO ACE 500 HP Horizontal Machining Center was manufactured in Korea in 2005. It has been working for 46946 hours. It is operated through a Fanuc control unit. This machine can operate with a spindle speed range up to 6000 rpm. It includes a pallet system with 10 pallets.

Overview

brand: DAEWOO
year: 2005
MODEL: ACE 500 HP
production hours: 46946
application type: Milling
Location: Finland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO ACE 500 HP

General Data

Machine weight: 27600 kg

Control Unit

Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 750 mm

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 196
Type of tool holder: BT50

Media

Main electronic connection: 200/220 V

Additional Equipment

- Pallet system with 10 pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
