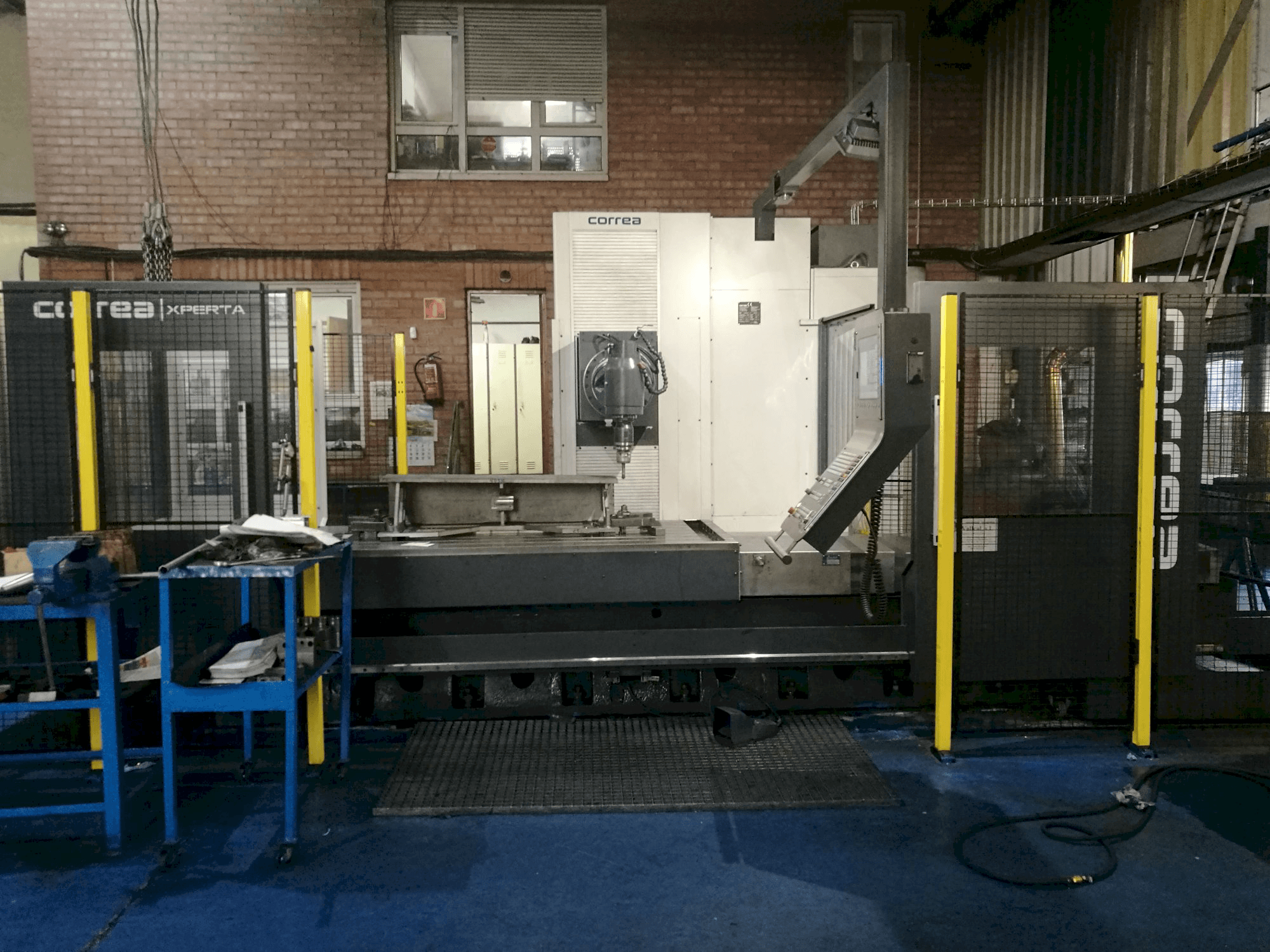

Correa XPERTA 20 Milling Machine

Show in original language

This Correa XPERTA 20 Milling Machine was manufactured in 2016 in Spain and counts with 5022 production hours since then. Controlled through a Heidenhain iTNC 530 Control unit, this machine counts with a spindle speed up to 4000 rpm and a wide working table of 2300mm x 1000mm. It presents perfect conditions, and can be considered as almost new.

Overview

brand: Correa
year: 2016
MODEL: XPERTA 20
production hours: 5022
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa XPERTA 20

General Data

Measurements width: 7608 mm
Measurements depth: 5187 mm
Measurements height: 2803 mm
Machine weight: 15200 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece x: 2300 mm
Workpiece y: 1000 mm
Workpiece z: 1000 mm
Workpiece weight: 4500 kg

Table

Outer length: 2300 mm
Outer width: 1000 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 31 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
