Correa FP 30/35 Milling Machine

Show in original language

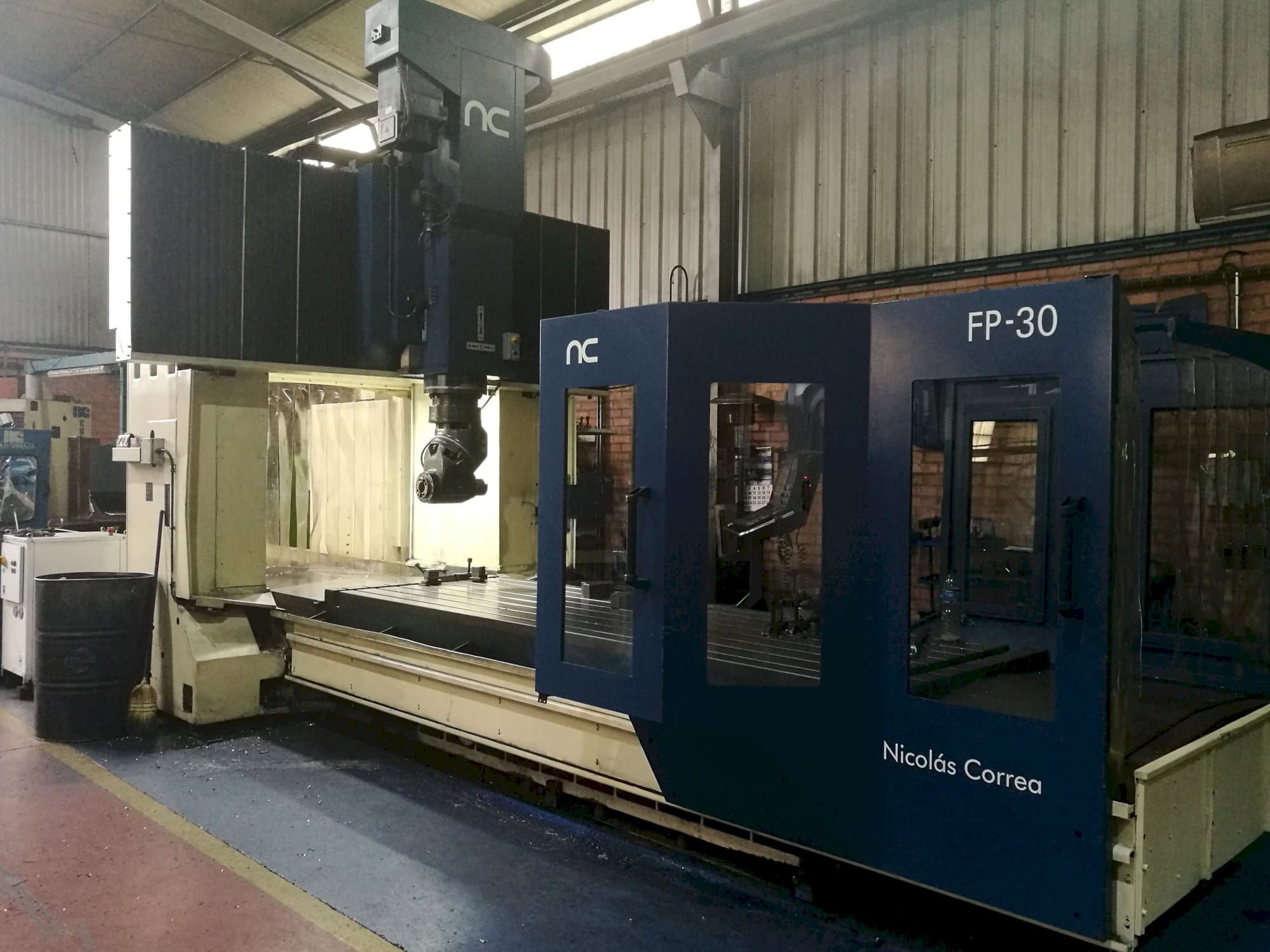

This Correa FP 30/35 Milling Machine from 2003 was produced in Spain and counts with a production record of 47969 hours. Equipped with a Heidenhain TNC 530 Control unit, this machine has been working for the automotive industry during the past with a spindle speed up to 5000 rpm. It stands out due to its big table (2500 x 1250), with its spindles and z-axis motor completely changed.

Overview

brand: Correa
year: 2003
MODEL: FP 30/35
production hours: 47969
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Correa FP 30/35

General Data

Measurements width: 7300 mm
Measurements depth: 3940 mm
Measurements height: 440 mm
Machine weight: 22500 kg

Control Unit

Model: TNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 5000 rpm 1/MIN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 2000 mm
Workpiece z: 800 mm
Workpiece weight: 10000 kg

Table

Outer length: 2500 mm
Outer width: 1250 mm
Number of tslots: 8
Distance between: 125 mm

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
